Structure
Specification
Thin & Light Weight
DN(500x500mm 6.2 KG（±10%）
DN Plus 500x1000mm 10.5 KG（±10%）
Thickness 70 mm
Dual Top Latches Design
Dual top latches on cabinet, quick installation, more secure.
.png)
Magnetic Front Maintenance (Optional)
Optional Magnetic Module
More Efficient Maintenance
.png)

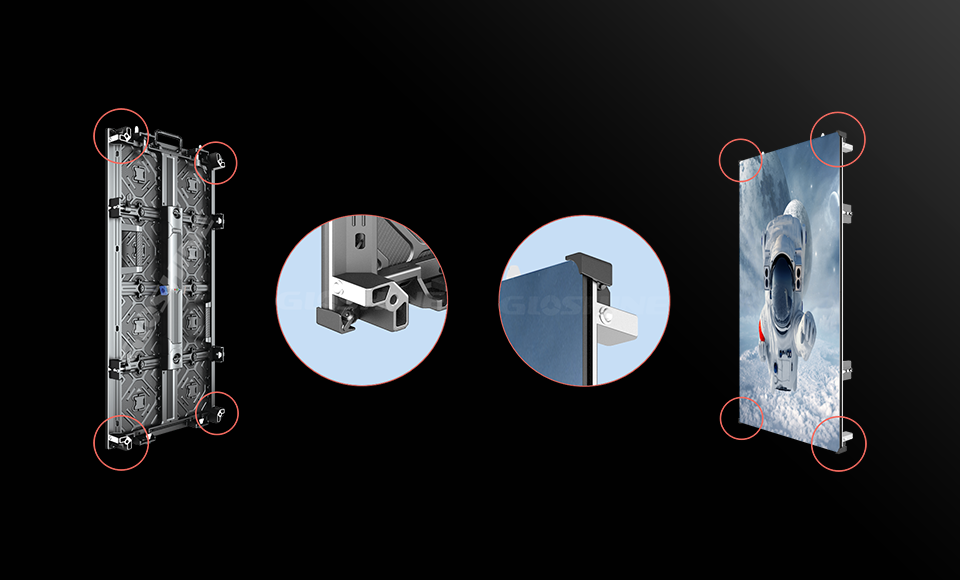

DN Series have 2 types cabinet to match side latch or rotary curved lock.
Protecting corner lamp beads from being damaged by collisions.
.png)
DN & DN Plus Series available splicing for 0° ~±7.5° curved shape, easily radian adjustment, efficiently installation.
Stick the high quality standard for excellent display effect, stable performance, and maintain well image quality even during long hour operating.
.png)
DN Series (Indoor&Outdoor) available for vertical+curved and splicing with flexible screen.
.png)
.png)
| Model No. | DN 1.9（Indoor） | DN 2.6（Indoor） | DN 2.9（Indoor） | DN 3.9（Indoor） |
| Pixel Pitch | 1.95 | 2.6 | 2.97 | 3.91 |
| LED Type | SMD1212 | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density | 262144 pixel/m² | 147456 pixel/m² | 112896 pixel/m² | 65536 pixel/m² |
| Panel Resolution | 256*256 pixel | 192*192 pixel | 168*168 pixel | 128*128 pixel |
| Scan Rate | 1/32 | 1/24 | 1/21 | 1/16 |
| Brightness | 600-800nits | 800-1000nits | 800-1000nits | 800-1000nits |
| Color Temperature | 6500-9500K | |||
| Panel Dimension | 500mmX500mmX70mm | |||
| Panel Weight | Straight Cabinet：6.2kg±10% Bevel Cabinet：7.0kg±10% | |||
| Cabinet Material | Die-Casting Cabinet | |||
| Max Power Consumption | ≤650w/m² | |||
| Ave Power Consumption | ≤325w/m² | |||
| Viewing Angle | H:160° V:140° | |||
| Refresh Rate | 3840Hz/7680Hz | |||
| Gray Scale | 14-16bit | |||
| Working Voltage | AC100-240V～50-60Hz or AC200-240V～50-60Hz | |||
| Max Stacking/Hanging | 10m | |||
| IP Rating | IP30 | |||
| Curve | Optional | |||
| Lifetime | 50000h | |||
| Operating Temp/Humidity | -20℃～+45℃；10%～60%RH | |||
| Storage Temp/Humidity | -40℃～+60℃；10%～60%RH | |||
| Model No. | DN Plus 1.9（Indoor） | DN Plus 2.6（Indoor） | DN Plus 2.9（Indoor） | DN Plus 3.9（Indoor） |
| Pixel Pitch | 1.95 | 2.6 | 2.97 | 3.91 |
| LED Type | SMD1212 | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density | 262144 pixel/m² | 147456 pixel/m² | 112896 pixel/m² | 65536 pixel/m² |
| Panel Resolution | 256*512 pixel | 192*384 pixel | 168*336 pixel | 128*256 pixel |
| Scan Rate | 1/32 | 1/24 | 1/21 | 1/16 |
| Brightness | 600-800nits | 800-1000nits | 800-1000nits | 800-1000nits |
| Color Temperature | 6500-9500K | |||
| Panel Dimension | 500mmX1000mmX70mm | |||
| Panel Weight | Straight Cabinet：10.5kg±10% Bevel Cabinet：11.3kg±10% | |||
| Cabinet Material | Die-Casting Cabinet | |||
| Max Power Consumption | ≤650w/m² | |||
| Ave Power Consumption | ≤325w/m² | |||
| Viewing Angle | H:160° V:140° | |||
| Refresh Rate | 3840Hz/7680Hz | |||
| Gray Scale | 14-16bit | |||
| Working Voltage | AC100-240V～50-60Hz or AC200-240V～50-60Hz | |||
| Max Stacking/Hanging | 10m | |||
| IP Rating | IP30 | |||
| Curve | Optional | |||
| Lifetime | 50000h | |||
| Operating Temp/Humidity | -20℃～+45℃；10%～60%RH | |||
| Storage Temp/Humidity | -40℃～+60℃；10%～60%RH | |||
