Vertical Splicing & Cube Shapes
Dual Top Locks Design
Dual top locks on cabinet, quick installation, more secure.
Stable Performance
Magnetic Front Maintenance
Magnetic Module
More Efficient Maintenance

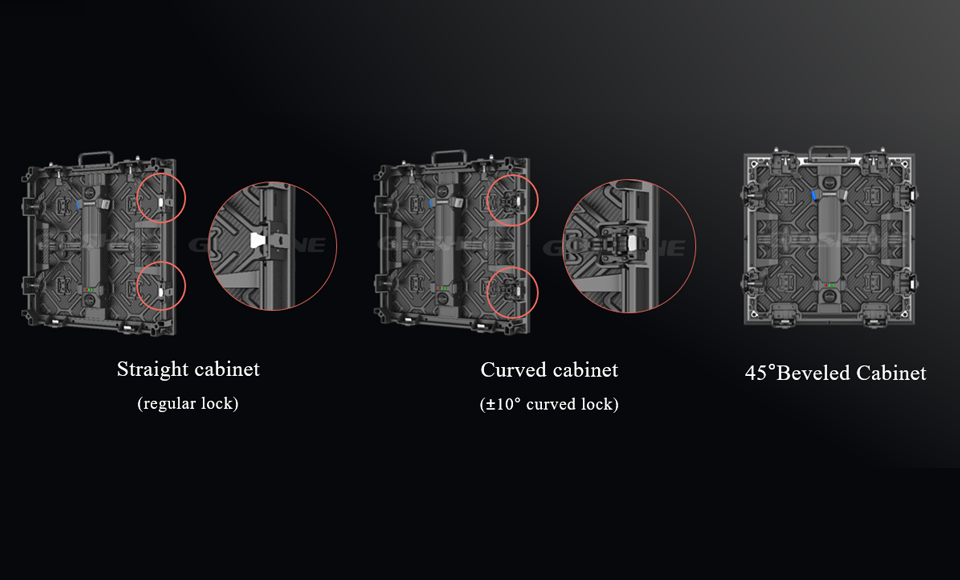

DN series has 3 types of cabinets: straight cabinet, curved cabinet, and 45° beveled cabinet.

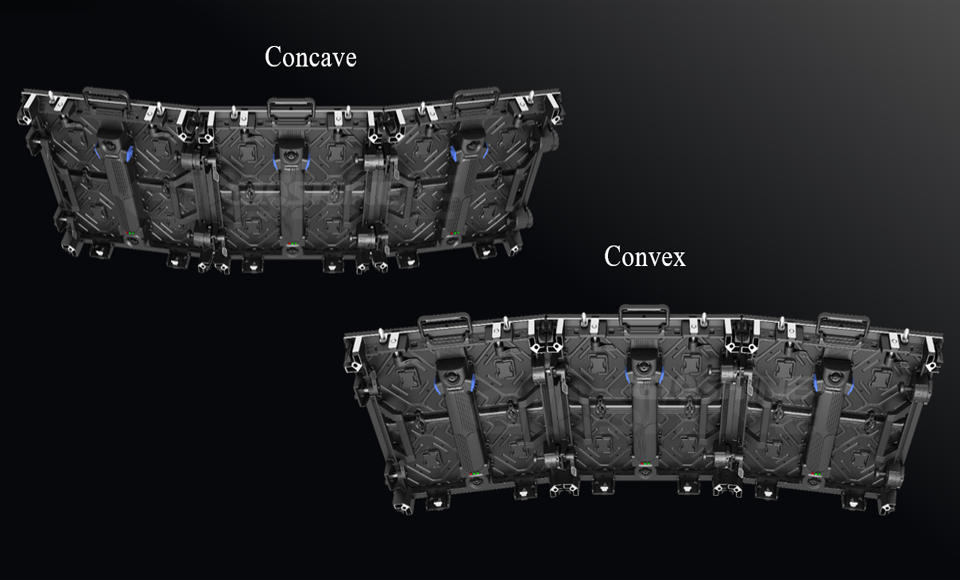

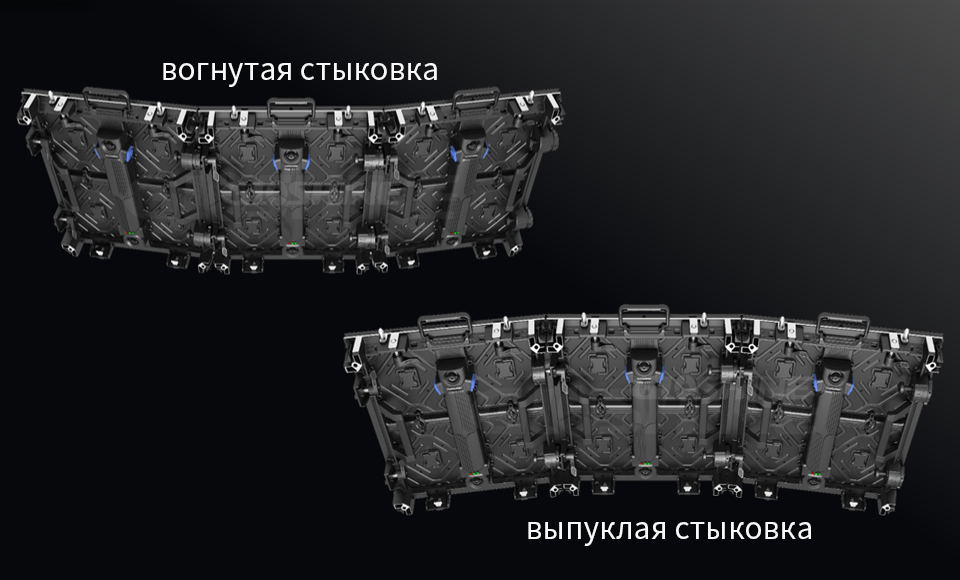

DN & DN Plus Series available splicing for curved shape, easily radian adjustment, efficiently installation.
DN Series available for vertical+curved splicing with flexible screen.
.png)

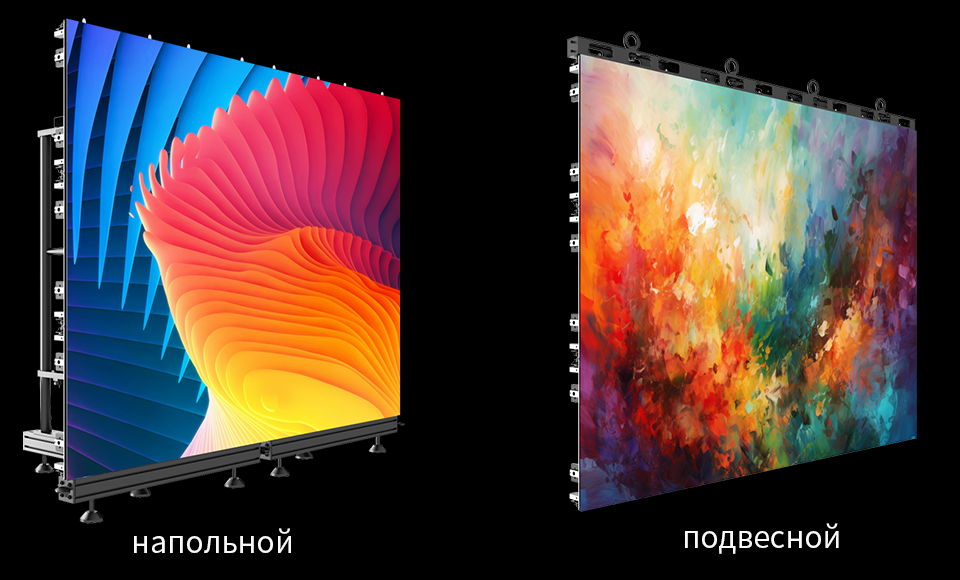

Maximum Stacking and Hanging Height 10 Meters.
| Application Scenario | Indoor | ||||||
| Model No. | DN1.2 | DN1.5 | DN1.9 | DN1.9 | DN/DN PLUS 2.6 | DN/DN PLUS 2.9 | DN/DN PLUS 3.9 |
| Pixel Pitch | 1.25mm | 1.5mm | 1.9mm | 1.9mm | 2.6mm | 2.9mm | 3.9mm |
| LED Type | SMD1010 | SMD1212 | Two in one | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Packaging techinque | GOB/HOB | GOB/HOB | SMD | GOB/HOB | SMD | SMD | SMD |
| Pixel Density | 640000 pixel/㎡ | 409600 pixel/㎡ | 262144 pixel/㎡ | 262144 pixel/㎡ | 147456 pixel/㎡ | 112896 pixel/㎡ | 65536 pixel/㎡ |
| Panel Dimension | DN:500mm*500mm*76mm | DN:500mm*500mm*76mm | DN:500mm*500mm*76mm | DN:500mm*500mm*76mm | DN Plus:500mm*1000mm*76mm DN:500mm*500mm*76mm |
DN Plus:500mm*1000mm*76mm DN:500mm*500mm*76mm |
DN Plus:500mm*1000mm*76mm DN:500mm*500mm*76mm |
| Panel Resolution | DN:400*400 pixel | DN:320*320 pixel | DN:256*256 pixel | DN:256*256 pixel | DN Plus:192*384 pixel DN:192*192 pixel |
DN Plus:168*336 pixel DN:168*168 pixel |
DN Plus:128*256 pixel DN:128*128 pixel |
| Scan Rate | 1/40 | 1/32 | 1/32 or 1/16 | 1/32 or 1/16 | 1/24 or 1/16 or 1/8 | 1/21 | 1/16 |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 800-1000nits | 800-1000nits | 800-1000nits |
| Refresh Rate | 3840Hz/7680Hz | ||||||
| Gray Scale | 14-16Bit | ||||||
| Color Temperature | 6500-9500K | ||||||
| Panel Weight | DN:7.2kg±10% DN Plus:12.2kg±10% GOB：DN:7.5kg±10% DN Plus:12.7kg±10% Redundant:8kg±10% |
||||||
| Cabinet Material | Die-Casting Cabinet | ||||||
| Max Power Consumption | ≤580w/㎡ | ||||||
| Ave Power Consumption | ≤290w/㎡ | ||||||
| Viewing Angle | H:160°/V:140° | ||||||
| Working Voltage | AC200-240V~50/60Hz or AC100-240V~50/60Hz | ||||||
| IP Rating | IP30 | ||||||
| Serviceability | Front/Rear | ||||||
| Curve | Curved cabinet/45° beveled cabinet（only ±10° curved lock）：-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° 90° lock or 90° connector plate can form a right angle. |
||||||
| Max Stacking/Hanging | 10m | ||||||
| Lifespan | 50000H | ||||||
| Operating Temp/Humidity | -20℃~+45℃；10%~60%RH | ||||||
| Storage Temp/Humidity | -40℃~+60℃；10%~60%RH | ||||||
| Processing platform | Novastar/Magnimage/Colorlight | ||||||
| Product Certification | MET/CE/EMC | ||||||
