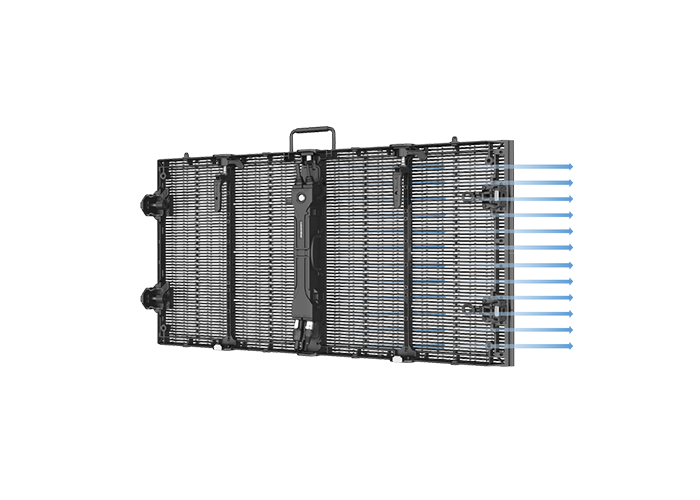

Vanish series brings the revolution of the transprent led display in the industrial: High contrast ratio up to 6000:1; Transparency rate is over 35%, Encourages the creativity in the stage design .
Integrated power box makes the replacement and maintenance easy and efficient.

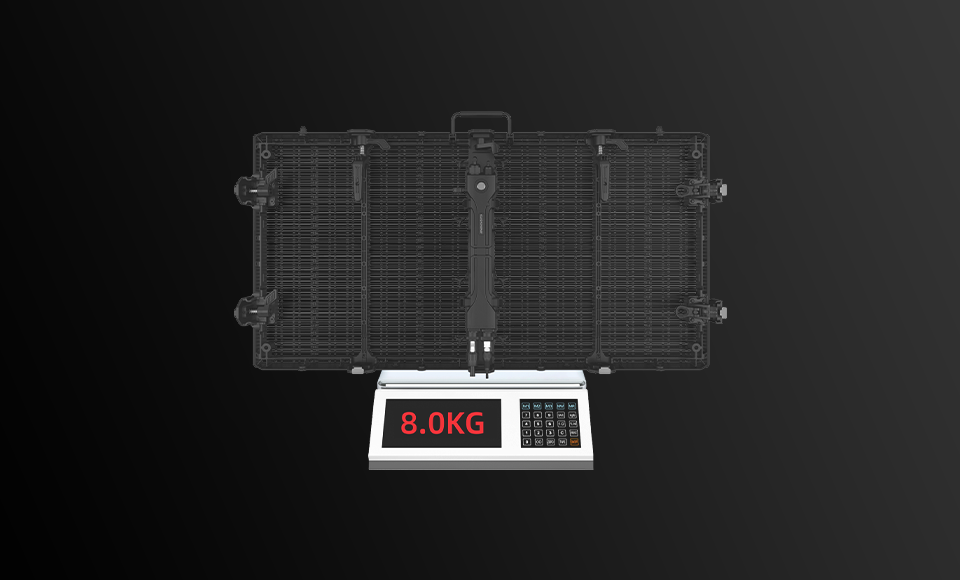

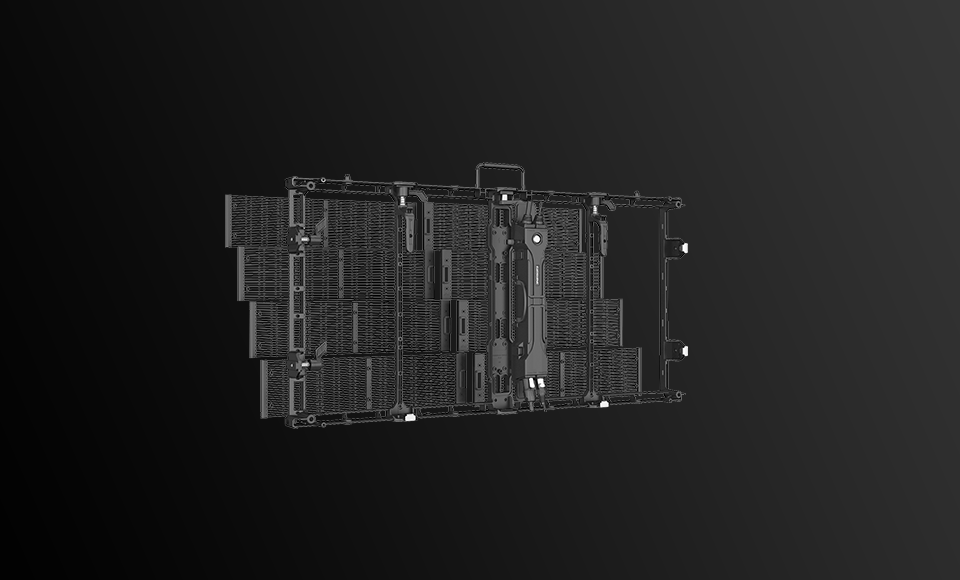

Vanish Series Measure 500x1000mm cabinet only 8.0kg. Speical module design ensures extreme durability for easy transportation and quick installation.

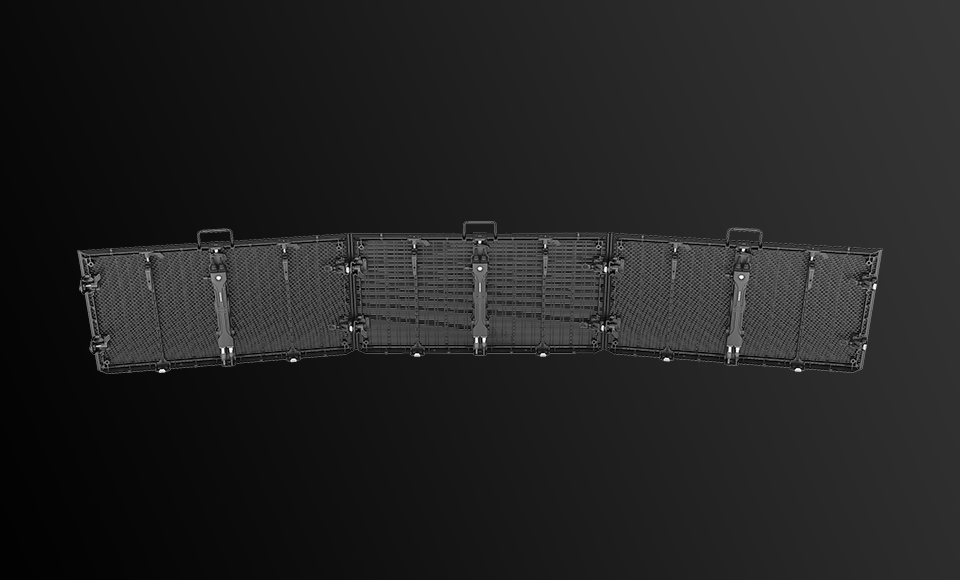

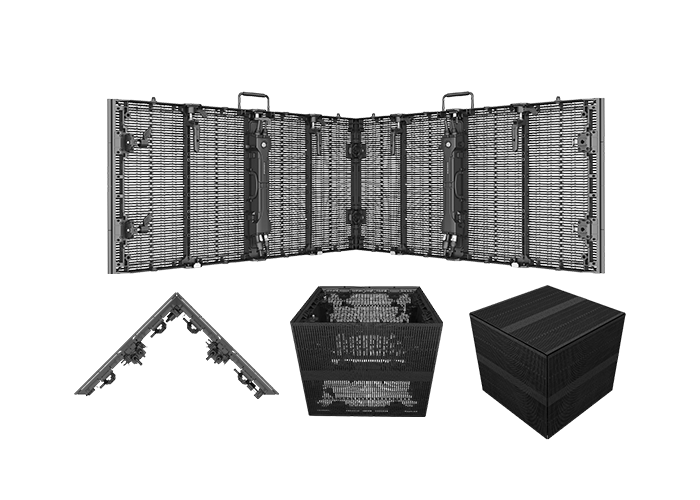

Flexible and easy to install in both concave and canvex configuration.
|
Model No. |
VA3.91-7.81 |
VA8.93 |
|
Pixel Pitch |
3.91-7.81mm |
8.93-8.93mm |
|
LED Type |
SMD1921 |
SMD1921 |
|
Pixel Density |
32768 pixel/㎡ |
12544 pixel/㎡ |
|
Panel Resolution |
256*64 pixel |
112*56 pixel |
|
128*64 pixel |
56*56 pixel |
|
|
Scan Rate |
1/16 or 1/8 |
1/4 |
|
Brightness |
General Brightness for Black LEDs:1200-1500nits |
General Brightness for Black LEDs:1200-1500nits |
|
Transparent rate |
About 35% |
About 35% |
|
Color Temperature |
6500-9500K |
|
|
Panel Dimension |
VA mini:500mm*500mm*78mm VA:1000mm*500mm*78mm |
|
|
Panel Weight |
VA mini:5.1kg±10% VA:8.0kg±10% |
|
|
Cabinet Material |
Die casting Aluminium |
|
|
Max Power Consumption |
≤360w/㎡ |
|
|
Ave Power Consumption |
≤120w/㎡ |
|
|
Viewing Angle |
H:160°V:140° |
|
|
Refresh Rate |
3840Hz/7680Hz |
|
|
Gray Scale |
14-16bit |
|
|
Working Voltage |
AC100-240V~50/60Hz or AC200-240V~50/60Hz |
|
|
IP Rating |
Front IP65,RearIP54 |
|
|
Protection technology |
Potting process with pre- and post-process protection |
|
|
Curve |
Curved cabinet:-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° |
|
|

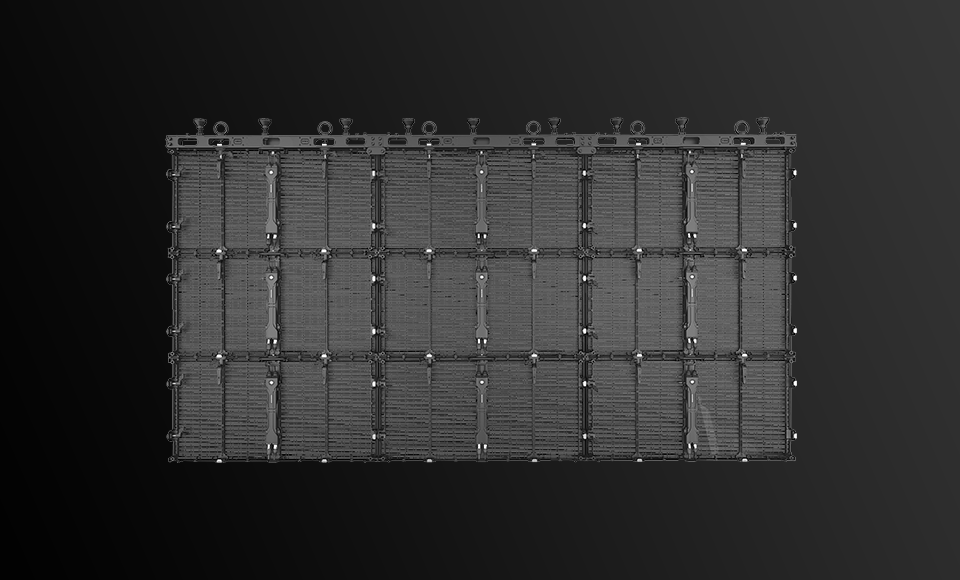

Max Stacking/Hanging |
10m |
|
|
Lifetime |
50000h |
|
|
Operating Temp/Humidity |
-20℃~+40℃；10%~90%RH |
|
|
Storage Temp/Humidity |
-40℃~+60℃；10%~60%RH |
|
