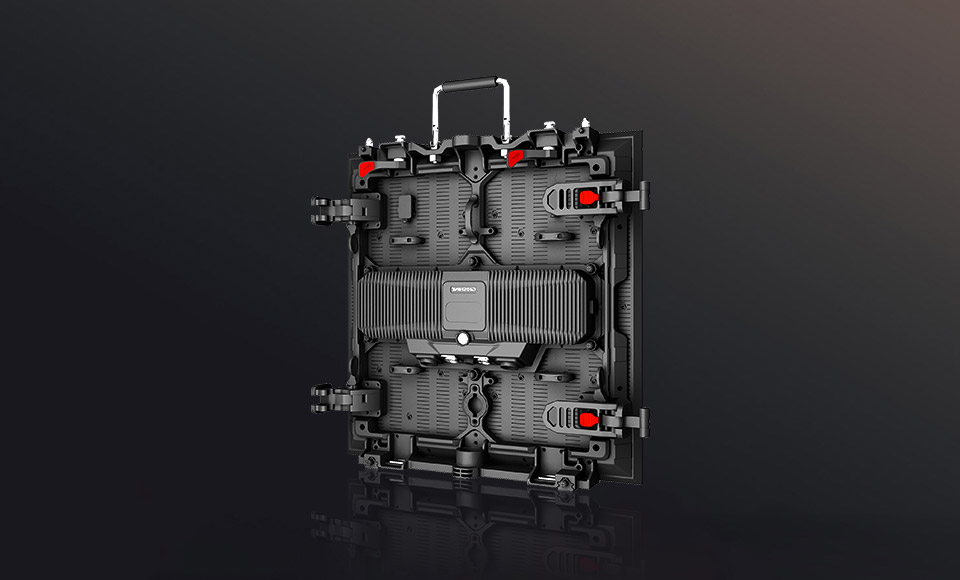

Based on the calssic ZM series,ZM Pro series has more functions after upgrading

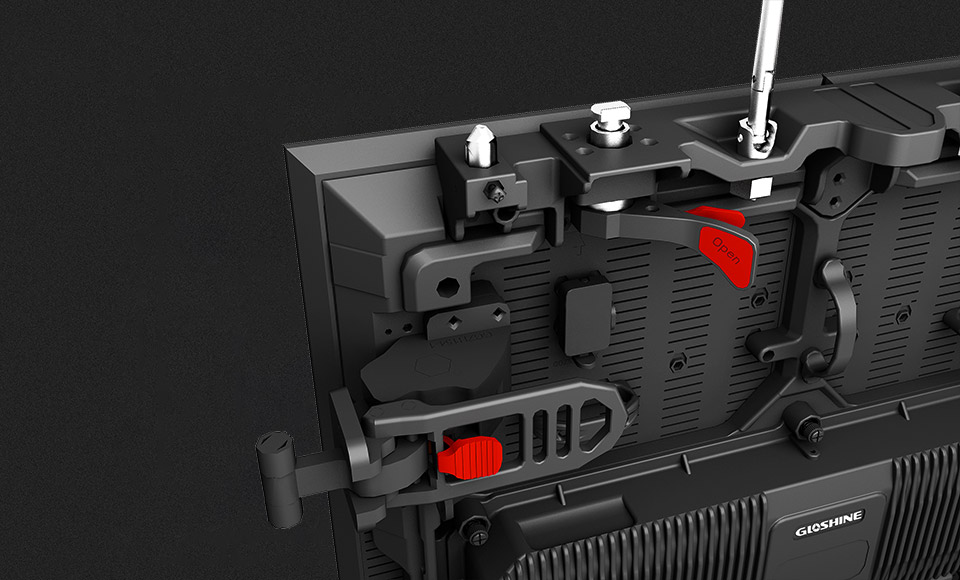

Left and Right Tightening Mechanism
Wave wheel arc lock

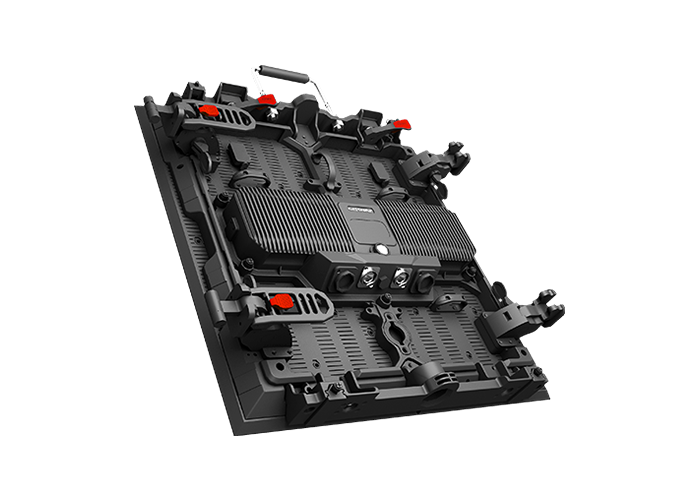

Collision avoidance design

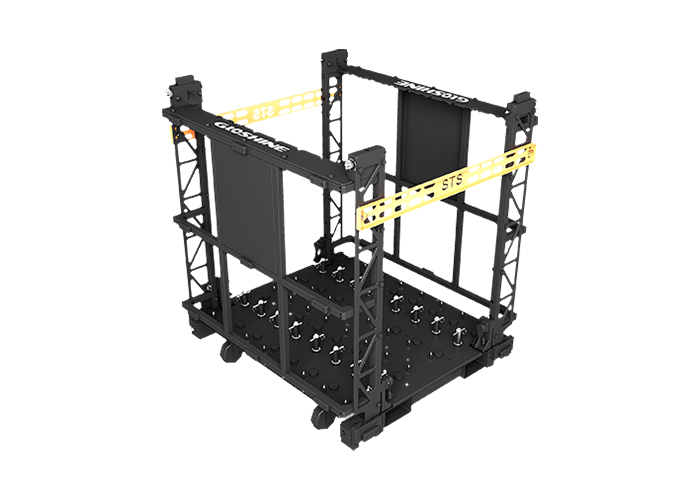

Box Handle + Lifting Lock

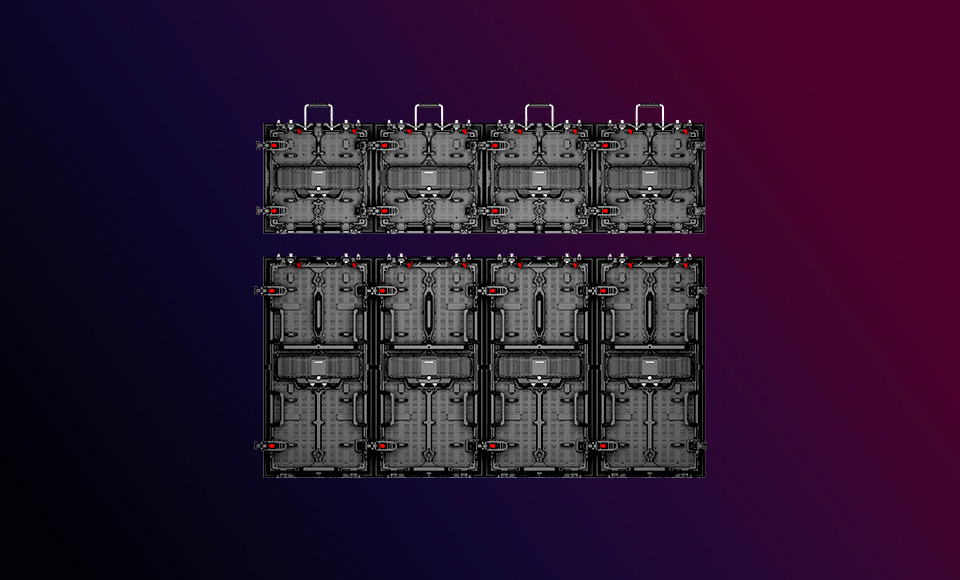

Self-hanging upper and lower lock, single-person assembly,
save time and labor.

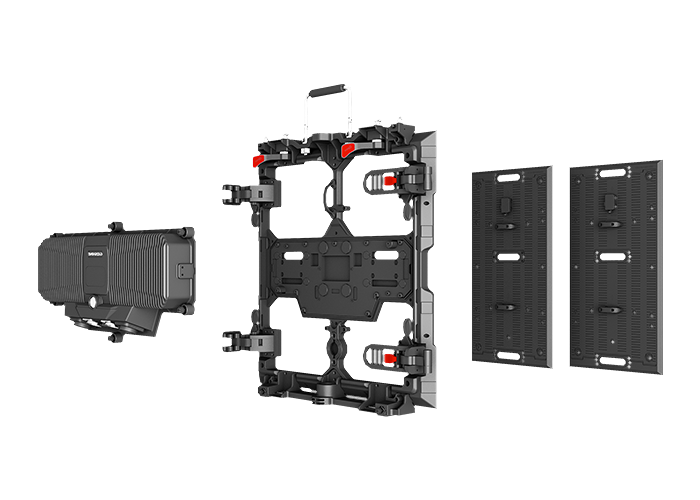

Store hardware program and correction data on each module;
Read back at any time to facilitate customer use and maintenance.
品番 | Zebra mini 3.91(Indoor) | Zebra mini 4.81(Outdoor) | Zebra mini 6.94(Outdoor) |
ピクセルピッチ | 3.91mm | 4.81mm | 6.94mm |
LED | SMD2020 | SMD1921(High frame) | SMD1921(High frame) |
ドット密度 | 65536pixel/㎡ | 43264pixel/㎡ | 20736pixel/㎡ |
輝度 | 800-1100nits | 2000-2500nits 4000-4500nits |
800-1200nits 2000-2500nits |
色温度 | 6500-9500k | ||
ドライブモード | 1/16 | 1/13 | 1/9 |
パネルサイズ(W×H×D) | 500mm×500mm×66mm / 19.7"×19.7"×2.6" | ||
パネル解像度 | 128×128pixel | 104×104pixel | 72×72pixel |
パネル重量 | 6.50kg/14.33lb | 7.00kg/15.43lb | 7.00kg/15.43lb |
パネル材質 | アルミダイキャスト | ||
最大消費電力 | ≦650w/㎡ | ≦700w/㎡ | ≦700w/㎡ |
平均消費電力 | ≦325w/㎡ | ≦350w/㎡ | ≦350w/㎡ |
視野角 | H:160º V:140º | H:140º V:120º | H:140º V:120º |
リフレッシュレート | 1920Hz | ||
カラー階調処理 | 14-16bit | ||
防護レベル | IP30 | Front IP65,Rear IP54 | Front IP65,Rear IP54 |
動作湿度 | 10%-60%RH | 10%-90%RH | 10%-90%RH |
動作温度 | -20℃~+45℃ | ||
最大スタック | 15pcs | ||
最大吊り下げ | 15pcs | ||
曲面設置(可選択) | -7.5°~+7.5° | ||
寿命 | 50,000 hrs | ||
保管温度/湿度 | -40℃~+60℃;10%-60%RH |
