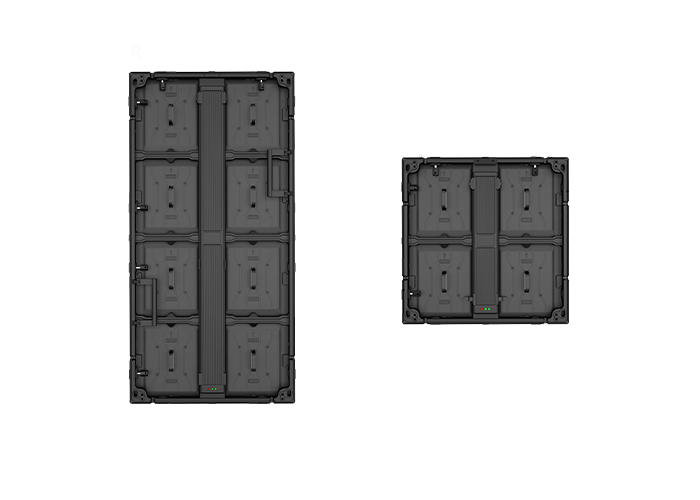

Lightweight

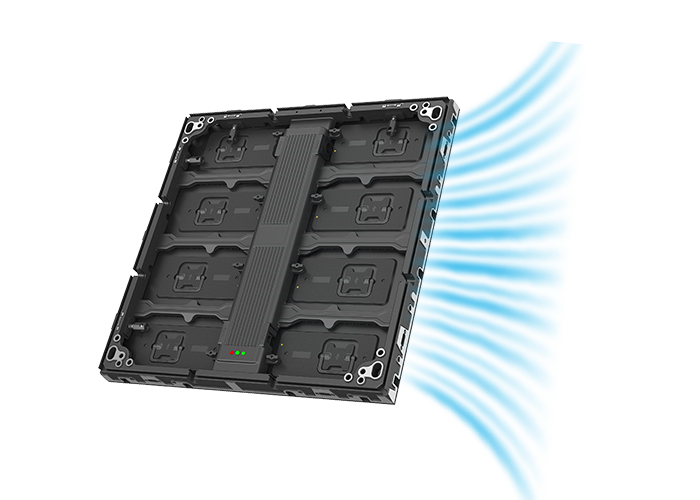

Effective Heat Dissipation
The die-casting aluminum panel facilitates rapid heat dissipation, significantly reducing the operating temperature of internal components, effectively slowing down aging,ensuring long-term stable operation of the LED display, and extending its lifespan.

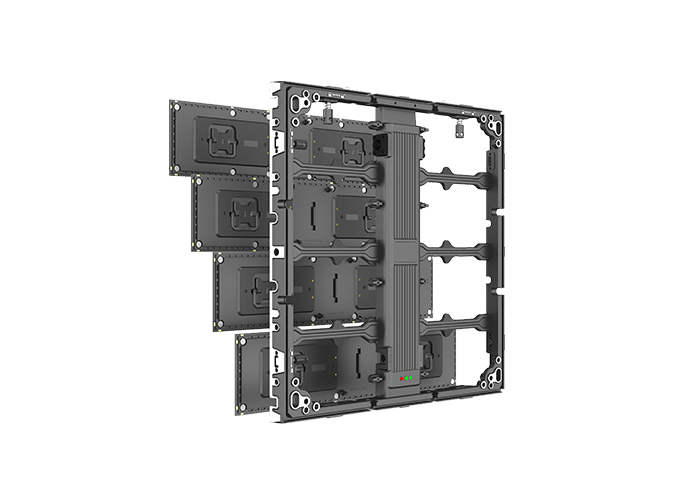

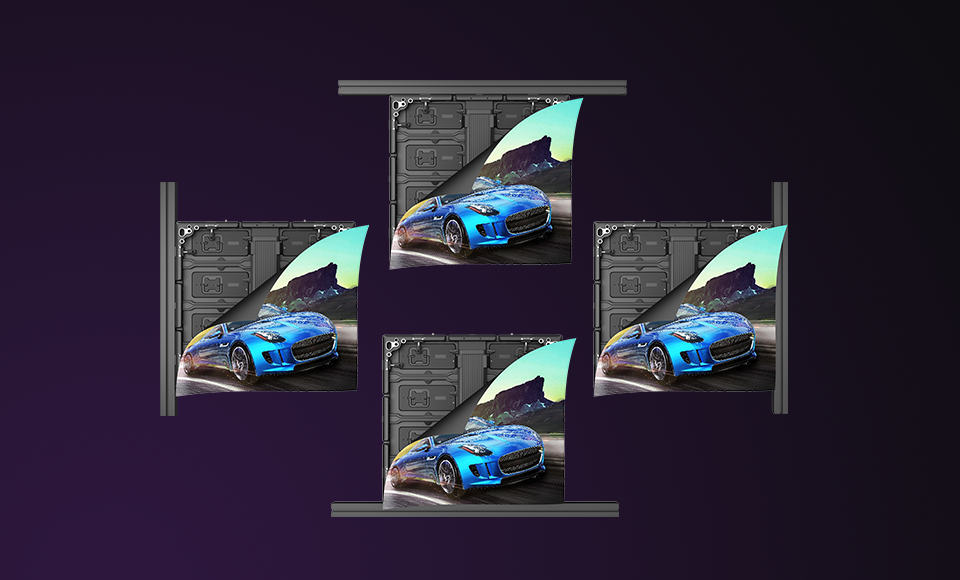

Full Front Maintenence
quick replacement of magnetic modules, power supply,receiving card and hub card from the front.

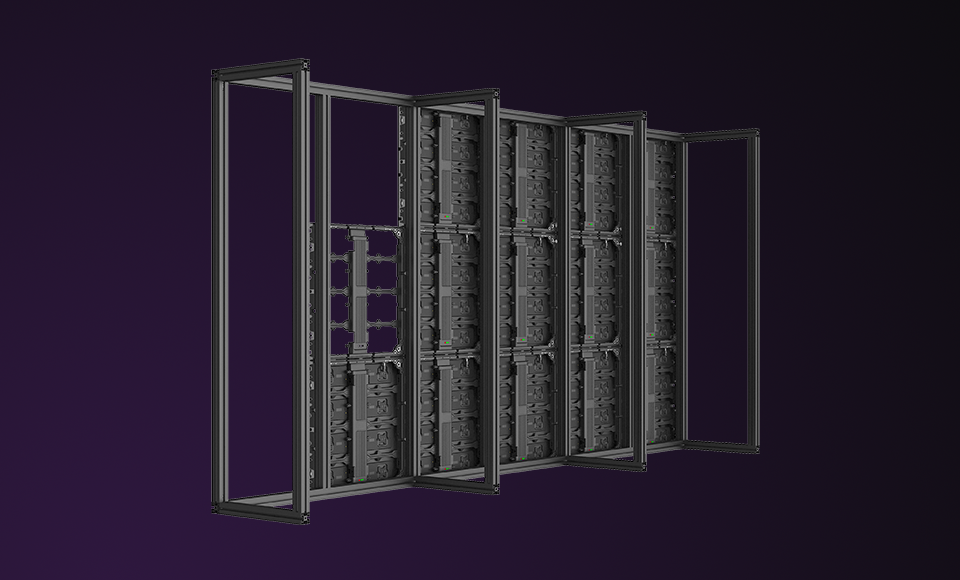

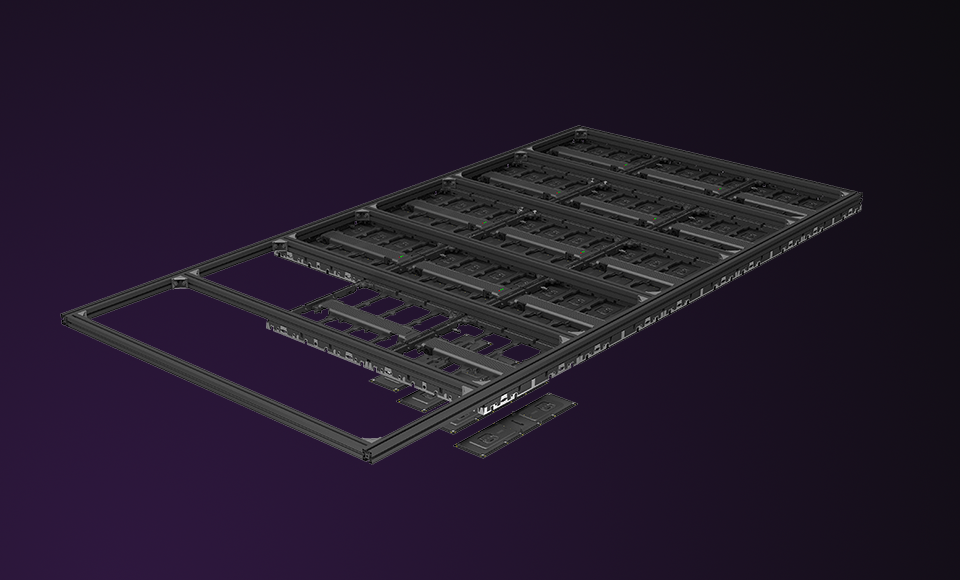

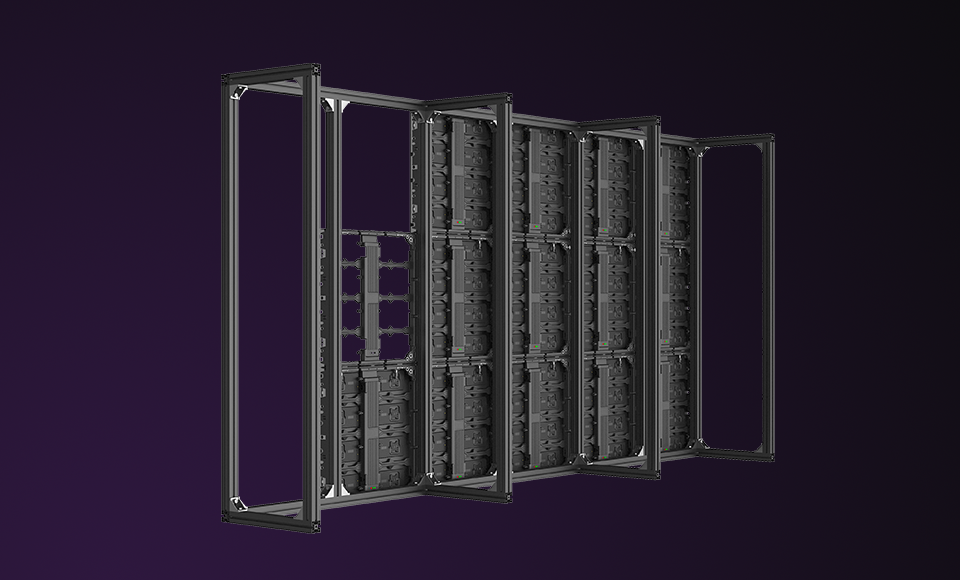

Perfectly compatible with the 40*40mm aluminum profiles, significantly simplifying the installation process for exhibition venues and temporary sites, enabling rapid assembly and disassembly.
Profile for stacking installation-Interior Angle Steel.

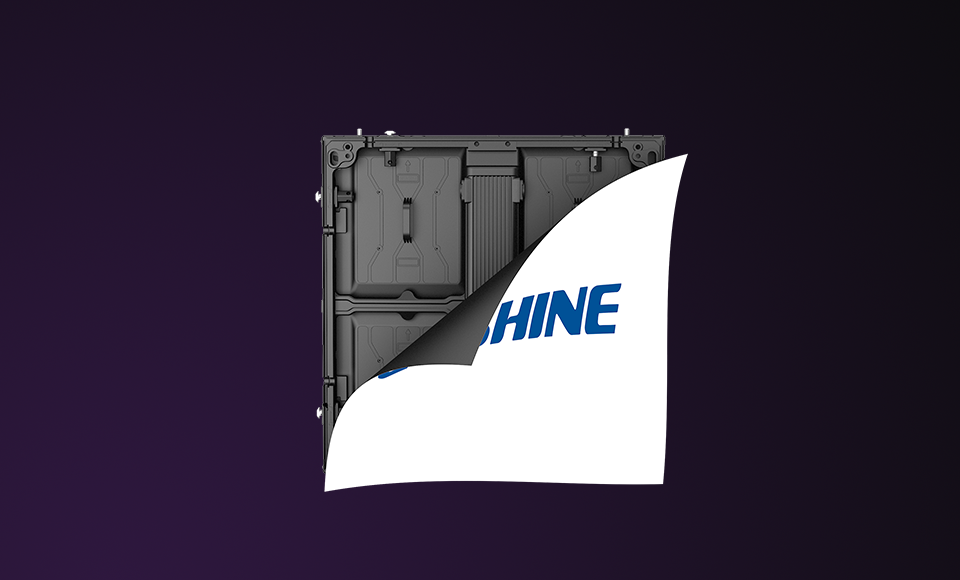

Offers customizable backplates to effectively conceal cabinet cables, ensuring a unified visual style and strengthening brand identity.
|
Model No. |
RA Ⅱ1.5(Indoor) |
RAⅡ1.9(Indoor) |
RA/RA PLUS Ⅱ2.6(Indoor) |
RA/RA PLUS Ⅱ2.9(Indoor) |
|
Pixel Pitch |
1.57mm |
1.98mm |
2.6mm |
2.97mm |
|
LED Type |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2020 |
|
Packaging techinque |
HOB/GOB |
HOB/GOB |
SMD |
SMD |
|
Pixel Density |
407040/㎡ |
254016/㎡ |
147456/㎡ |
112896/㎡ |
|
Color Temperature |
6500-9500k |
6500-9500k |
6500-9500k |
6500-9500k |
|
Scan Rate |
1/53 |
1/42 |
1/32 |
1/28 |
|
module Dimension |
500*125 |
500*125 |
500*125 |
500*125 |
|
Panel Dimension |
500*500*40mm |
RA Ⅱ 500*500*40mm |
RA Ⅱ 500*500*40mm |
RA Ⅱ 500*500*40mm |
| Please contact our sales for detailed product information or leave messages for us, we will respond soon. | ||||
