LE and LE mini
LE Series
LE Series won iF DESIGN AWARD 2020, fully upgraded in 2023
Mutiple Cabinets Option

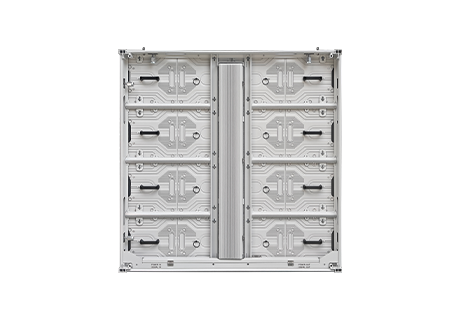

•Straight & curved cabinets optional for LE & LE Mini
•Curved cabinet supports curved splicing（-10 °~10 °）

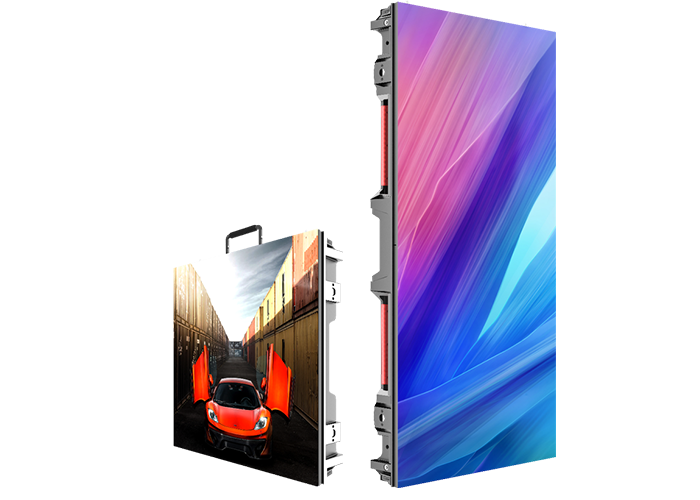

Stable Performance
• LE Series LED displays offer unparalleled flexibility for any event, providing both convex and concave curving capabilities for seamless deployment and adaptable configurations.
• H: 160°, V: 140° , Shadowless Full-frame.
• Ensures great visibility for your LED screen on stage.
• The optional wind-bracing frame for LE cabinet makes stacking installation easy & convenient. Friendly for big festival events hanging up for wind resistance. Essential for LED stage screen rental and concert LED wall setups.
• Transport Dolly Package Available.
• 2×6 panels / Dolly.
• Improve installation efficiency. Streamlines logistics for stage LED display rental.
| Model No. | LE2.9(indoor) | LE2.9(outdoor) | LE3.9(outdoor) | LE4.8(outdoor) |
| Plxel pitch | 2.9mm | 2.9mm | 3.9mm | 4.8mm |
| LED type | SMD2020 | SMD1415 | SMD1921 | SMD1921 |
| Packaging method | / | / | / | |
| Pixel density | 112896 pixel/㎡ | 112896pixel/㎡ | 65536 pixel/㎡ | 43264 pixel/㎡ |
| Panel resolution (small) |
168*168 pixel | 168*168 pixel | 128*128 pixel | 104*104 pixel |
| Panel resolution (big) |
168*336 pixel | 168*336 pixel | 128*256 pixel | 104*208 pixel |
| Scan rate | 1/21 | 1/21 | 1/16 or 1/8 | 1/13 or 1/7 |
| Brightness | 800-1200nits | 2800-3500nits | 3500-4500nits | 4000-4500nits |
| Color temperature | 6500-9500K | 6500-9500K | ||
| Panel dimension (W*H*D) |
small：500*500*87mm(19.69*19.69*3.4") big：500*1000*87mm(19.69*39.37*3.4") |
small：500*500*87mm(19.69*19.69*3.4") big：500*1000*87mm(19.69*39.37*3.4") |
||
| Panel weight | small：11kg(23.14lb)±10% big：14.5kg(31.961lb)±10% |
small：11kg(23.14lb)±10% big：14.7kg(31.961lb)±10% |
||
| Frame material | Die-Casting Cabinet | Die-Casting Cabinet | ||
| Power consumption (Max. /Ave., W/m²) |
≤650/≤325 | ≤650/≤325 | ||
| Viewing angle | H:160°/V:140° | H:160°/V:140° | ||
| Refresh rate | 3840Hz/7680Hz | 3840Hz/7680Hz | ||
| Gray scale | 14-16bit | 14-16bit | ||
| IP rating | IP30 | IP65 | ||
| Curve | optional | |||
| Max. stacking/hanging | 10m | 10m | ||
| Serviceability | Front/Rear | Front/Rear | ||
| Operating voltage | AC100-240V~50/60Hz 或 AC200-240V~50/60Hz | AC100-240V~50/60Hz 或 AC200-240V~50/60Hz | ||
| Operating temp/humidity | -20℃~+45℃；10%~60%RH | -20℃~+45℃；10%~90%RH | ||
| Storage Temp/Humidity | -40℃~+60℃；10%~60%RH | -40℃~+60℃；10%~60%RH | ||
