Vertical Splicing & Cube Shapes
Dual Top Latches Design
Dual top latches on cabinet, quick installation, more secure.
.png)
Stable Performance
Magnetic Front Maintenance (Optional)
Optional Magnetic Module
More Efficient Maintenance
.png)

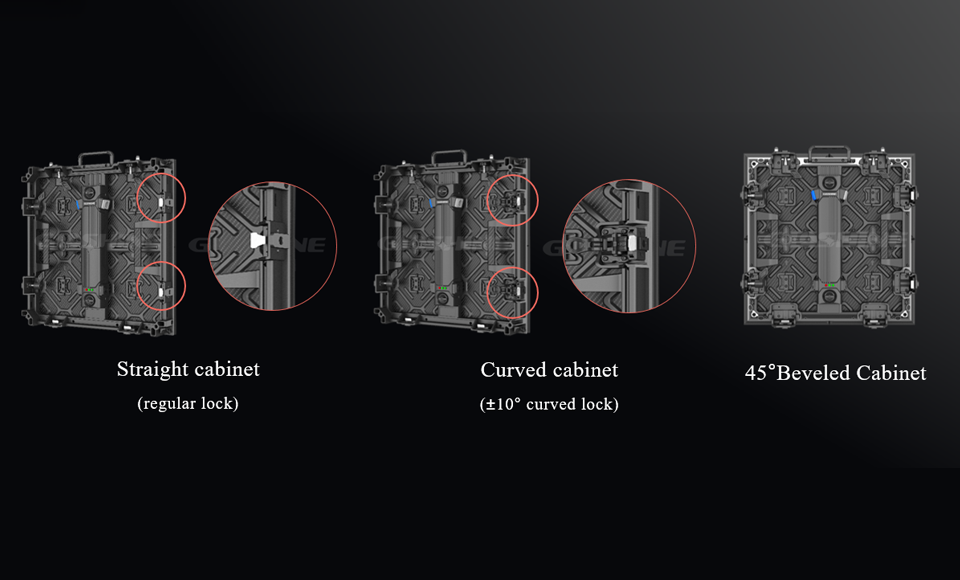

45° bevel cabinet，available splicing for vertical angle, cube shapes etc.

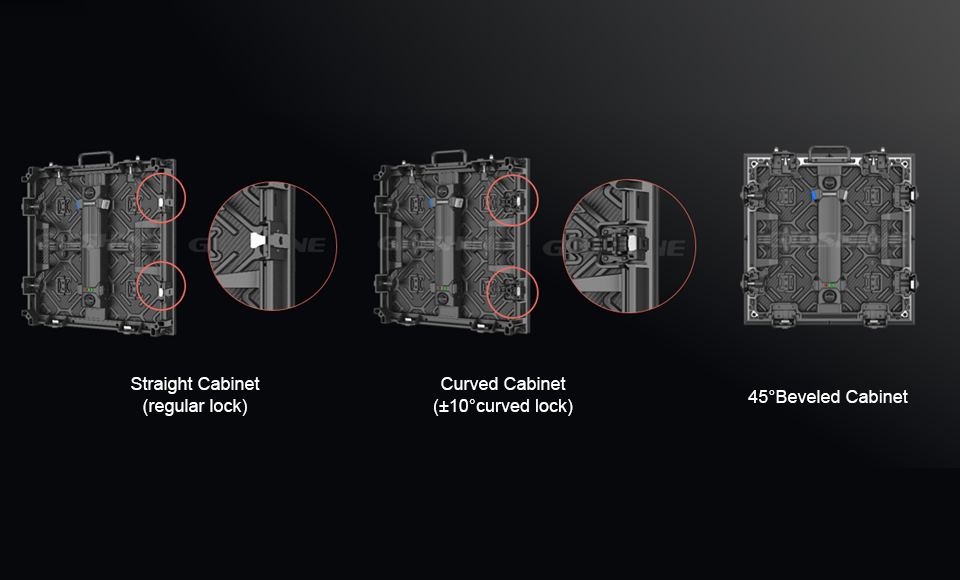

DN Series have 2 types cabinet to match side latch or rotary curved lock.
Protecting corner lamp beads from being damaged by collisions.
.png)

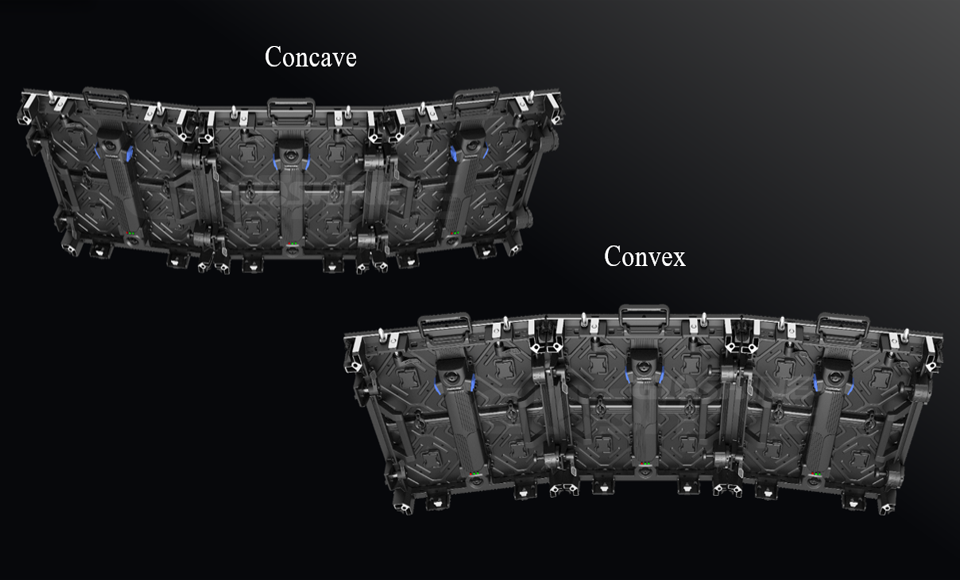

DN & DN Plus Series available splicing for 0° ~±7.5° curved shape, easily radian adjustment, efficiently installation.
DN Series (Indoor&Outdoor) available for vertical+curved and splicing with flexible screen.
.png)
Maximum Hanging and Hanging Height 10 Meters
| Model No. | DN 1.9（Indoor） | DN 2.6（Indoor） | DN 2.9（Indoor） | DN 3.9（Indoor） |
| Pixel Pitch | 1.95 | 2.6 | 2.97 | 3.91 |
| LED Type | SMD1212 | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density | 262144 pixel/m² | 147456 pixel/m² | 112896 pixel/m² | 65536 pixel/m² |
| Panel Resolution | 256*256 pixel | 192*192 pixel | 168*168 pixel | 128*128 pixel |
| Scan Rate | 1/32 | 1/24 | 1/21 | 1/16 |
| Brightness | 600-800nits | 800-1000nits | 800-1000nits | 800-1000nits |
| Color Temperature | 6500-9500K | |||
| Panel Dimension | 500mmX500mmX72mm | |||
| Panel Weight | Straight Cabinet：6.2kg±10% Bevel Cabinet：7.0kg±10% | |||
| Cabinet Material | Die-Casting Cabinet | |||
| Max Power Consumption | ≤650w/m² | |||
| Ave Power Consumption | ≤325w/m² | |||
| Viewing Angle | H:160° V:140° | |||
| Refresh Rate | 3840Hz/7680Hz | |||
| Gray Scale | 14-16bit | |||
| Working Voltage | AC100-240V～50-60Hz or AC200-240V～50-60Hz | |||
| Max Stacking/Hanging | 10m | |||
| IP Rating | IP30 | |||
| Curve | Optional | |||
| Lifetime | 50000h | |||
| Operating Temp/Humidity | -20℃～+45℃；10%～60%RH | |||
| Storage Temp/Humidity | -40℃～+60℃；10%～60%RH | |||
| Model No. | DN Plus 1.9（Indoor） | DN Plus 2.6（Indoor） | DN Plus 2.9（Indoor） | DN Plus 3.9（Indoor） |
| Pixel Pitch | 1.95 | 2.6 | 2.97 | 3.91 |
| LED Type | SMD1212 | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density | 262144 pixel/m² | 147456 pixel/m² | 112896 pixel/m² | 65536 pixel/m² |
| Panel Resolution | 256*512 pixel | 192*384 pixel | 168*336 pixel | 128*256 pixel |
| Scan Rate | 1/32 | 1/24 | 1/21 | 1/16 |
| Brightness | 600-800nits | 800-1000nits | 800-1000nits | 800-1000nits |
| Color Temperature | 6500-9500K | |||
| Panel Dimension | 500mmX1000mmX72mm | |||
| Panel Weight | Straight Cabinet：10.5kg±10% Bevel Cabinet：11.3kg±10% | |||
| Cabinet Material | Die-Casting Cabinet | |||
| Max Power Consumption | ≤650w/m² | |||
| Ave Power Consumption | ≤325w/m² | |||
| Viewing Angle | H:160° V:140° | |||
| Refresh Rate | 3840Hz/7680Hz | |||
| Gray Scale | 14-16bit | |||
| Working Voltage | AC100-240V～50-60Hz or AC200-240V～50-60Hz | |||
| Max Stacking/Hanging | 10m | |||
| IP Rating | IP30 | |||
| Curve | Optional | |||
| Lifetime | 50000h | |||
| Operating Temp/Humidity | -20℃～+45℃；10%～60%RH | |||
| Storage Temp/Humidity | -40℃～+60℃；10%～60%RH | |||
