Carbon Fiber
·Ultra-light carbon fiber indoor&outdoor cabinets
Air Frame
•with air frame, making stacking installation easy and convenient.
•Making the screen be strong for air resisting.
High Protection
·Outdoor Waterproof Front &Rear IP65

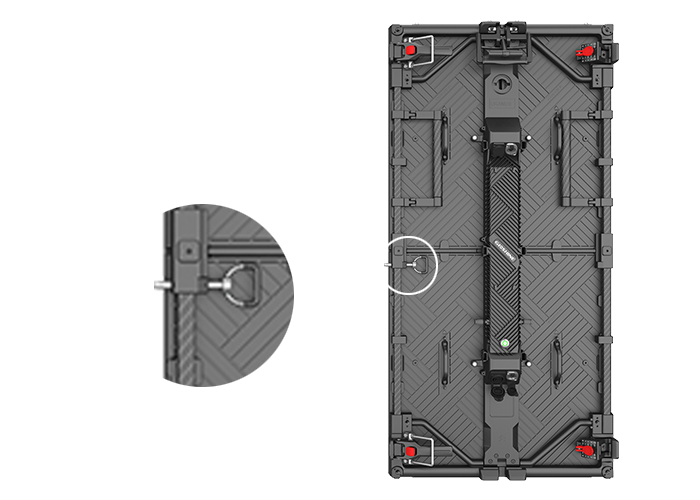

High Flatness Specification
Left and right splicing with structural components added in between for secure fastening, ensuring high flatness.
•UR Stands out with 1921 Black LED，
High Contrast Ratio, Superior color performance.
Various Possibility: Support concave and convex splicing,covering from 0° to ±10°, offering flexible and versatile design options.
•Maximum hanging height:
20m(With touring frame)
10m(normal)
Horizontal 160°, Vertical 140° View Angle, Shadowless Full-frame.
|
Model No. |
UR2(Indoor) |
UR3(Indoor) |
UR3(Outdoor) |
|
Pixel Pitch |
2.60mm |
3.91mm |
3.91mm |
|
LED Type |
SMD1515(black) |
SMD2020(black) |
SMD1921(black) |
|
Pixel Density |
147456pixel/㎡ |
65536pixel/㎡ |
65536pixel/㎡ |
|
Brightness |
800-1200nits |
800-1200nits |
3500～4500nits |
|
Color Temperature |
6500～9500K |
6500～9500K |
6500～9500K |
|
Scan Rate |
1/16 |
1/16 |
1/16 |
|
Panel Dimension |
UR:500mm*1000mm*85.5mm (19.7"*39.4"*3.36) UR mini:500mm*500mm*85.5mm(19.7"*19.7"*3.36") |
UR:500mm*1000mm*85.5mm (19.7"*39.4"*3.36) UR mini:500mm*500mm*85.5mm( 19.7"*19.7"*3.36") |
UR:500mm*1000mm*85.5mm (19.7"*39.4"*3.36) UR mini:500mm*500mm*85.5mm(19.7"*19.7"*3.36") |
|
Panel Resolution |
192*384pixel |
128*256pixel |
128*256pixel |
|
Panel Weight |
UR:10.5±10% UR mini:5.5±10% |
UR:10.5±10% UR mini:5.5±10% |
UR:12±10% UR mini:6±10% |
|
Cabinet Material |
Die-casting Cabinet |
Die-casting Cabinet |
Die-casting Cabinet |
|
Max Power Consumption |
≦720w/㎡ |
≦720w/㎡ |
≦720w/㎡ |
|
Ave Power Consumption |
≦360w/㎡ |
≦360w/㎡ |
≦360w/㎡ |
|
Viewing Angle |
H:160º V:140º |
H:160º V:140º |
H:160º V:140º |
|
Refresh Rate |
3840Hz/7680Hz |
3840Hz/7680Hz |
3840Hz/7680Hz |
|
Gray Scale |
14-16bit |
14-16bit |
14-16bit |
|
Working Voltage |
AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) |
AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) |
AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) |
|
IP Rating |
IP30 |
IP30 |
Front IP65,Rear IP54 |
|
Max Stacking/Hanging |
10m |
10m |
10m |
|
Curve |
-10⁰~+10⁰ |
-10⁰~+10⁰ |
-10⁰~+10⁰ |
|
Lifetime |
50,000 h |
50,000 h |
50,000 h |
|
Operating Temp/Humidity |
-20℃～+45℃；10%～60%RH |
-20℃～+45℃；10%～60%RH |
-20℃～+45℃；10%～90%RH |
|
Storage Temp/Humidity |
-40℃～+60℃；10%～60%RH |
-40℃～+60℃；10%～60%RH |
-40℃～+60℃；10%～60%RH |
