ZS III Series

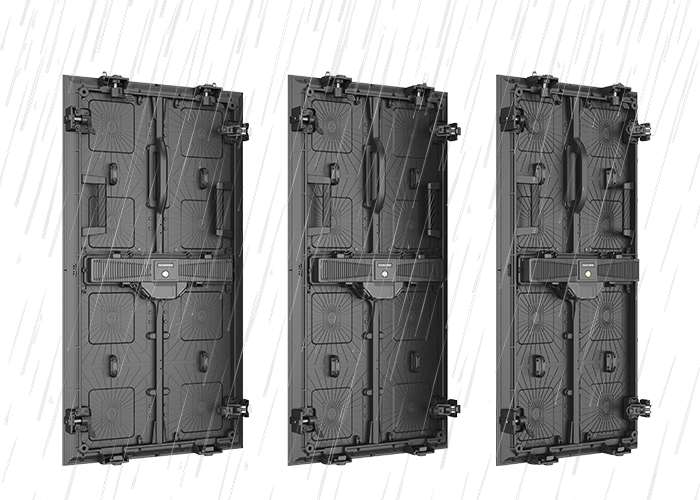

Front IP65, Rear IP54

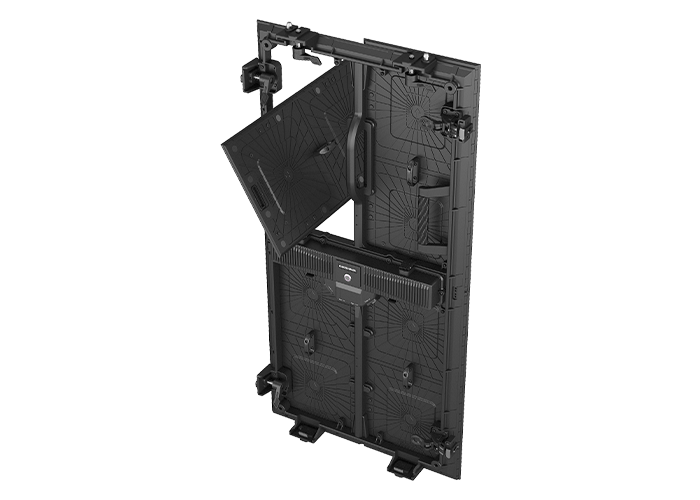

ZS III series supports front/rear maintenance, fast and efficient.

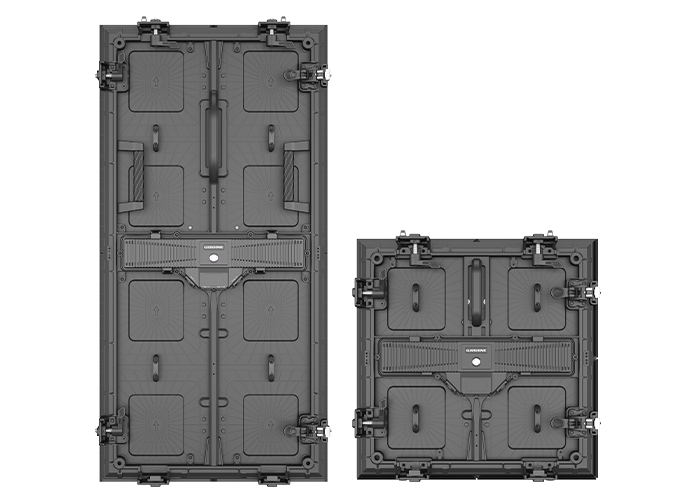

ZS III&ZM III

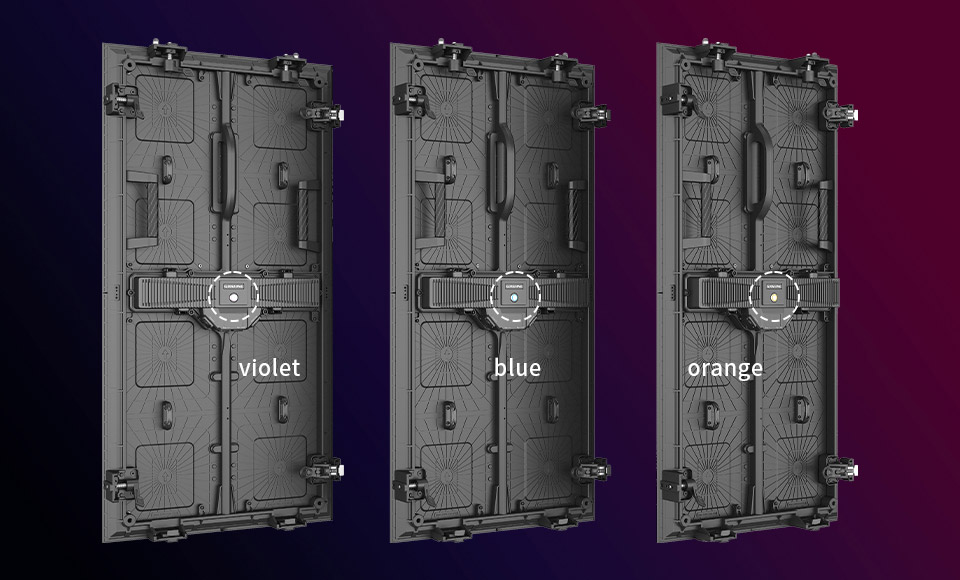

Different colors for identification

The dual - power supply system ensures more stable and reliable power supply. By using different colors for identification, it can more intuitively display the power supply status.

Pink / Normal state

Blue-Green / Abnormality of the left power supply

Orange / Abnormality of the right power supply

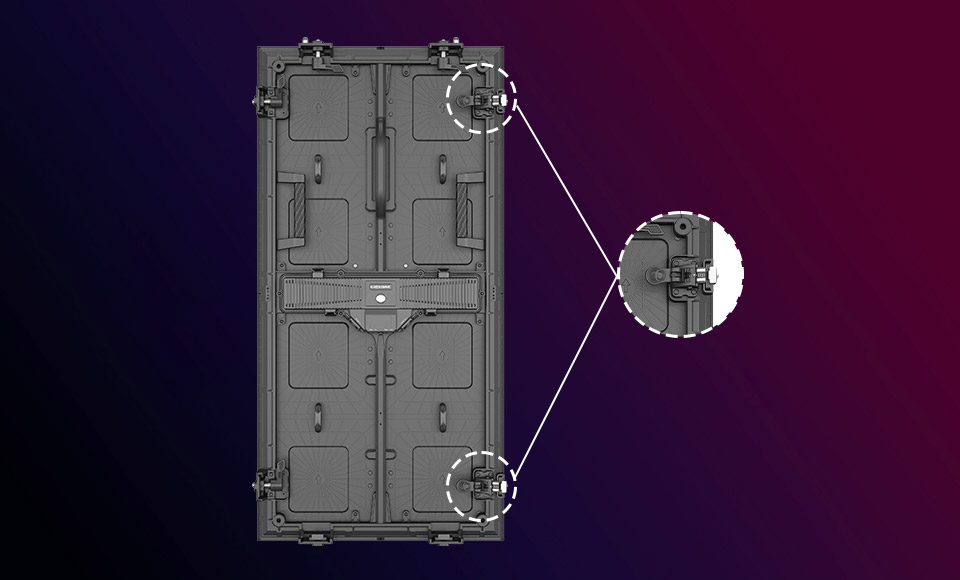

two arc-adjustable tensioning mechanisms

The cabinet uses two arc-adjustable tensioning mechanisms, and each mechanism is equipped with two positioning pins, making the assembly more stable and convenient.

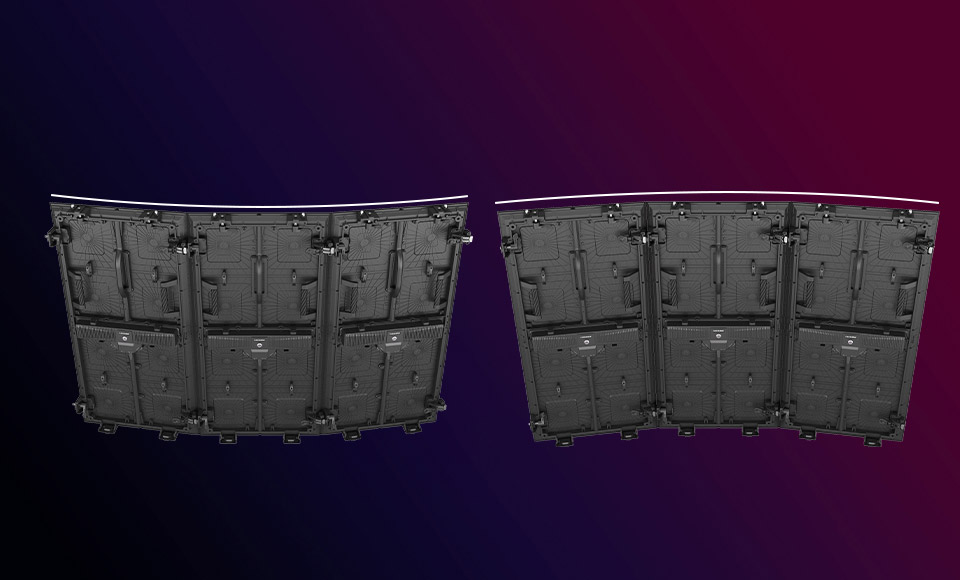

Supports ±10° arc-shaped module splicing

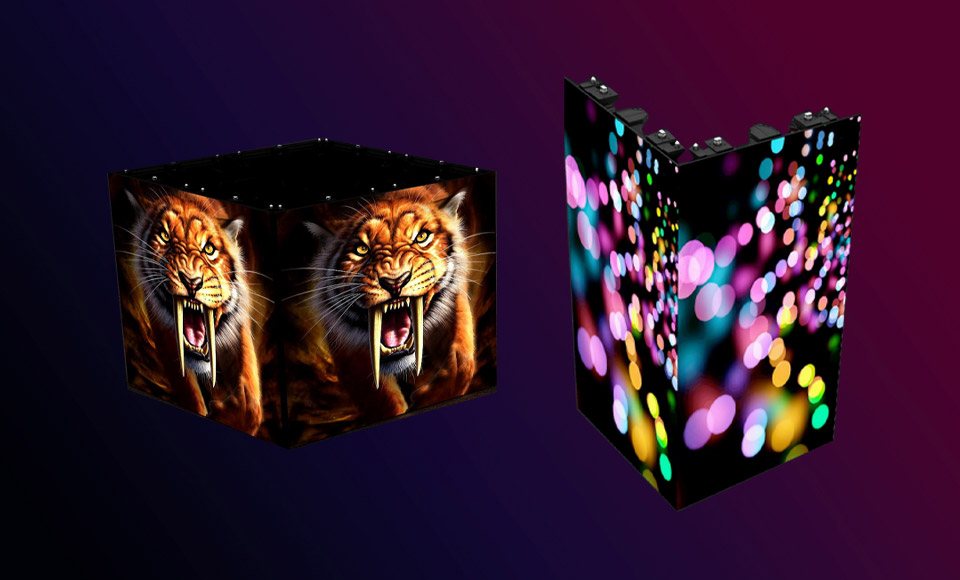

Support 90° splicing

Paramétros técnicos

Model No.	ZS III4.81 (Outdoor/Non-perfortated)	ZM III4.81 (Outdoor/Non-perforated)	ZS III 6.94 （Outdoor/Non-perforated）	ZM III 6.94 （Outdoor/Non-perforated）	ZS III 6.94 （Outdoor/Perforated）	ZM III 6.94 （Outdoor/Perforated）
Plxel Pitch	4.81mm	4.81mm	6.94mm	6.94mm	6.94mm	6.94mm
Brightness	3500-4500nits	3500-4500nits	3500-4500nits	3500-4500nits	3500-4500nits	3500-4500nits
Scan Rate	1/13	1/13	1/6	1/6	1/6	1/6
Panel Dimension(WHD)	500mm1000mm68mm/19.7''X39.4''X2.67''	500mm500mm68mm/19.7''X19.7''X2.67''	500mm1000mm68mm/19.7''X39.4''X2.67''	500mm500mm68mm/19.7''X19.7''X2.67''	500mm1000mm68mm/19.7''X39.4''X2.67''	500mm500mm68mm/19.7''X19.7''X2.67''
Panel Weight	9.4KG±10%（Magnesium Alloy）	6.0KG±10%（Magnesium Alloy）	8.6KG±10%（Magnesium Alloy）	5.2KG±10%（Magnesium Alloy）	8.6KG±10%（Magnesium Alloy）	5.2KG±10%（Magnesium Alloy）
Serviceability	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
