Winning the Red Spot Design Award
IF Design Award
Left and Right Tightening Mechanism
Wave wheel arc lock
Collision avoidance design

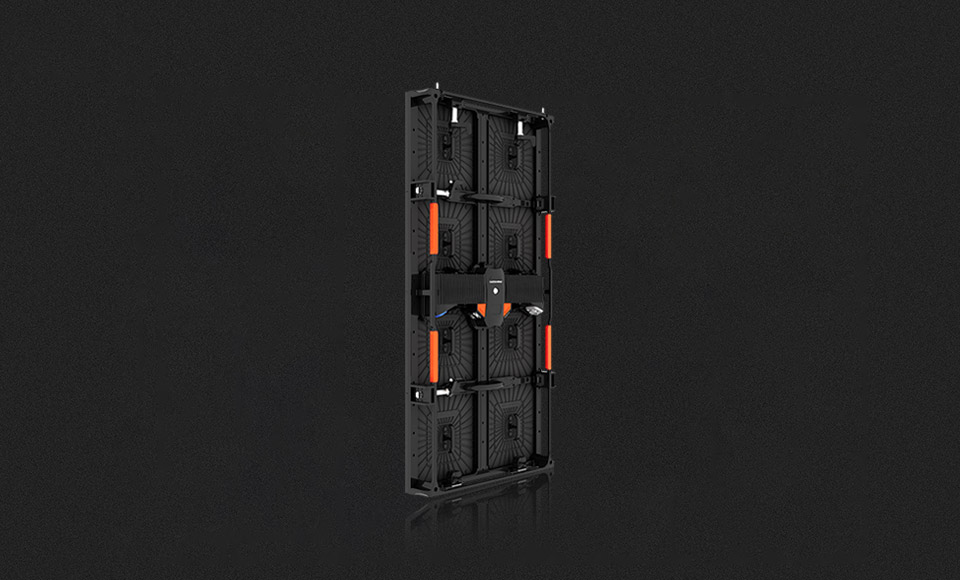

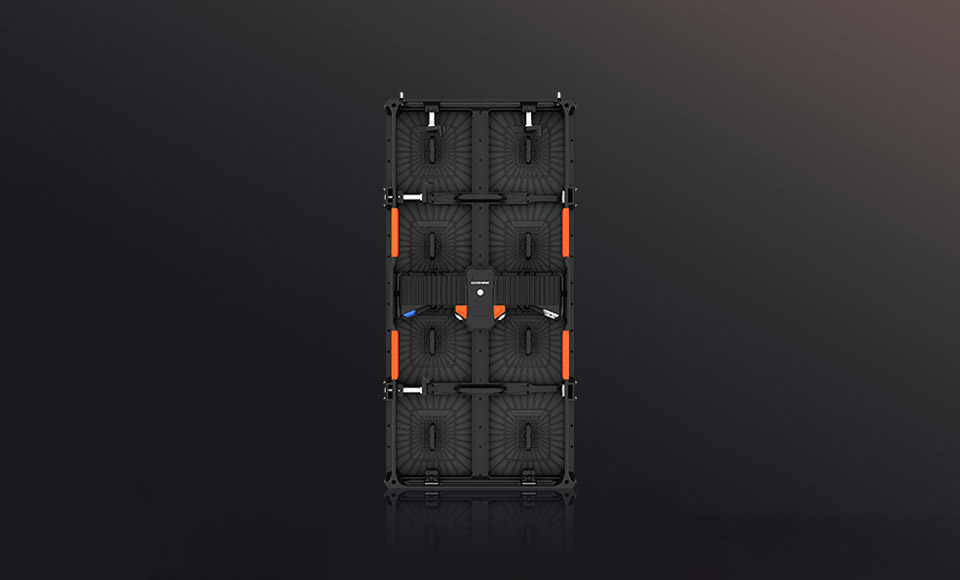

Box Handle + Lifting Lock
Self-hanging upper and lower lock, single-person assembly,
save time and labor.
Store hardware program and correction data on each module;
Read back at any time to facilitate customer use and maintenance.
品番 | AS3.91(Outdoor) | AS4.81(Outdoor/Dance floor) | AS5.95(Outdoor/Dance floor) |
ピクセルピッチ | 3.91mm | 4.81mm | 5.95mm |
LED | SMD1921(High frame) | ||
ドット密度 | 65536pixel/㎡ | 43264pixel/㎡ | 28224pixel/㎡ |
輝度 | 2000-2500nits 4000-5000nits |
2000-2500nits 4000-4500nits |
2200-2500nits 4000-5000nits |
色温度 | 6500-9500k | ||
ドライブモード | 1/16 | 1/13 | 1/7 |
パネルサイズ(W×H×D) | 500mm×1000mm×85mm / 19.7"×39.4"×3.3" | ||
パネル解像度 | 128*256pixel | 104*208pixel | 84*168pixel |
パネル重量 | 13.50kg/29.76lb | ||
パネル材質 | アルミダイキャスト | ||
最大消費電力 | ≦700w/㎡ | ||
平均消費電力 | ≦350w/㎡ | ||
視野角 | H:140º V:120º | ||
リフレッシュレート | 1920Hz | ||
カラー階調処理 | 14-16bit | ||
防護レベル | Front IP65,Rear IP54 | ||
動作湿度 | 10%-90%RH | ||
動作温度 | -20℃~+45℃ | ||
最大スタック | 15pcs | ||
最大吊り下げ | 15pcs | ||
曲面設置(可選択) | -7.5°~+7.5° | ||
寿命 | 50,000 hrs | ||
保管温度/湿度 | -40℃~+60℃;10%-60%RH |
