Winning the Red Spot Design Award
IF Design Award

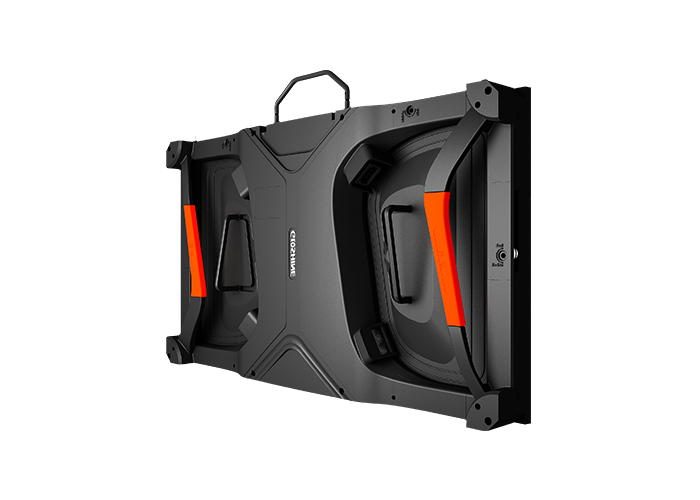

Left and Right Tightening Mechanism
Wave wheel arc lock

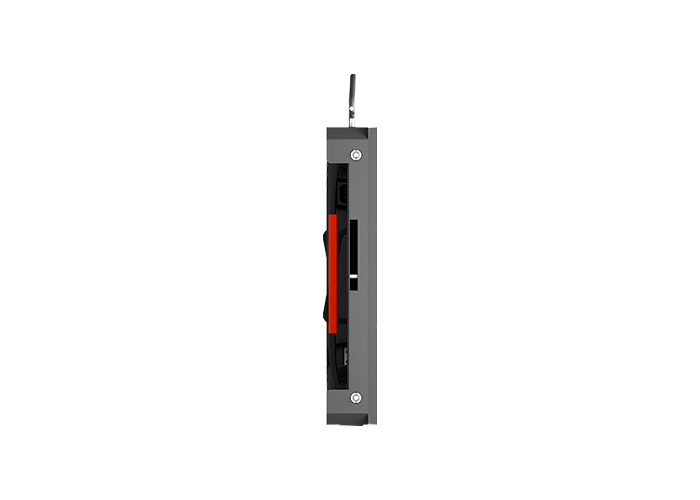

Collision avoidance design

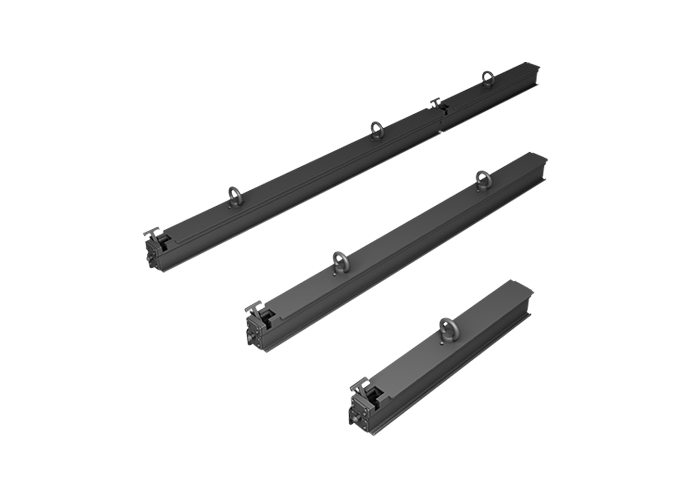

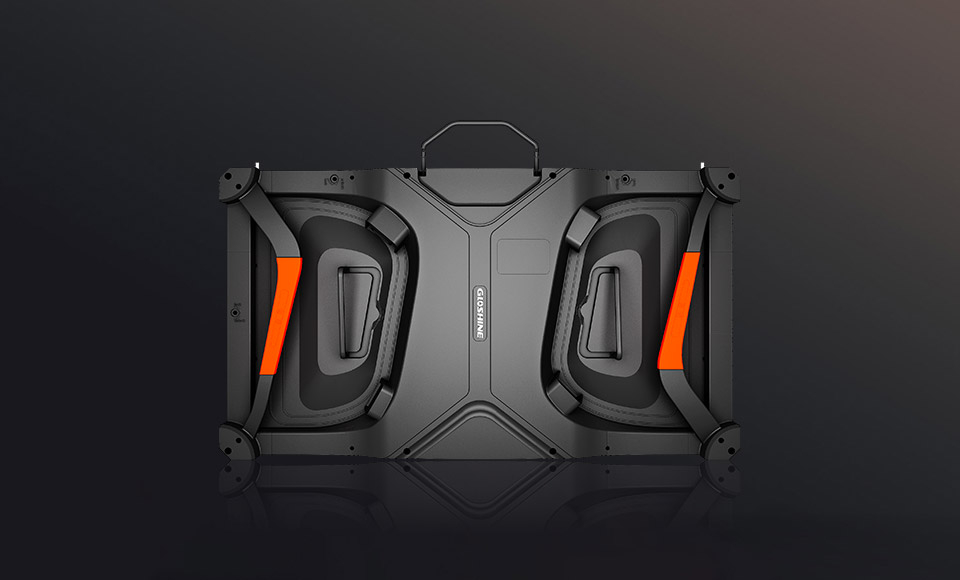

Box Handle + Lifting Lock

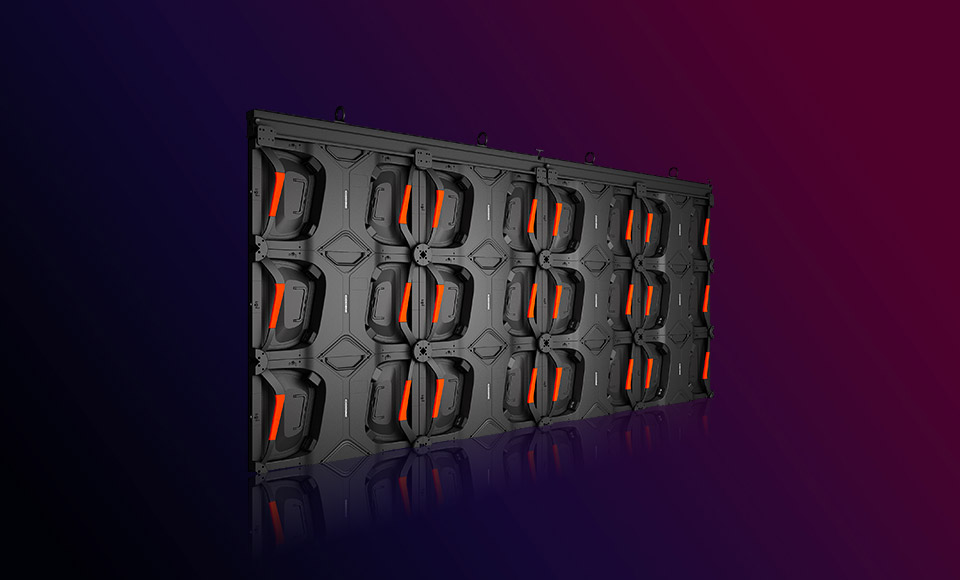

Self-hanging upper and lower lock, single-person assembly,
save time and labor.

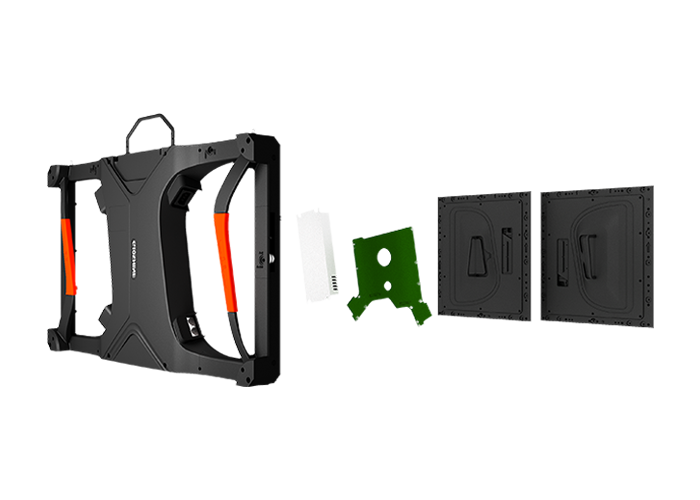

Store hardware program and correction data on each module;
Read back at any time to facilitate customer use and maintenance.
| 品番 | BR0.93(Indoor) | BR1.25(Indoor) | BR1.56(Indoor) | BR1.87(Indoor) | BR2.5(Indoor) |
| ピクセルピッチ | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm | 2.5mm |
| LED | SMD Four in one | SMD Two in one | SMD1010 | SMD1010 | SMD1515 |
| ドット密度 | 1137778pixel/㎡ | 640000pixel/㎡ | 409600pixel/㎡ | 284444pixel/㎡ | 160000pixel/㎡ |
| 輝度 | 500--600nits | 500--700nits | 600--800nits | 600--800nits | 1000--1300nits |
| 色温度 | 6500-9500k | ||||
| ドライブモード | 1/30 | 1/30 | 1/24 | 1/30 | 1/27 |
| パネルサイズ(W×H×D) | 600×338×60mm / 23.62"×13.29"×2.36" | ||||
| パネル解像度 | 640*360 pixel | 480*270 pixel | 384*216 pixel | 320*180pixel | 240*135pixel |
| パネル重量 | 7kg~8kg/15.43lb~17.64lb | ||||
| パネル材質 | Die casting aluminum | ||||
| 最大消費電力 | ≦700w/㎡ | ≦750w/㎡ | ≦780w/㎡ | ≦780w/㎡ | ≦680w/㎡ |
| 平均消費電力 | ≦350w/㎡ | ≦375w/㎡ | ≦390w/㎡ | ≦390w/㎡ | ≦340w/㎡ |
| 視野角 | H:160º V:140º | ||||
| リフレッシュレート | 3840Hz | ||||
| カラー階調処理 | 13-15bit | 13-15bit | 14-16bit | 13-15bit | 14-16bit |
| 防護レベル | IP30 | ||||
| 動作湿度 | 10%-60%RH | ||||
| 動作温度 | -20℃～+40℃ | ||||
| 最大スタック | 20pcs | ||||
| 最大吊り下げ | 15pcs | ||||
| 曲面設置(可選択) | 3×3 | 4×4 | 5×5 | 6×6 | 8×8 |
| 寿命 | 50,000hrs | ||||
| 保管温度/湿度 | -40℃～+60℃；10%-60%RH |
