Winning the Red Spot Design Award
IF Design Award
Left and Right Tightening Mechanism
Wave wheel arc lock
Collision avoidance design

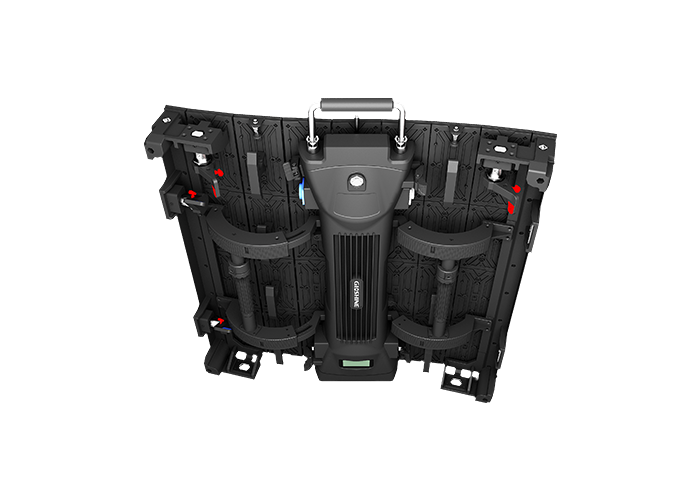

Box Handle + Lifting Lock
Self-hanging upper and lower lock, single-person assembly,
save time and labor.
Store hardware program and correction data on each module;
Read back at any time to facilitate customer use and maintenance.
品番 | CF2.60(Indoor) | CF3.91(Indoor) |
ピクセルピッチ | 2.60mm | 3.91mm |
LED | SMD1515 | SMD2020 |
ドット密度 | 147456pixel/㎡ | 65536pixel/㎡ |
輝度 | 800--1300nits | 1000--1300nits |
色温度 | 6500-9500k | |
ドライブモード | 1/24 | 1/16 |

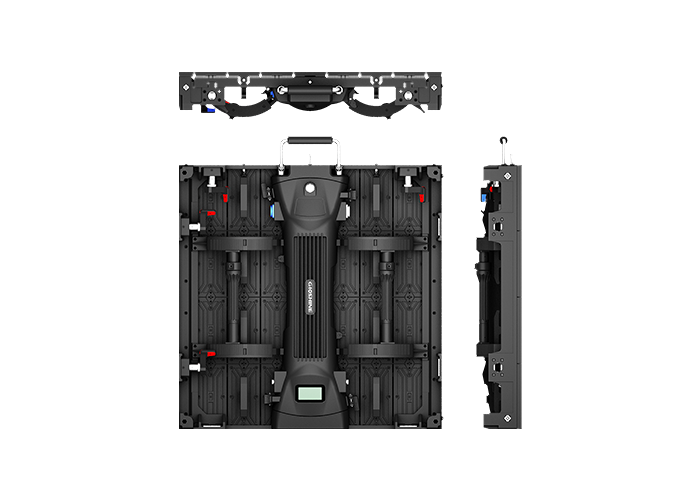

パネルサイズ(W×H×D) | 500mm×500mm×94mm /19.68"×19.68"×3.70" | |
パネル解像度 | 192*192 pixel | 128*128 pixel |
パネル重量 | 8kg/17.637lb | |
パネル材質 | アルミダイキャスト | |
最大消費電力 | ≦650w/㎡ | ≦680w/㎡ |
平均消費電力 | ≦325w/㎡ | ≦340w/㎡ |
視野角 | H:160º V:140º | |
リフレッシュレート | 1920Hz / 3840Hz | |
カラー階調処理 | 14-16bit | |
防護レベル | IP30 | |
動作湿度 | 10%-90%RH | |
動作温度 | -20℃~+40℃ | |
最大スタック | 20pcs | |
最大吊り下げ | 20pcs | |

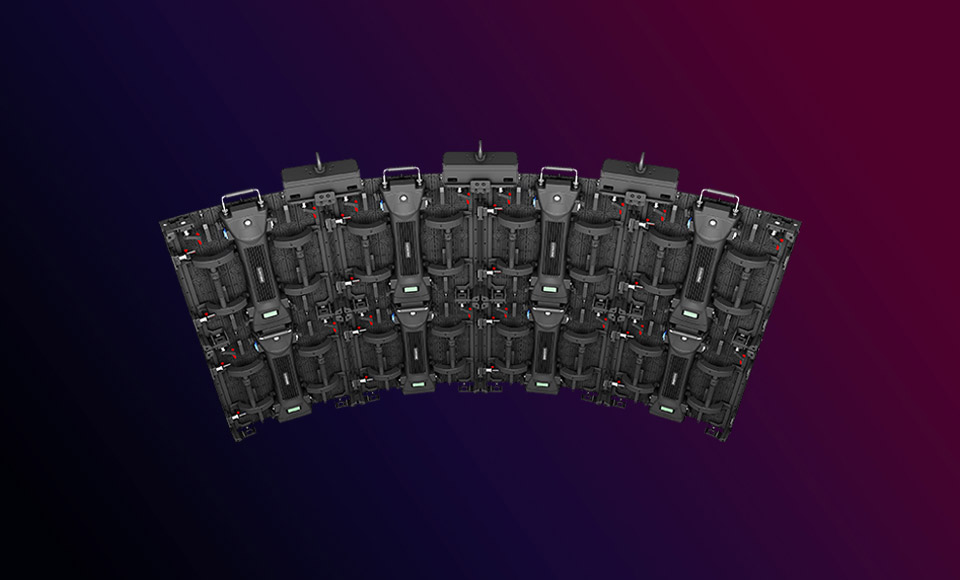

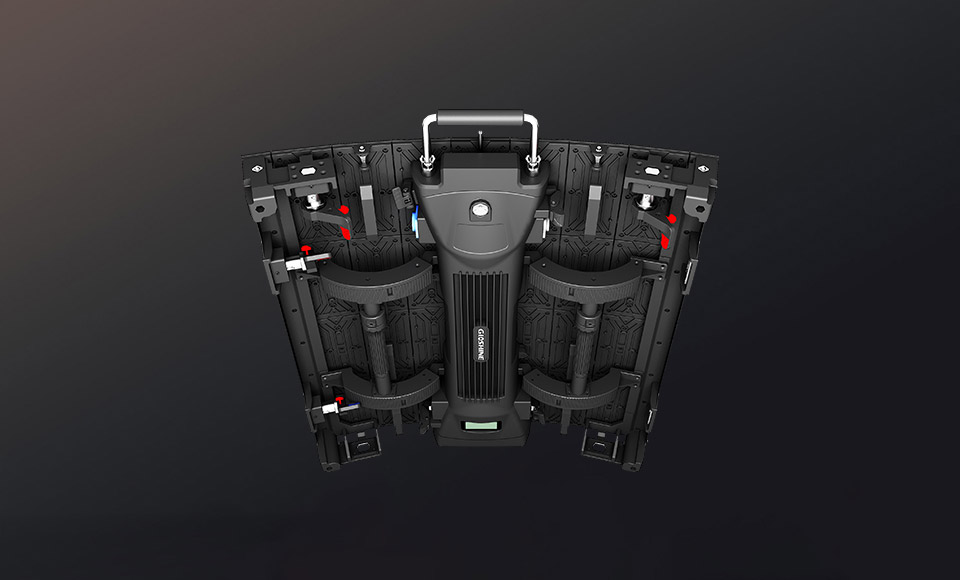

曲面設置(可選択) | -30°~+30°(2.5º/scale) | |
寿命 | 50,000hrs | |
保管温度/湿度 | -40℃~+60℃;10%-60%RH |
