Winning the Red Spot Design Award
IF Design Award
Left and Right Tightening Mechanism
Wave wheel arc lock
Collision avoidance design
Box Handle + Lifting Lock

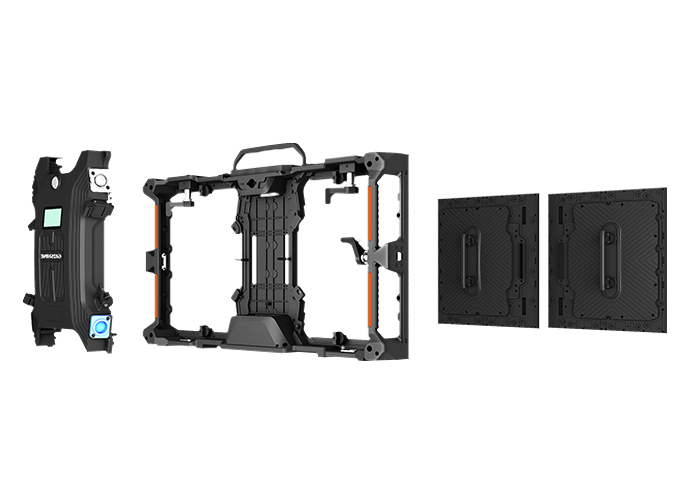

Self-hanging upper and lower lock, single-person assembly,
save time and labor.
Store hardware program and correction data on each module;
Read back at any time to facilitate customer use and maintenance.
| 品番 | X Pro 0.95 (Indoor) | X Pro 1.26 (Indoor) | X Pro 1.58 (Indoor) | X Pro 1.9 (Indoor) |
| ピクセルピッチ | 0.95mm | 1.26mm | 1.58mm | 1.9mm |
| Led Type | Four in one | Two in one | Four in one | Four in one |
| ドット密度 | 1108034pixel/㎡ | 623275pixel/㎡ | 398892pixel/㎡ | 277008pixel/㎡ |
| 輝度 | 500-800nits | |||
| 色温度 | 6500-9500k | |||
| ドライブモード | 1/30 | 1/30 | 1/27 | 1/30 |
| パネルサイズ(W×H×D) | 608mm×342mm×84mm / 23.93"×13.46"×3.3" | |||
| パネル解像度 | 360*640pixel | 268*480pixel | 216*384pixel | 180*320pixel |
| パネル重量 | 8.80kg/19.4lb | |||
| パネル材質 | アルミダイキャスト | |||
| 最大消費電力 | ≦650w/㎡ | |||
| 平均消費電力 | ≦325w/㎡ | |||
| 視野角 | H≥160º V≥160º | |||
| リフレッシュレート | 1920Hz / 3840Hz | |||
| カラー階調処理 | 14-16bit | |||
| 防護レベル | IP30 | |||
| 動作湿度 | 10%-90%RH | |||
| 動作温度 | -20℃～+50℃ | |||
| 最大スタック | 25pcs | |||
| 最大吊り下げ | 25pcs | |||
| 寿命 | 50,000hrs | |||
| 保管温度/湿度 | -40℃～+60℃；10%-60%RH |
