Winning the Red Spot Design Award
IF Design Award

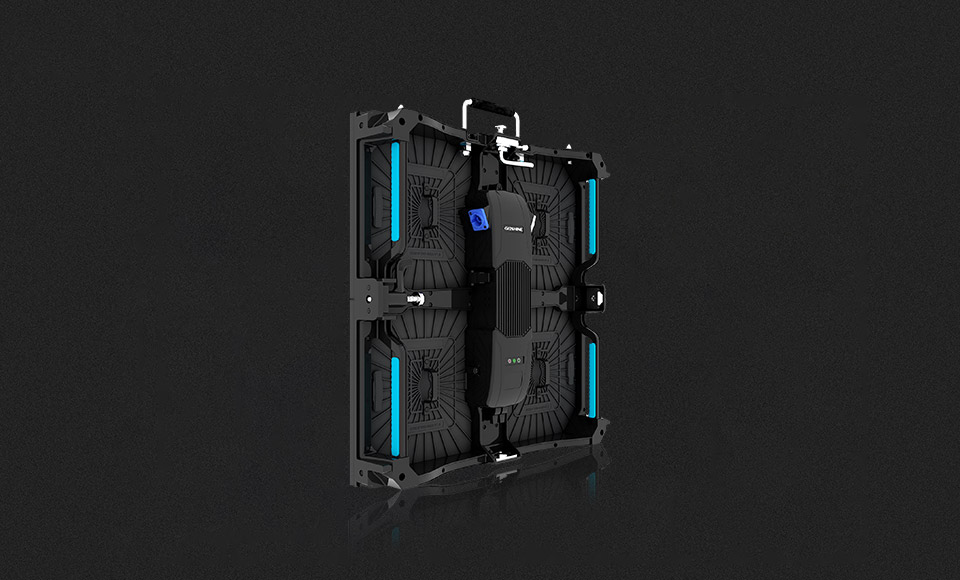

Left and Right Tightening Mechanism
Wave wheel arc lock
Collision avoidance design

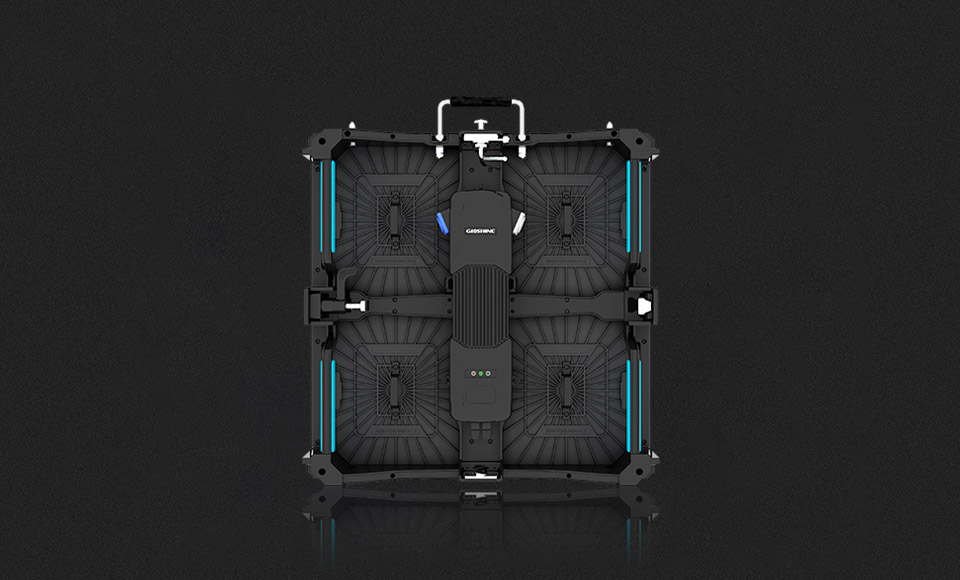

Box Handle + Lifting Lock
Self-hanging upper and lower lock, single-person assembly,
save time and labor.
Store hardware program and correction data on each module;
Read back at any time to facilitate customer use and maintenance.
品番 | W2.61(Indoor) | W2.97(Indoor) | W3.91(Indoor) |
ピクセルピッチ | 2.61mm | 2.97mm | 3.91mm |
LED | SMD1515/SMD2020(Black LEDs) | SMD2020(Black LEDs) | SMD2020(Black LEDs) |
ドット密度 | 147456pixel/㎡ | 112896pixel/㎡ | 65536pixel/㎡ |
輝度 | 800-1100nits | ||
色温度 | 6500-9500k | ||
ドライブモード | 1/32 | 1/21 | 1/16 |
パネルサイズ(W×H×D) | 500mm×500mm×76mm /19.7"×19.7"×3.0" | ||
パネル解像度 | 192*192pixel | 192*192pixel | 128*128pixel |
パネル重量 | 6.80kg/14.99lb | ||
パネル材質 | アルミダイキャスト | ||
最大消費電力 | ≦700w/㎡ | ||
平均消費電力 | ≦350w/㎡ | ||
視野角 | H:160º V:140º | ||
リフレッシュレート | 1920Hz | ||
カラー階調処理 | 14-16bit | ||
IP Rating | IP30 | ||
防護レベル | 10%-90%RH | ||
動作湿度 | -20℃~+40℃ | ||
最大スタック | 20pcs | ||
最大吊り下げ | 20pcs | ||
寿命 | 50,000hrs | ||
保管温度/湿度 | -40℃~+60℃;10%-60%RH |
