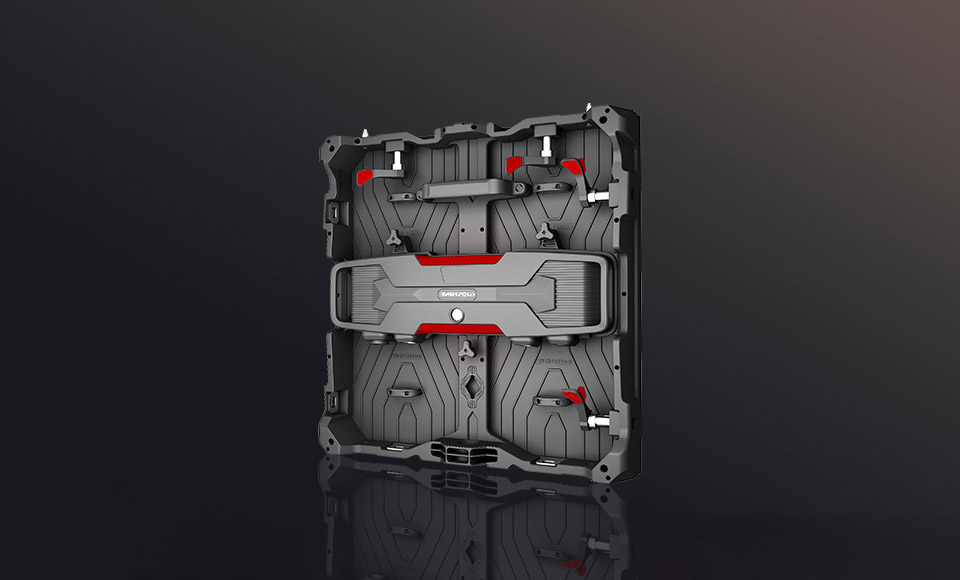

Legend series is still keeping the concise and great momentum style; it adopts modular design and also the benchmark of industrial design.

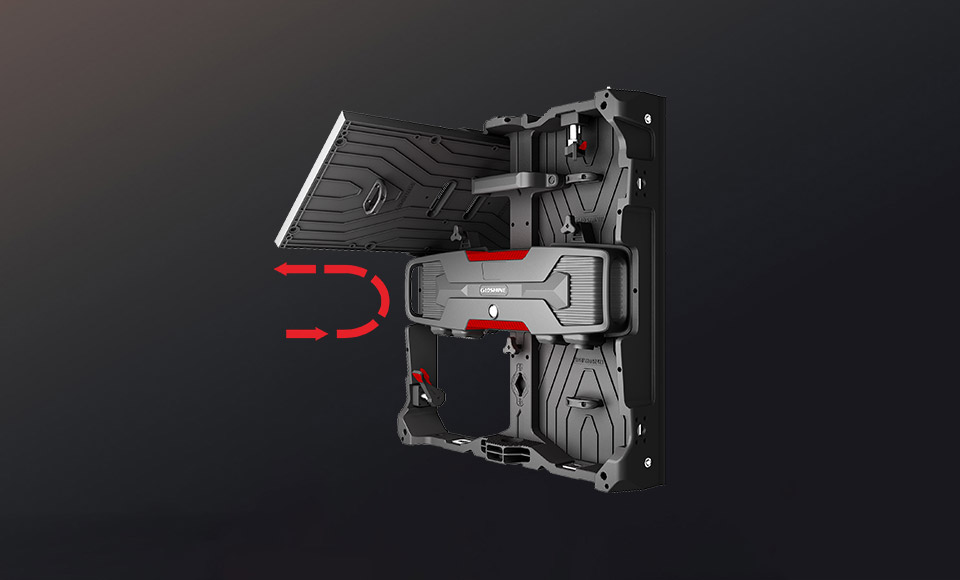

Modular Design

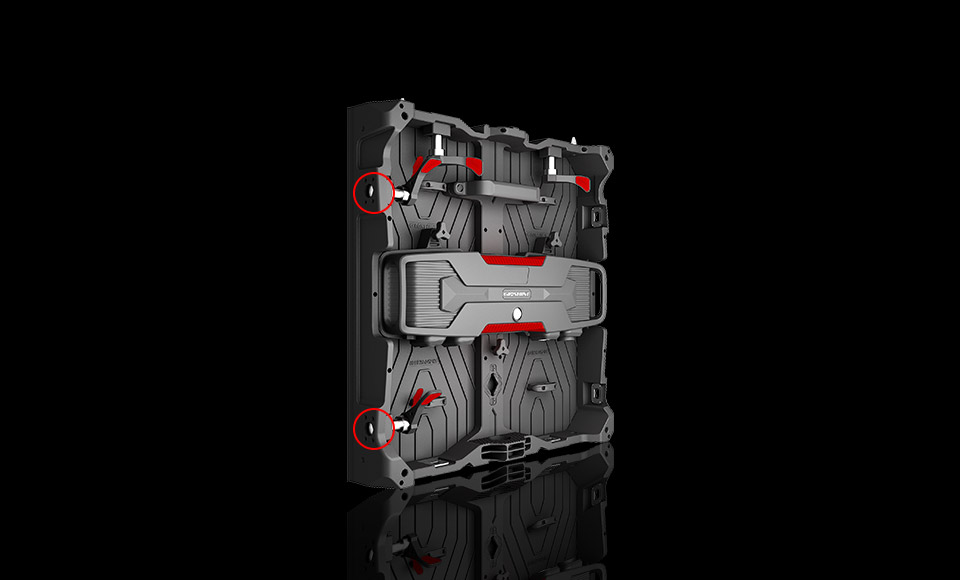

The left and right sides take-up unit is benefit to assemble the cabinet and reduce the seams during the assembly.

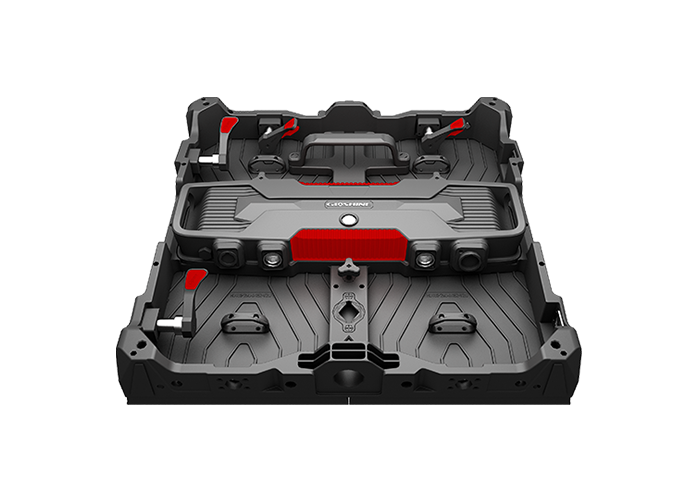

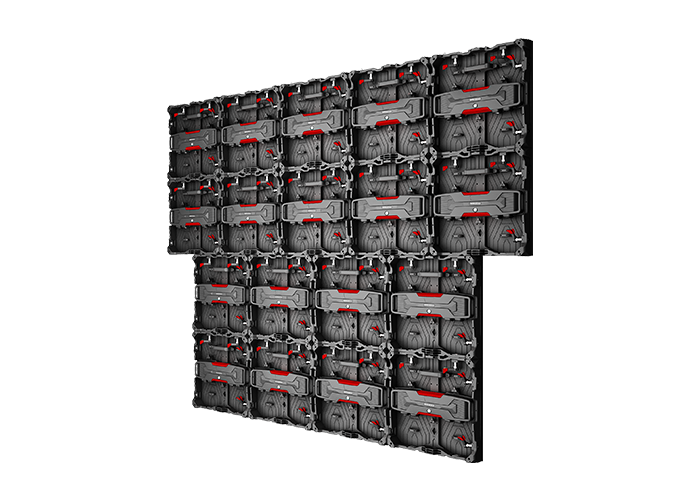

Legend mini series has two kinds of cabinet versions ,straight and curved cabinet.
The cabinet can be placed in the transporters, and vastly improved work efficiency.
| 品番 | Legend mini 2.97(Outdoor) | Legend mini 3.91(Outdoor) | Legend mini 4.81(Outdoor) | Legend mini 5.95(Outdoor) |
| ピクセルピッチ | 2.97mm | 3.91mm | 4.81mm | 5.95mm |
| LED | SMD1515 | SMD1921 | SMD1921 | SMD1921 |
| ドット密度 | 112896pixel/㎡ | 65536pixel/㎡ | 43264pixel/㎡ | 28224pixel/㎡ |
| 輝度 | 3500-4500nits | 4000-5000nits | 4000-5000nits | 4000-5000nits |
| 色温度 | 6500-9500k | |||
| ドライブモード | 1/21 | 1/16 | 1/13 | 1/7 |
| パネルサイズ(W×H×D) | 500×500×86mm / 19.7"×19.7"×3.4" | |||
| パネル解像度 | 168*168pixel | 128*128pixel | 104*104pixel | 84*84pixel |
| パネル重量 | 8.8kg/19.40lb | |||
| パネル材質 | マグネシウム合金 | |||
| 最大消費電力 | ≦650w/㎡ | ≦700w/㎡ | ≦700w/㎡ | ≦700w/㎡ |
| 平均消費電力 | ≦325w/㎡ | ≦350w/㎡ | ≦350w/㎡ | ≦350w/㎡ |
| 視野角 | H:160º V:140º | |||
| リフレッシュレート | 1920Hz/3840Hz | |||
| カラー階調処理 | 14-16bit | |||
| 防護レベル | Front IP65,Rear IP54 | |||
| 動作湿度 | 10%-90%RH | |||
| 動作温度 | -20℃～+45℃ | |||
| 最大スタック | 20pcs | |||
| 最大吊り下げ | 20pcs | |||
| 曲面設置(可選択) | -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° | |||
| 寿命 | 50,000 hrs | |||
| 保管温度/湿度 | -40℃～+60℃；10%-60%RH |
