Winning the Red Spot Design Award
IF Design Award
Left and Right Tightening Mechanism
Wave wheel arc lock
Collision avoidance design

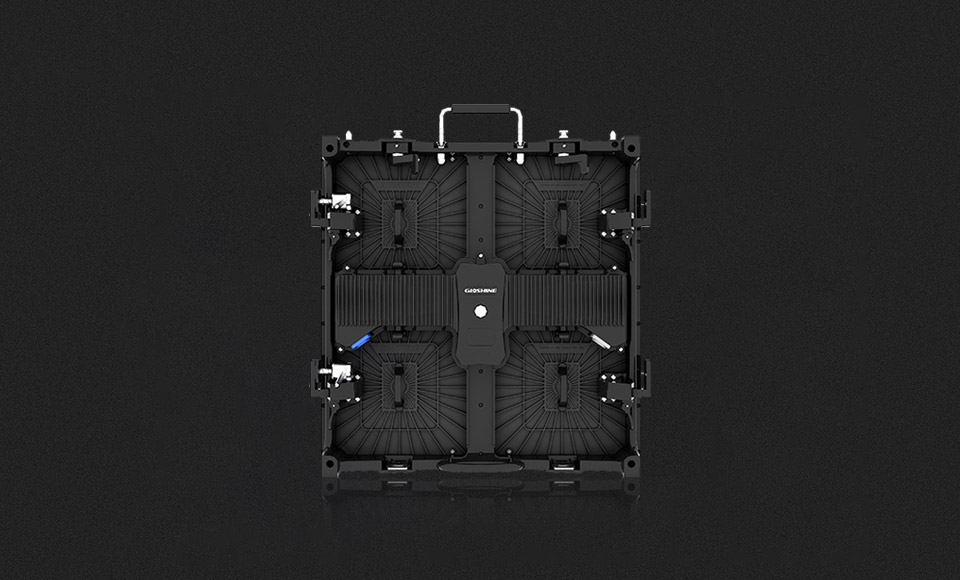

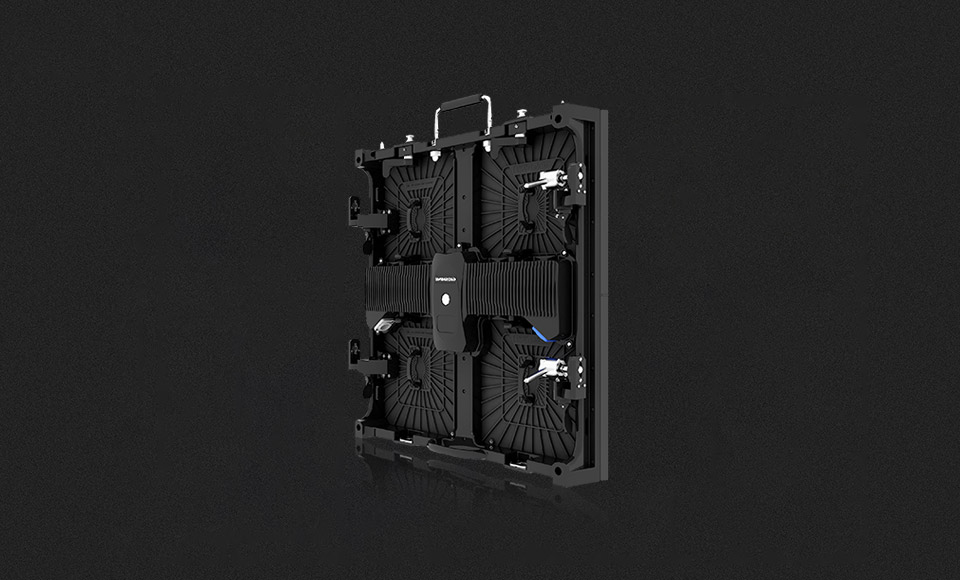

Box Handle + Lifting Lock
Self-hanging upper and lower lock, single-person assembly,
save time and labor.
Store hardware program and correction data on each module;
Read back at any time to facilitate customer use and maintenance.
| 品番 | LM3.91(Indoor/Outdoor) | LM4.81(Indoor/Outdoor) | LM5.95(Outdoor) | LM8.33(Outdoor) | LM15.62(Outdoor) |
| ピクセルピッチ | 3.91mm | 4.81mm | 5.95mm | 8.33mm | 15.62mm |
| LED | SMD2020(Black) SMD1921(High frame) |
SMD2020(Black) SMD1921(High frame) |
SMD1921(High frame) | SMD3535 | SMD3535 |
| ドット密度 | 65536pixel/㎡ | 43264pixel/㎡ | 28224pixel/㎡ | 14400pixel/㎡ | 4096pixel/㎡ |
| 輝度 | 800-1100nits 2000-2500nits 4000-4500nits |
800-1100nits |
2200-2500nits 4000-4500nits |
5000-5500nits | 5000-5500nits |
| 色温度 | 6500-9500k | ||||
| ドライブモード | 1/16 | 1/13 | 1/7 | 1/3 | Static |
| パネルサイズ(W×H×D) | 500×500×75mm 19.7"×19.7"×3.0" |
||||
| パネル解像度 | 128*128pixel | 104*104pixel | 84*84pixel | 60*60pixel | 32*32pixel |
| パネル重量 | 8.00kg/17.64lb 8.50kg/18.74lb |
8.00kg/17.64lb 8.50kg/18.74lb |
8.50kg/18.74lb | 8.50kg/18.74lb | 8.50kg/18.74lb |
| パネル材質 | アルミダイキャスト | ||||
| 最大消費電力 | ≦650w/㎡ ≦700w/㎡ |
≦650w/㎡ ≦700w/㎡ |
≦700w/㎡ | ≦700w/㎡ | ≦700w/㎡ |
| 平均消費電力 | ≦325w/㎡ ≦350w/㎡ |
≦325w/㎡ ≦350w/㎡ |
≦350w/㎡ | ≦350w/㎡ | ≦350w/㎡ |
| 視野角 | H:160º V:140º H:140º V:120º |
H:160º V:140º H:140º V:120º |
H:140º V:120º | H:140º V:120º | H:140º V:120º |
| リフレッシュレート | 1920Hz | ||||
| カラー階調処理 | 14-16bit | ||||
| 防護レベル | IP30 Front IP65,Rear IP54 |
IP30 Front IP65,Rear IP54 |
Front IP65,Rear IP54 | Front IP65,Rear IP54 | Front IP65,Rear IP54 |
| 動作湿度 | 10%-60%RH 10%-90%RH |
10%-60%RH 10%-90%RH |
10%-90%RH | 10%-90%RH | 10%-90%RH |
| 動作温度 | -20℃～+45℃ | ||||
| 最大スタック | 20pcs | ||||
| 最大吊り下げ | 20pcs | ||||
| 曲面設置(可選択) | -7.5°~+7.5° | ||||
| 寿命 | 50,000 hrs | ||||
| 保管温度/湿度 | -40℃～+60℃；10%-60%RH |
