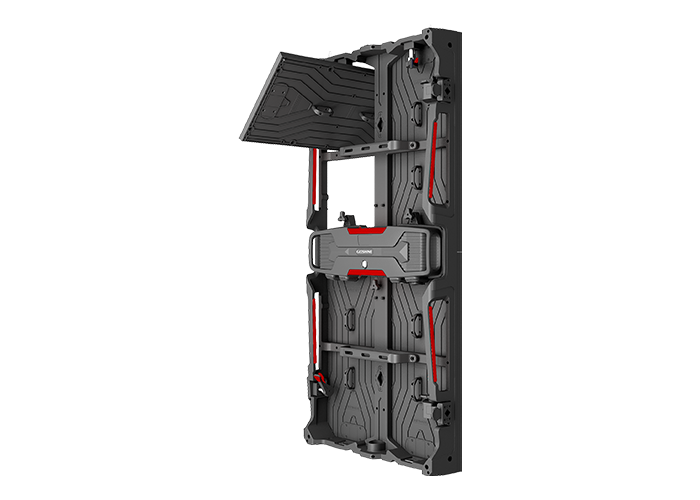

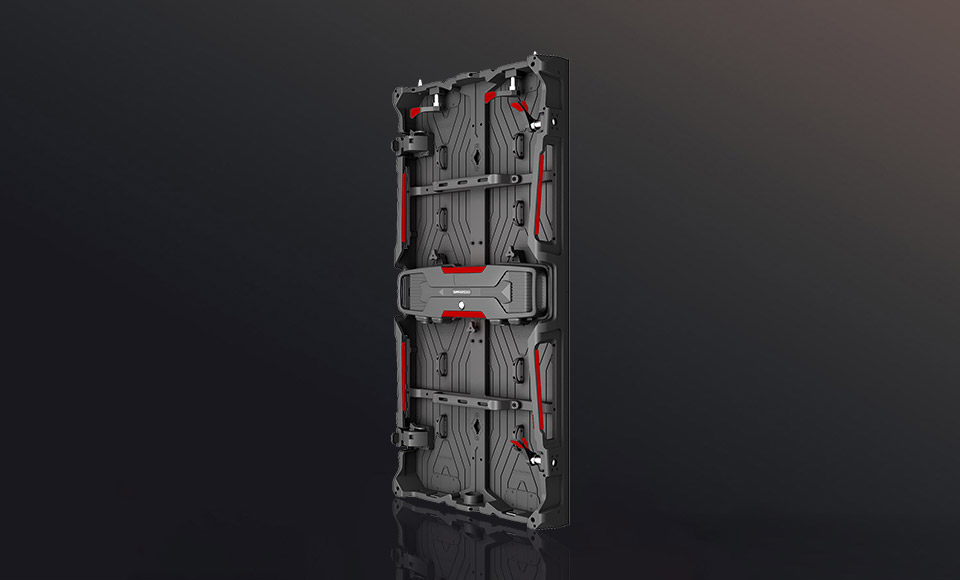

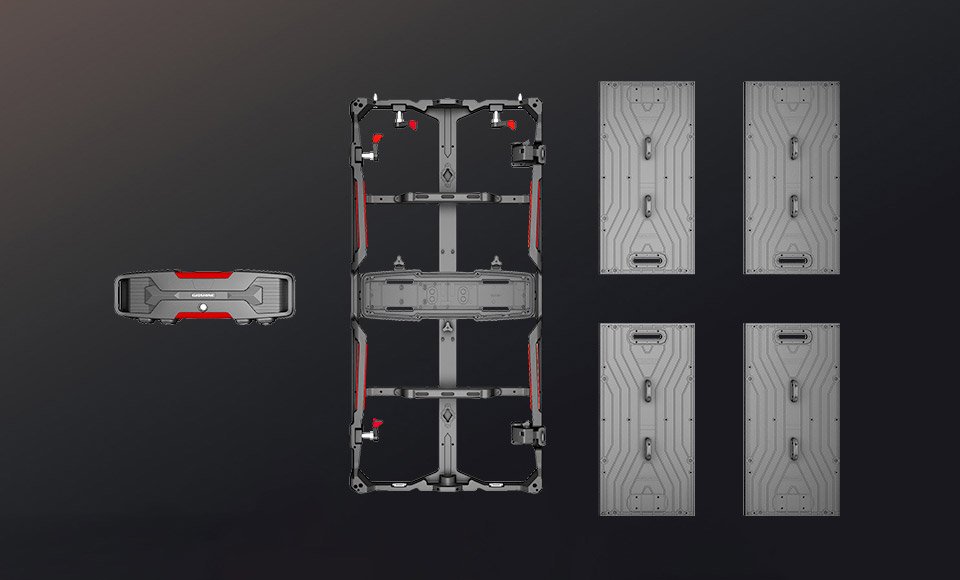

Legend series is still keeping the concise and great momentum style; it adopts modular design and also the benchmark of industrial design.
High configuration waterproof Neutrik connector
IP rate IP65/IP54
Legend series has two kinds of cabinet versions，straight and curved cabinet.

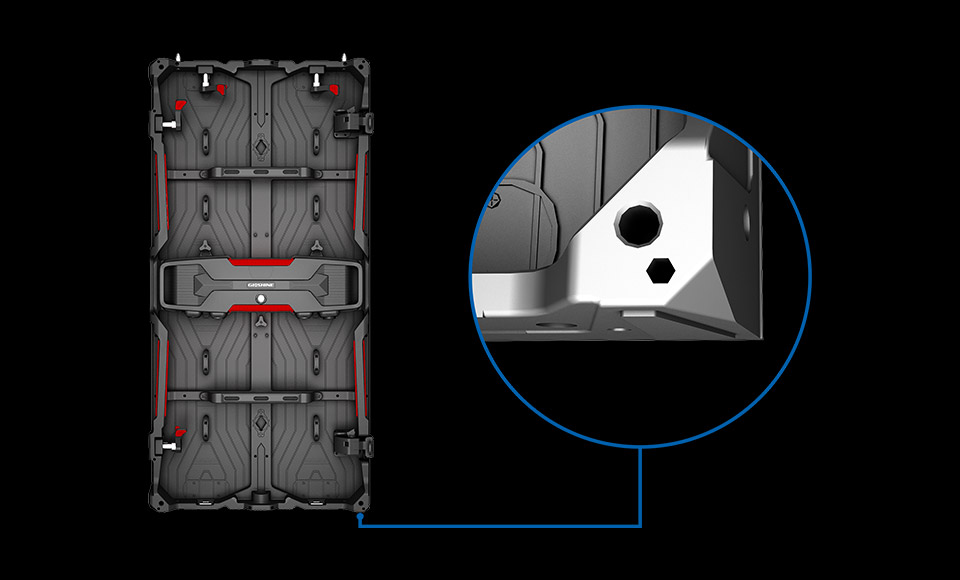

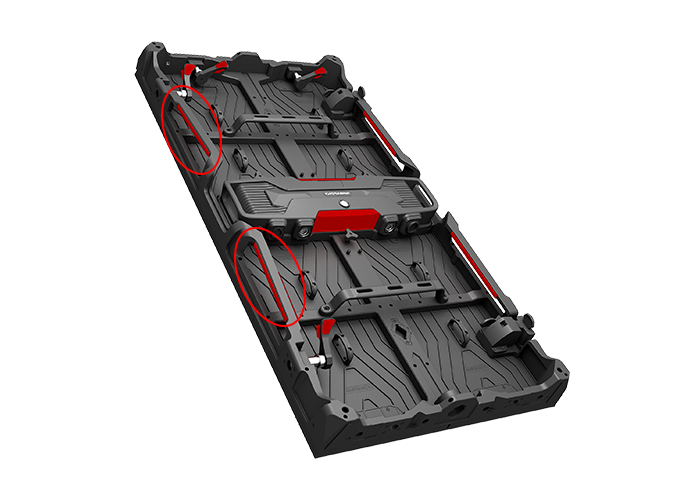

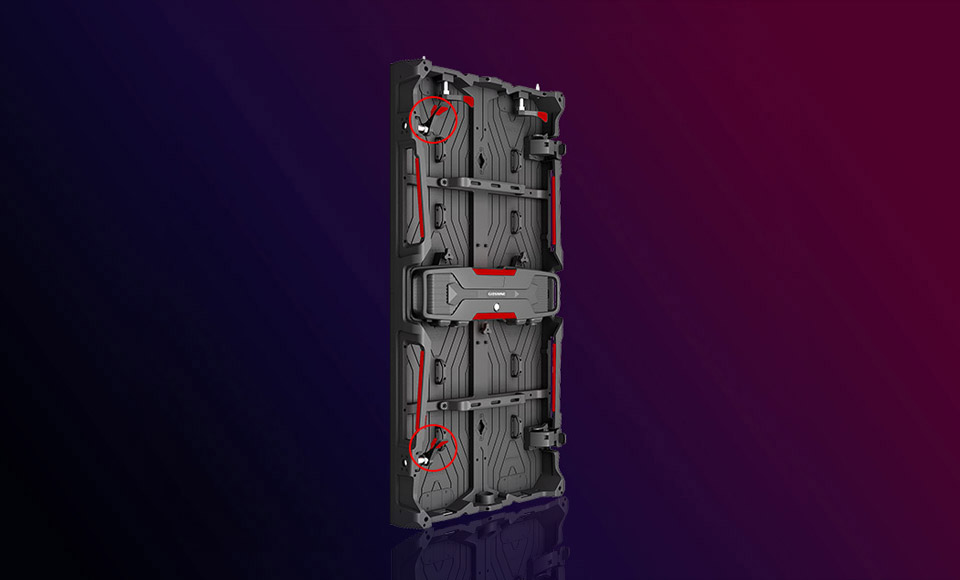

The left and right sides take-up unit is benefit to assemble the cabinet and reduce the seams during the assembly.
| 品番 | Legend 3.91(Outdoor) | Legend 4.81(Outdoor) | Legend 5.95(Outdoor) |
| ピクセルピッチ | 3.91mm | 4.81mm | 5.95mm |
| LED | SMD1921 | ||
| ドット密度 | 65536pixel/㎡ | 43264pixel/㎡ | 28224pixel/㎡ |
| 輝度 | 3500-4500nits | 5000-6000nits | 5000-6000nits |
| 色温度 | 6500-9500k | ||
| ドライブモード | 1/16 | 1/13(1/7 scan optional ) | 1/7 |
| パネルサイズ(W×H×D) | 500×1000×86mm / 19.7"×39.4"×3.4" | ||
| パネル解像度 | 128*256pixel | 104*208pixel | 84*168pixel |
| パネル重量 | 12.9kg/28.44lb | ||
| パネル材質 | マグネシウム合金 | ||
| 最大消費電力 | ≦800w/㎡ | ||
| 平均消費電力 | ≦400w/㎡ | ||
| 視野角 | H:160º V:140º | ||
| リフレッシュレート | 1920Hz/3840Hz | ||
| カラー階調処理 | 14-16bit | ||
| 防護レベル | Front IP65,Rear IP54 | ||
| 動作湿度 | 10%-90%RH | ||
| 動作温度 | -20℃～+45℃ | ||
| 最大スタック | 12pcs | ||
| 最大吊り下げ | 12pcs | ||
| 曲面設置(可選択) | -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° | ||
| 寿命 | 50,000 hrs | ||
| 保管温度/湿度 | -40℃～+60℃；10%-60%RH |
