Product Militant series

Militant series

  • Fast Installation

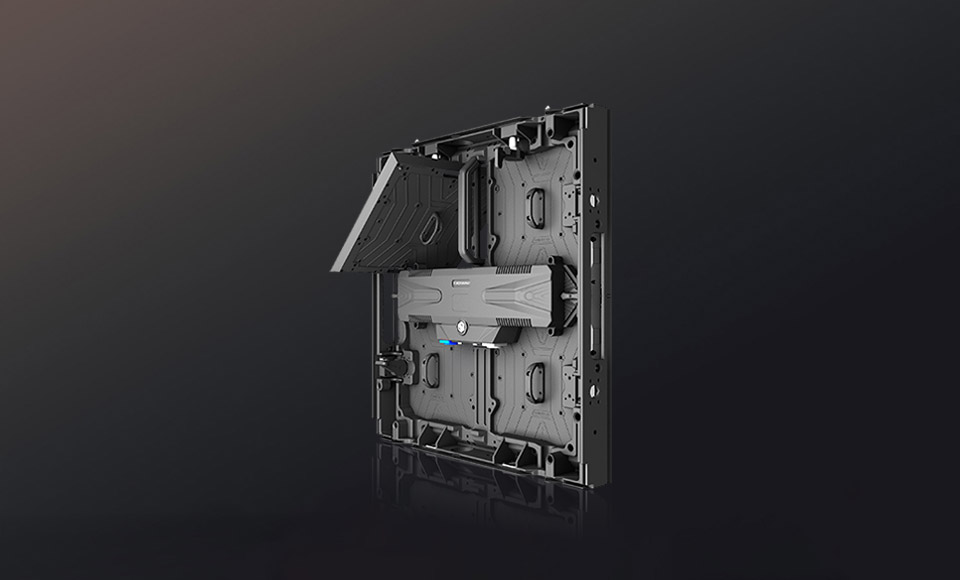

  • Easy Repair

  • Wide Viewangle

  • 90° stitching

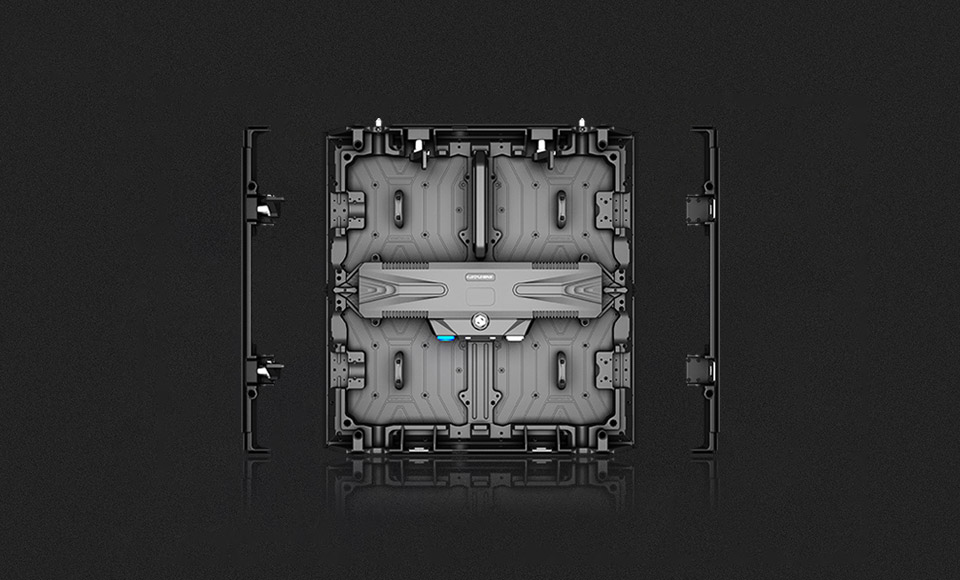

Lock Installation

No screws

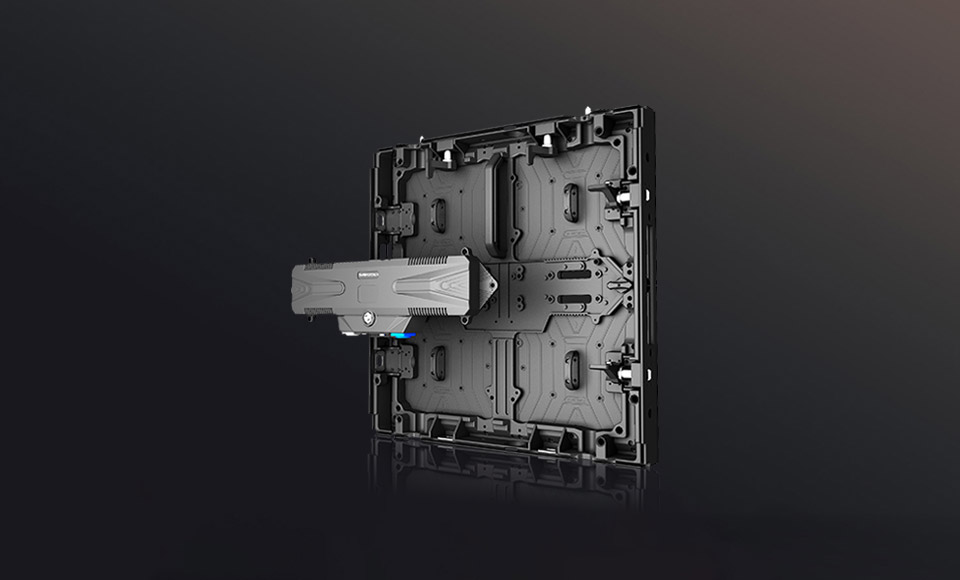

Integration of back cover

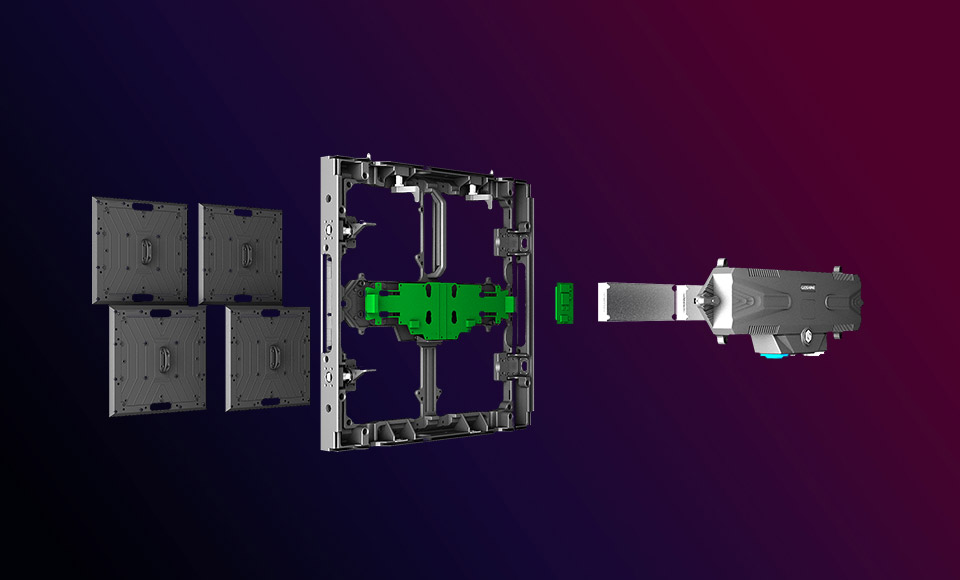

Frame assembly removal

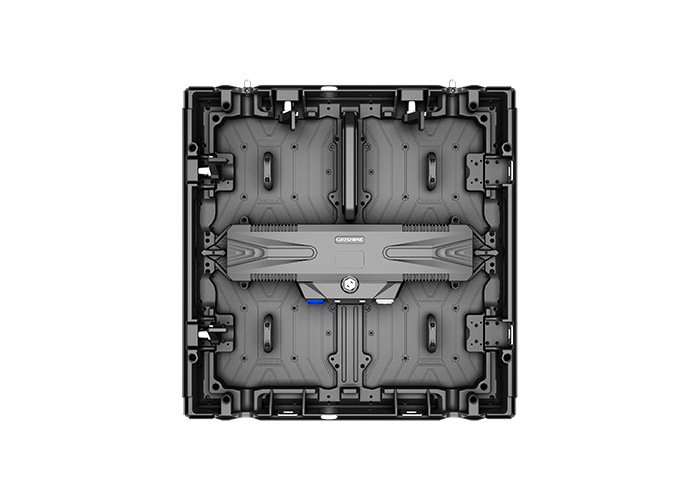

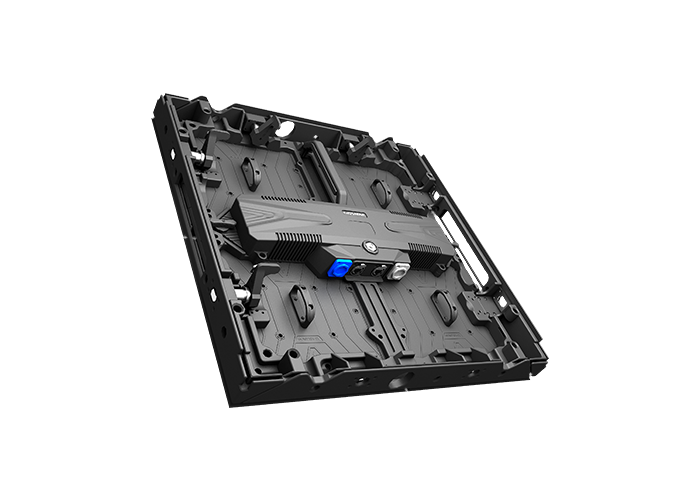

Neutrik Signal Plug-in
Newtrick power Plug-in

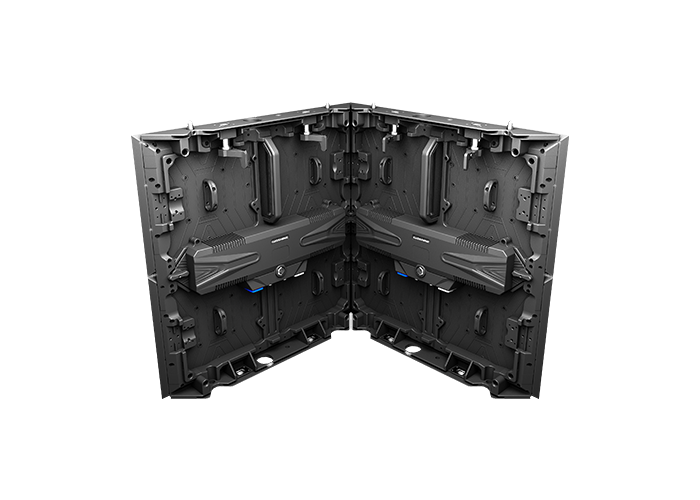

Support 90°splicing and it can be spliced with MT LITE 90° Angle

Support inner and outer arc 15(2.5°/unit,only support arc lock)

Technical parameter

Model No. Militant 2.36(Indoor) Militant 2.85(Indoor)
Pixel Pitch 2.36mm 2.85mm
LED SMD1515 SMD2020
Pixel Density 178084pixel/㎡ 122500pixel/㎡
Brightness 1000-1300nits
Color Temperature 6500-9500k
Scan 1/21 1/29
Panel Dimension(W*H*D) 496mm×496mm×62mm /19.5"×19.5"×2.4"
Panel Resolution 210×210pixel 174×174pixel
Panel Weight  8.00kg/17.63lb
Cabinet Material Die casting aluminum
Max Power Consumption ≦650w/㎡
Average Power Consumption ≦325w/㎡
Viewing Angle H:160º  V:140º
Refresh Rate 3840Hz
Gray Scale 14-16bit
IP Rating IP30
Operating Humidity 10%-60%RH
Operating Temperature -20℃~+45℃
Max. Stacking 10m
Max. Hanging 10m
Curve(Optional)  -15°/-12.5°/-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°/12.5°/15°
Lifetime 50,000hrs
Storage Temp/Humidity -40℃~+60℃;10%-60%RH
