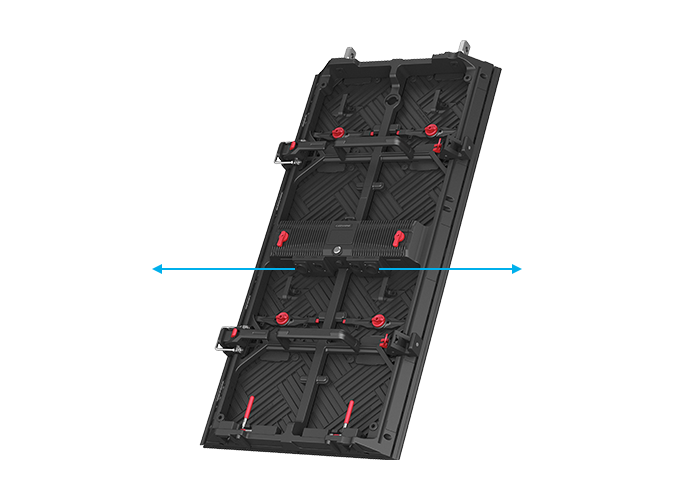

High Protection
The power and signal connectors are designed to face vertically downwards, minimizing exposure to rainwater and enhancing overall waterproof performance.

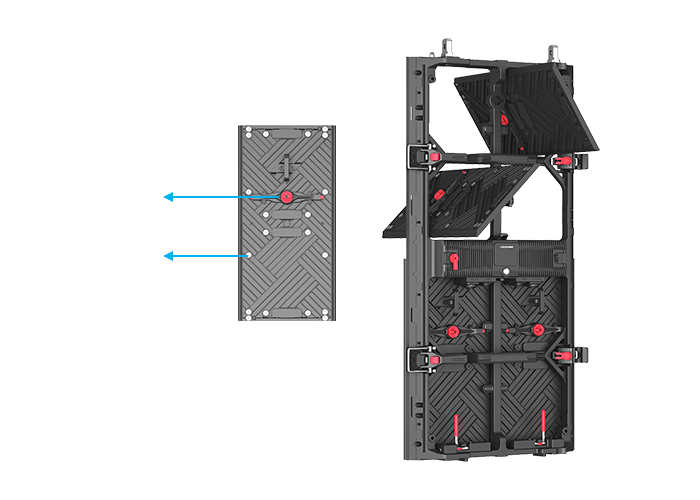

Tool-free Maintenance
Optional magnetic modules for fast front maintenance. Combined with rotary knob fixation, this dual-securement method can prevent misalignment during transportation and avoid the risk of falling from height.

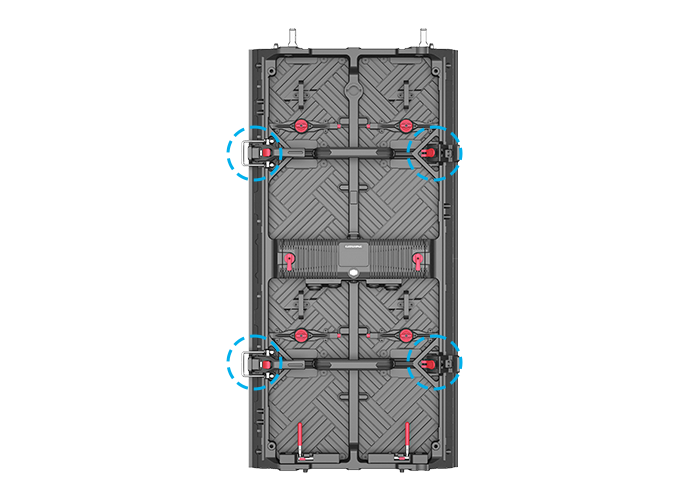

Efficient Installation
Incorporating a left-right bidirectional push-pull lock design, the durable, large-sized locking system connects panels quickly and firmly, ensuring a stable screen structure and significantly improving on-site installation and dismantling efficiency.

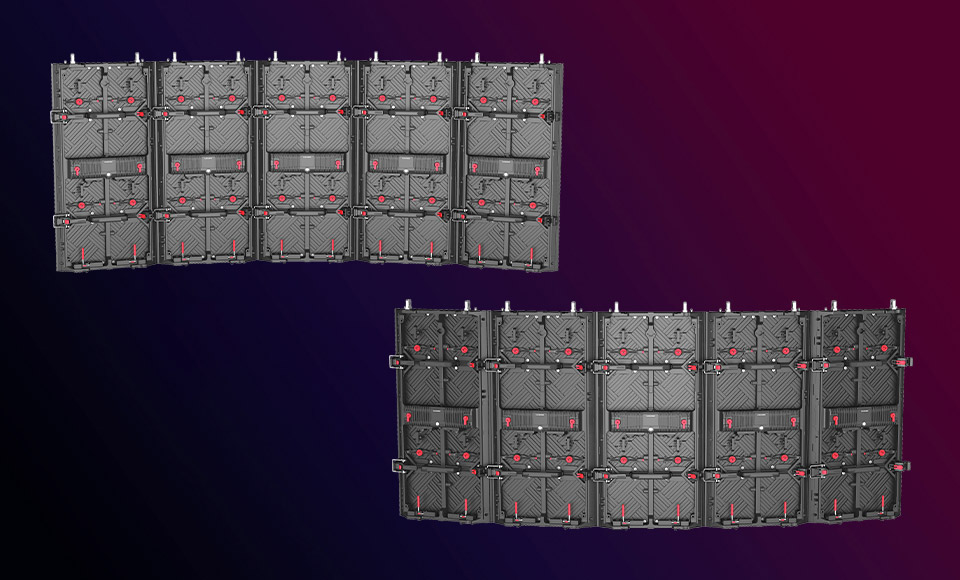

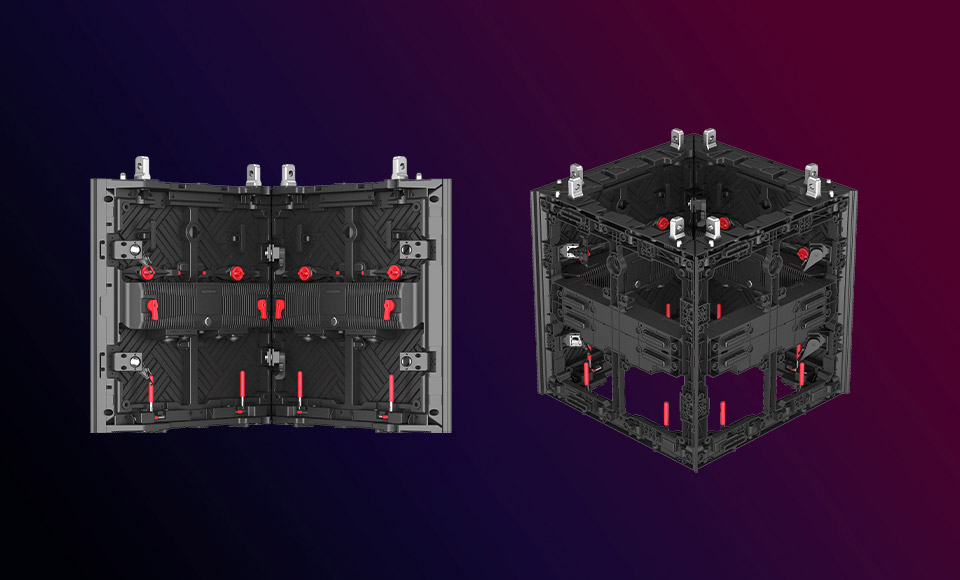

ZS Pro II Series supports curved splicing with adjustable angles:-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°.
Utilizes black LEDs to achieve high brightness, high contrast ratio, rich colors, HD image quality, and excellent detail representation.
Features a 7680Hz high refresh rate, ensuring smooth motion graphics without blurring or smearing.

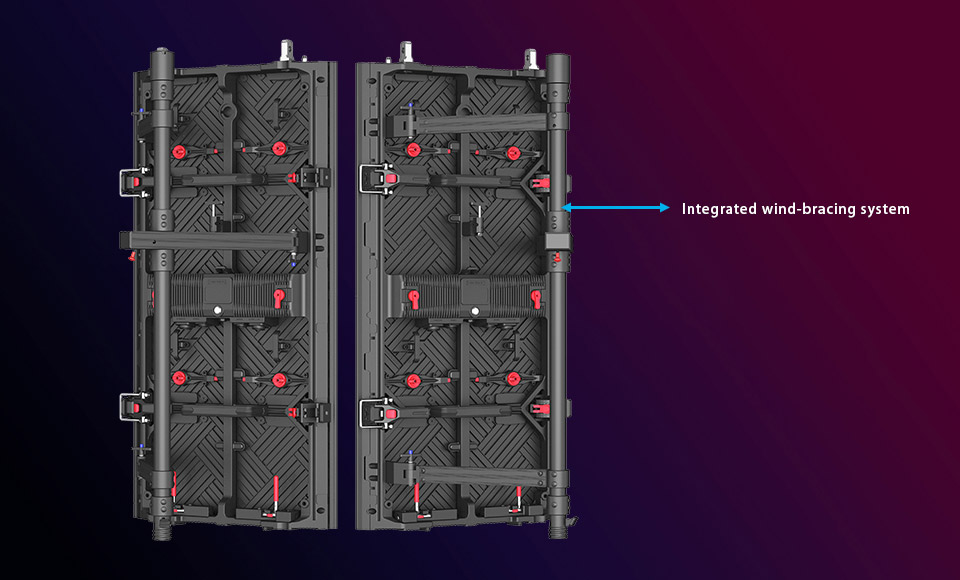

Equipped with integrated wind-bracing system(optional) for stable and secure structure, integrating screen fixation, force dispersion, and increasing installation stability functions, supporting stacking&hanging installation up to 20 meters.
|
Model No. |
ZS ProⅡ3.9/ZM ProⅡ3.9 |
ZS ProⅡ4.8/ZM ProⅡ4.8 |
ZS ProⅡ5.9/ZM ProⅡ5.9 |
|
Pixel Pitch |
3.9mm |
4.8mm |
5.9mm |
|
LED Type |
SMD1921/Black SMD1921 |
SMD1921/Black SMD1921 |
SMD1921/Black SMD1921 |
|
Panel Dimension |
500mm*1000mm*90mm |
500mm*1000mm*90mm |
500mm*1000mm*90mm |
|
Scan Rate |
1/16 or 1/8 |
1/13 |
1/7 |
|
Panel Weight |
ZS ProⅡ:13.8kg±10%，ZM ProⅡ:9.5kg±10% |
||
|
Cabinet Material |
Die-Casting Aluminum |
||
|
IP Rating |
Front IP65/Rear IP54 |
||
|
Serviceability |
Module: Front/Rear Maintenance；Power Box: Rear Maintenance |
||
|
Curve |
-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5° |
||
|
Max Stacking/Hanging |
With Wind-Bracing System20m/Without Wind-Bracing System10m |
||
