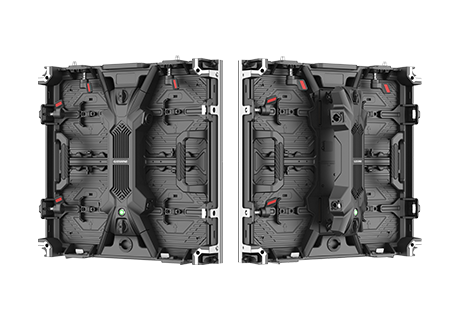

DN Series

Application Scenario

Indoor

Model No.

DN1.2

DN1.5

DN1.9

DN1.9

DN/DN Plus2.6

DN/DN Plus2.9

DN/DN Plus3.9

Pixel Pitch

1.25mm

1.5mm

1.9mm

1.9mm

2.6mm

2.9mm

3.9mm

LED Type

SMD1010

SMD1212

IMD 2 in 1

SMD1515

SMD1515

SMD2020

SMD2020

Packaging Technology

GOB/HOB

GOB/HOB

SMD

GOB/HOB

SMD

SMD

SMD

Pixel Density

 640000 pixel/㎡

 409600 pixel/㎡

262144 pixel/㎡

262144 pixel/㎡

147456 pixel/㎡

112896 pixel/㎡

65536 pixel/㎡

Panel Dimension

DN:500mm*500mm*76mm

DN:500mm*500mm*76mm

DN:500mm*500mm*76mm

DN:500mm*500mm*76mm

DN Plus:

500mm*1000mm*76mm
DN:

500mm*500mm*76mm

DN Plus:

500mm*1000mm*76mm
DN:

500mm*500mm*76mm

DN Plus:

500mm*1000mm*76mm
DN:

500mm*500mm*76mm

Panel Resolution

DN:400*400 pixel

DN:320*320 pixel

DN:256*256 pixel

DN:256*256 pixel

DN Plus:192*384 pixel
DN:192*192 pixel

DN Plus:168*336 pixel
DN:168*168 pixel

DN Plus:128*256 pixel
DN:128*128 pixel

Scan Rate

1/40

1/32

1/32 or 1/16

1/32 or 1/16

1/24 or 1/16 or 1/8

1/21

1/16

Brightness

600-800nits

600-800nits

600-800nits

600-800nits

800-1000nits

800-1000nits

800-1000nits

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16Bit

Color Temperature

6500-9500K

Panel Weight

DN:7.2kg±10%  DN Plus:12.2kg±10%
GOB: DN:7.5kg±10%  DN Plus:12.7kg±10%
Redundant: DN:8kg±10%

Panel Material

Die-Casting Aluminum

Max. Power Consumption

≤580w/㎡

Ave. Power Consumption

≤290w/㎡

Viewing Angle

H:160°/V:140°

Working Voltage

AC200-240V~50/60Hz or AC100-240V~50/60Hz

IP Rating

IP30

Maintenance

Front/Rear

Curve

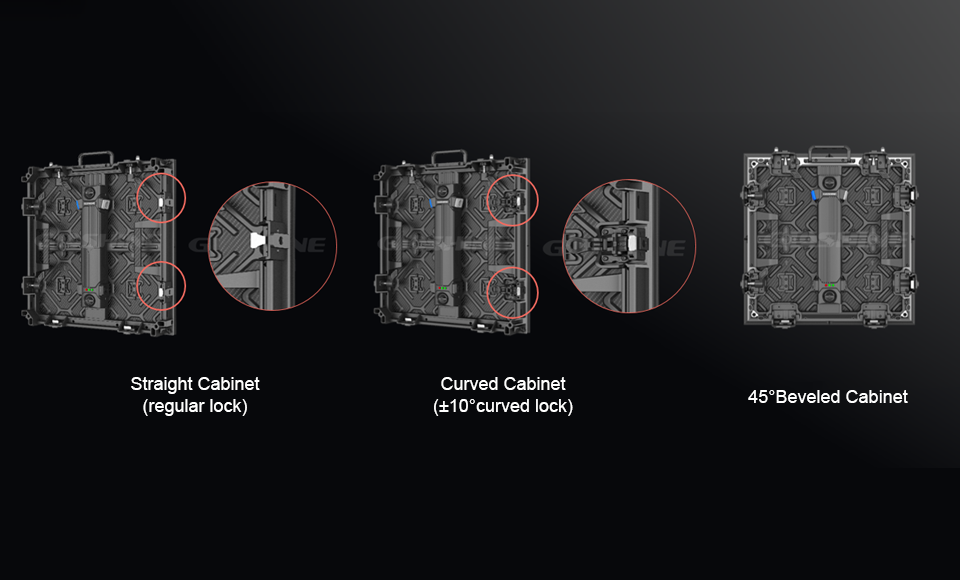

Curved cabinet/45° beveled cabinet（±10° curved lock）：-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°
90° lock or 90° connector plate can do vertical splicing.

Max. Stacking/Hanging Height

10m

Lifespan

50000H

Operating Temp/Humidity

-20℃~+45℃；10%~60%RH

Storage Temp/Humidity

-40℃~+60℃；10%~60%RH

Control System

Novastar/Magnimage/Colorlight

Certification

MET/CE/EMC
