RB-B Series Cost-Effective LED Display

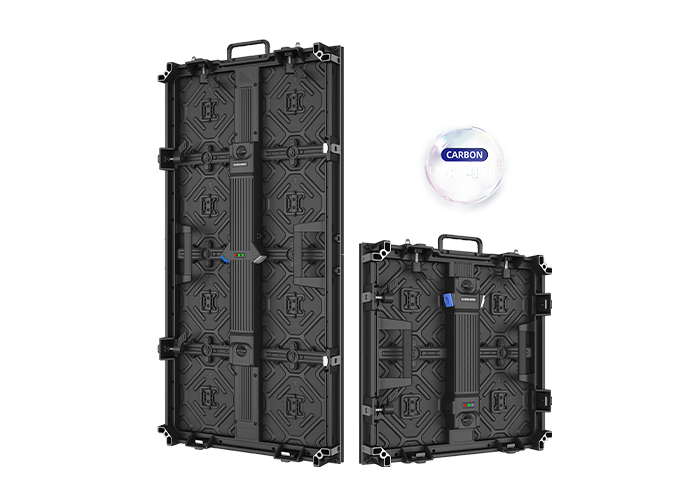

Ultra Thin & LightWeight Cabinet

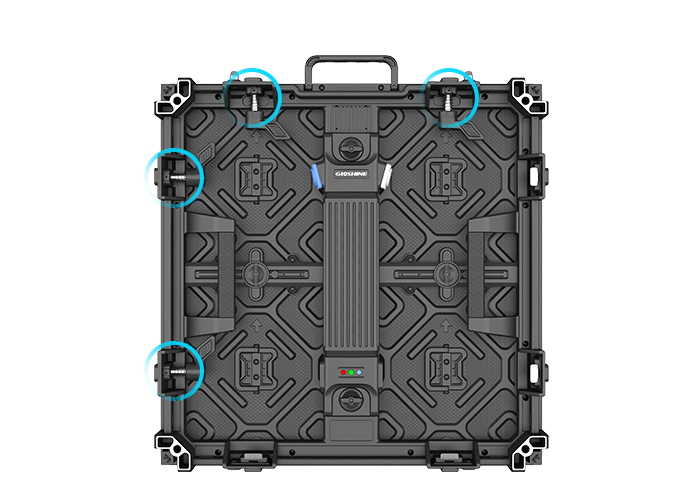

Dual Top/Side Locks Design

Dual top/side locks for each cabinet.

Steel core with spring locking system.

•Efficient and quick installation

•Seamless splicing

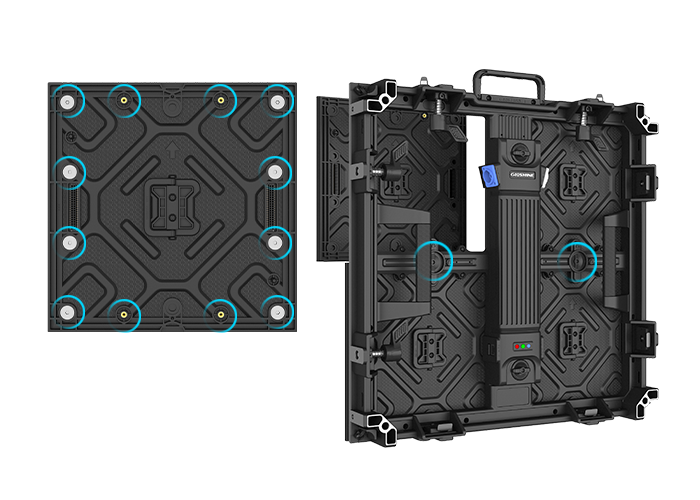

Magnetic Modules

Magnetic Modules+Rotary Knob Design

•Quick and convenient front maintenance.

•Prevent misalignment during transportation.

•Avoid the risk of falling from heights.

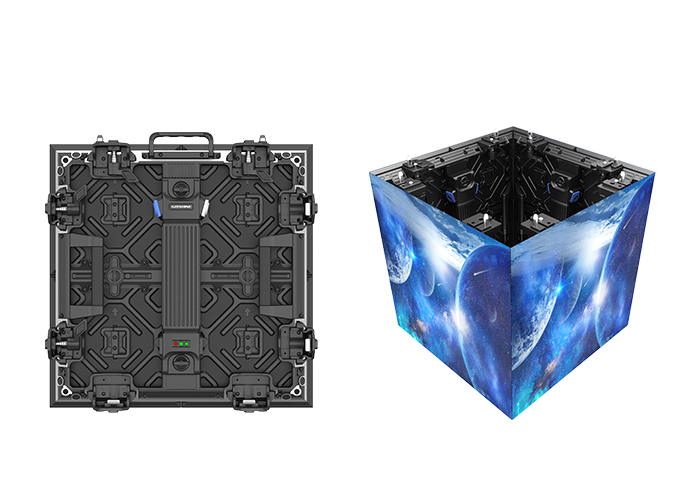

45° Beveled Cabinet (Optional)

Available for 45° beveled cabinet, supports cubic column/cube/vertical splicing etc.

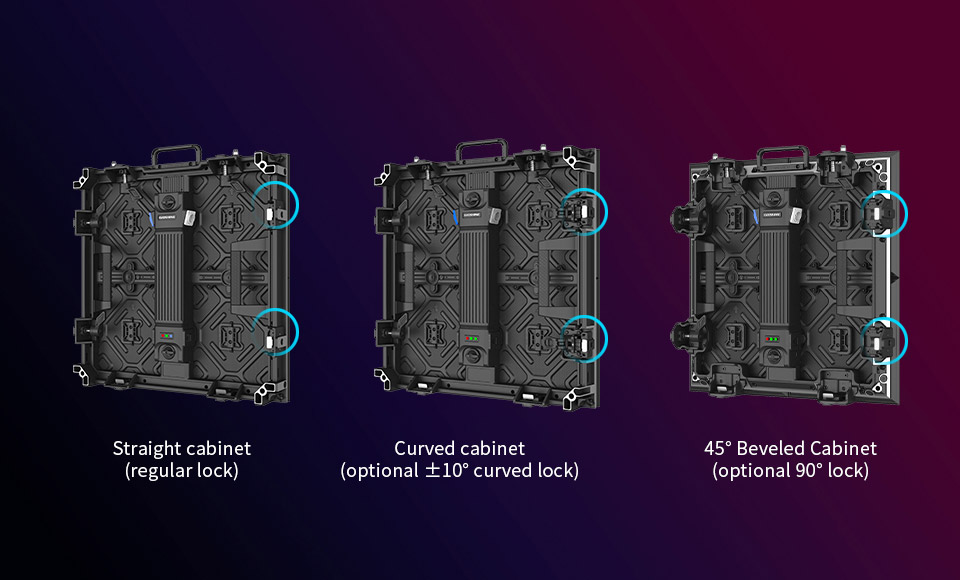

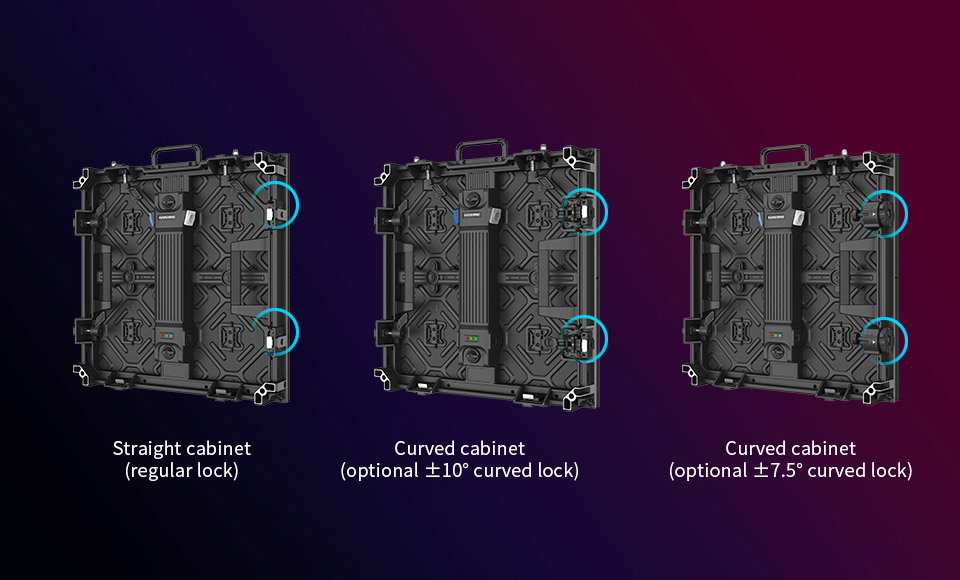

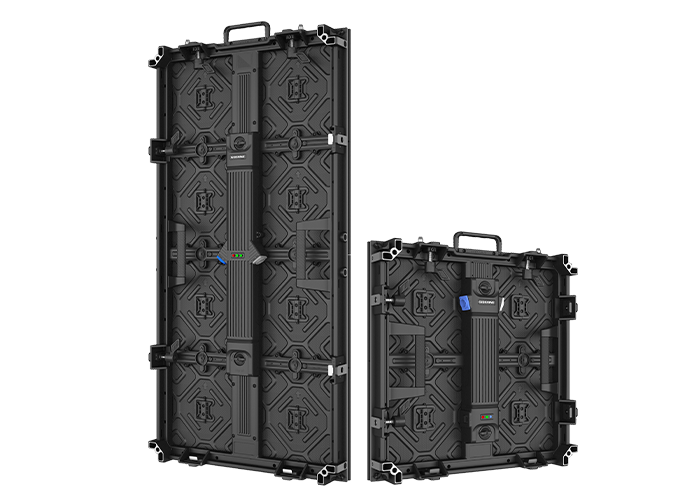

Multiple Cabinets for Option

RB-B series offers multiple cabinet options to meet complex creative shapes and enhance scene adaptation flexibility.

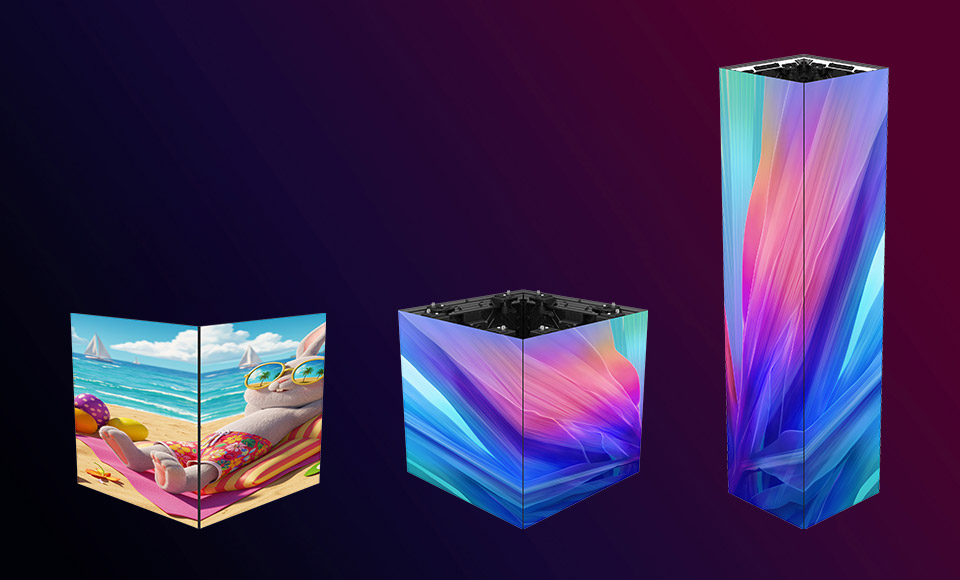

Cubic Column/Cube/Vertical Splicing

•RB-B supports four-sided cutting edge.

•RB PLUS-B supports two-side cutting edge (left and right).

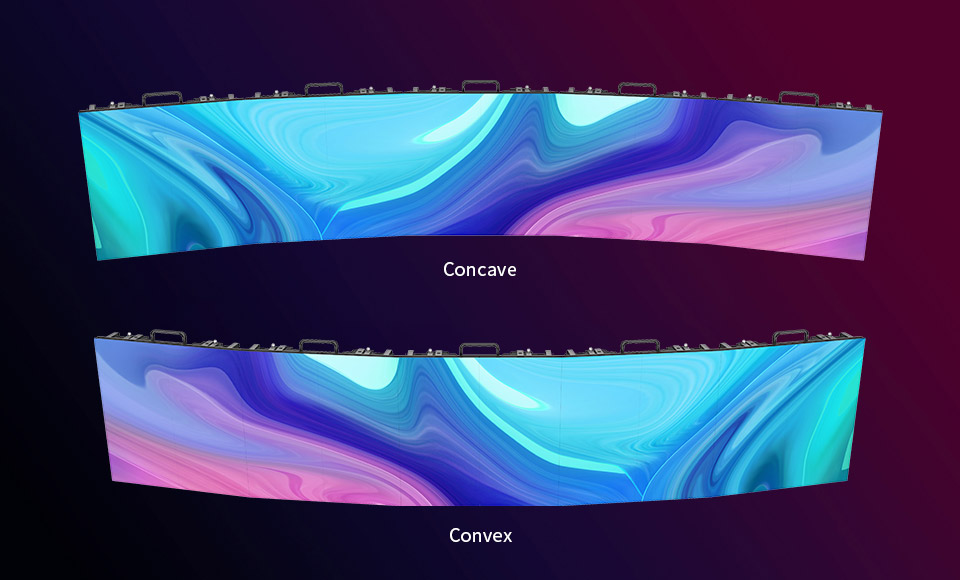

Curved Screen

RB-B Series available splicing for curved shape, easily radian adjustment, efficiently installation.

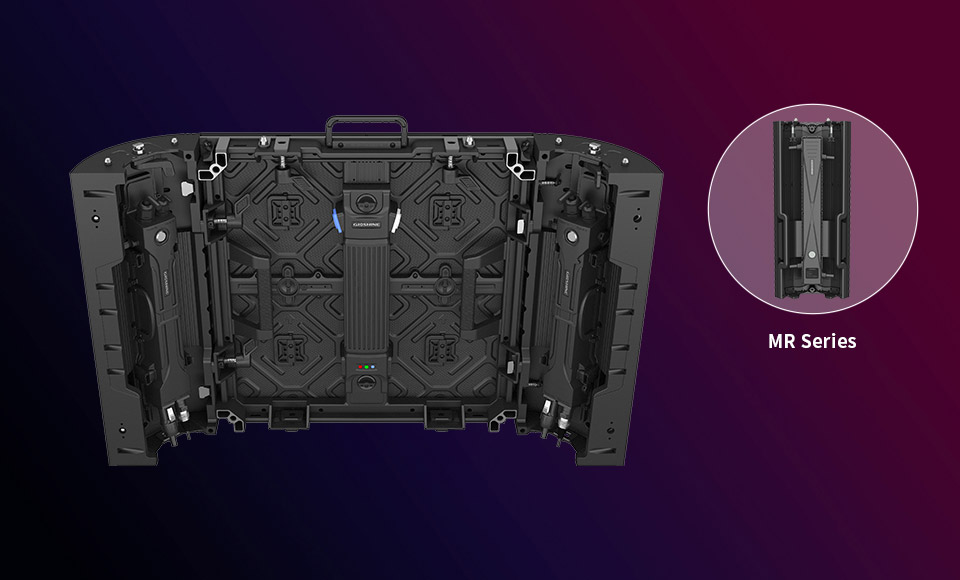

Splice with 90° Corner Fillet

RB-B Series can splice with 90° corner fillet screen MR Series, creating a seamless and smooth round corner visual experience.

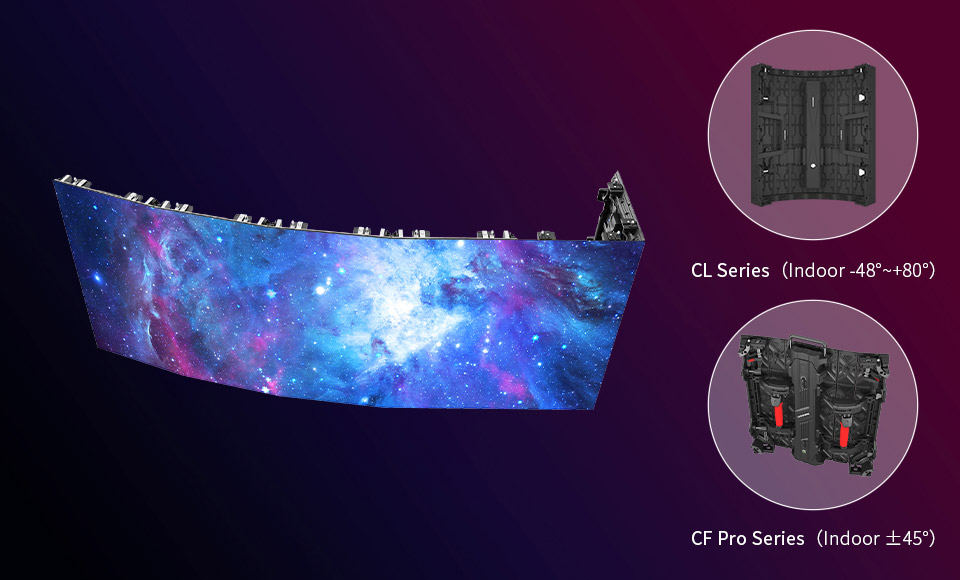

Splice with Flexible Screen

RB-B Series indoor available for splicing with flexible screen, offering versatile designs to meet various creative needs.

Technical parameter

Model No.	RB-B1.9	RB-B/RB PLUS-B2.9	RB-B/RB PLUS-B2.9	RB-B/RB PLUS-B3.9
Pixel Pitch	1.9mm	2.6mm	2.9mm	3.9mm
LED Type	2 in 1	SMD1515	SMD2020	SMD2020
Packaging Technology	SMD	SMD	SMD	SMD
Pixel Density	262144 pixel/㎡	147456 pixel/㎡	112896 pixel/㎡	65536 pixel/㎡
Panel Dimension	RB-B:500mm500mm76mm	RB Plus-B:500mm1000mm76mm RB-B:500mm500mm76mm	RB Plus-B:500mm1000mm76mm RB-B:500mm500mm76mm	RB Plus-B:500mm1000mm76mm RB-B:500mm500mm76mm
Panel Resolution	RB-B:256*256 pixel	RB Plus-B:192384 pixel RB-B:192192 pixel	RB Plus-B:168336 pixel RB-B:168168 pixel	RB Plus-B:128256 pixel RB-B:128128 pixel
Scan Rate	1/32	1/24	1/21 or 1/28	1/16
Brightness	600-800nits	600-800nits	600-800nits	600-800nits
Refresh Rate	3840Hz/7680Hz
Gray Scale	14-16Bit
Color Temperature	6500-9500K
Panel Weight	RB-B:7.2kg±10% RB Plus-B:12.2kg±10% Dual Redundancy:8kg±10%
Panel Material	Die-Casting Cabinet
Max. Power Consumption	≤580w/㎡
Ave. Power Consumption	≤290w/㎡
Viewing Angle	H:160°/V:140°
Working Voltage	AC200-240V~50/60Hz or AC100-240V~50/60Hz
IP Rating	IP30
Maintenance	Front/Rear
Curve	Curved Cabinet/45° Beveled Cabinet (±10° curved lock): -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° 90°lock/connecting plate: 90°
Max. Stacking/Hanging Height	10m
Operating Temp/Humidity	-20℃~+45℃；10%~60%RH
Storage Temp/Humidity	-40℃~+60℃；10%~60%RH
Control System	Novastar/Magnimage/Colorlight
Product Certification	MET/CE/EMC
