MV Ultra Series

Model No.

MV Ultra1.5

MV Ultra1.9

MV Ultra1.9

MV Ultra2.6

MV Ultra2.9

Pixel Pitch

1.5

1.9

1.9

2.6

2.9

LED Type

SMD1212

SMD1515

2in1

SMD1515

SMD2020

Packaging Technology

GOB/HOB

GOB/HOB

/

/

/

Pixel Density

409600/㎡

262144/㎡

262144/㎡

147456/㎡

112896/㎡

Panel Dimension

500mm*500mm*76mm

500mm*500mm*76mm

500mm*500mm*76mm

500mm*500mm*76mm

500mm*500mm*76mm

Panel Resolution

320*320pixel

256*256pixel

256*256pixel

192*192pixel

168*168pixel

Scan Rate

1/40 or 1/32 or 1/16

1/32 or 1/16

1/32 or 1/16

  1/24

  1/21

Brightness

600-800nits

600-800nits

600-800nits

800-1000nits

800-1000nits

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16Bit

Color Temperature

6500-9500K

Panel Weight

8.5kg±10%

Panel Material

Die-Casting Cabinet

Max. Power Consumption

580W/㎡

Ave. Power Consumption

290W/㎡

Viewing Angle

H:160°/V:140°

Working Voltage

AC200-240V~50/60Hz or AC100-240V~50/60Hz

IP Rating

IP30

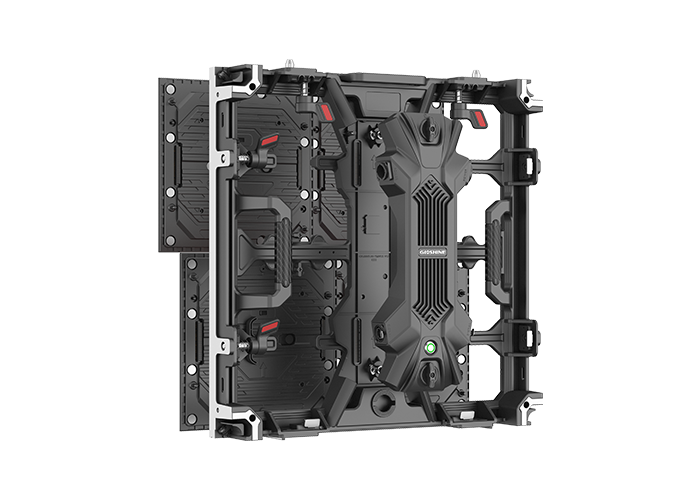

Maintenance

Front/Rear

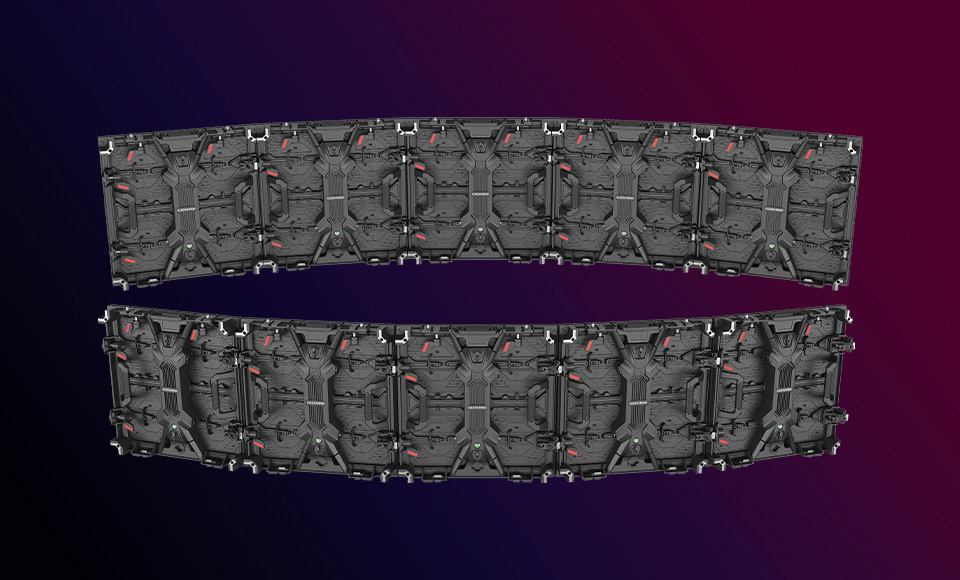

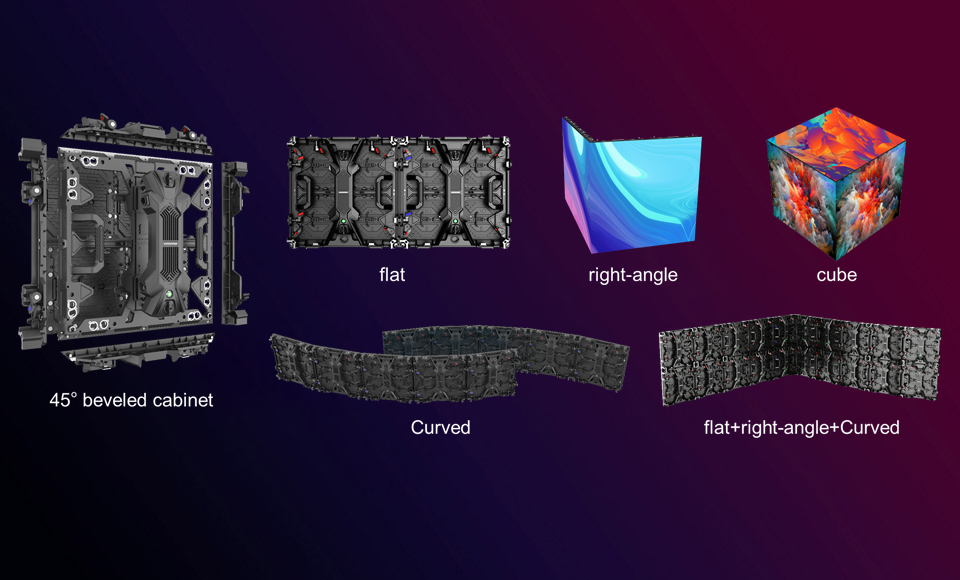

Curve

-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°

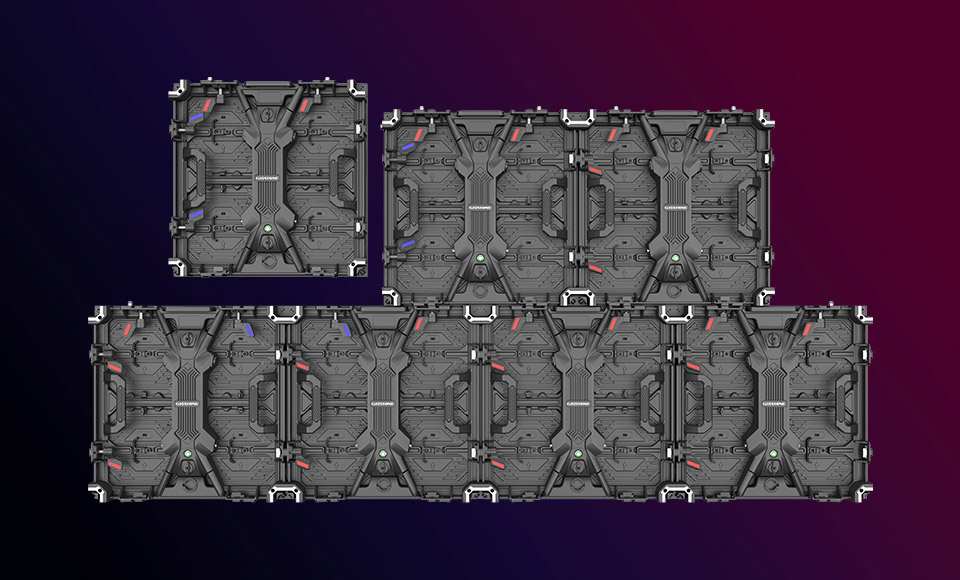

Max. Stacking/Hanging

10m

Operating Temp/Humidity

-20℃~+45℃；10%~60%RH

Storage Temp/Humidity

-40℃~+60℃；10%~60%RH

Control System

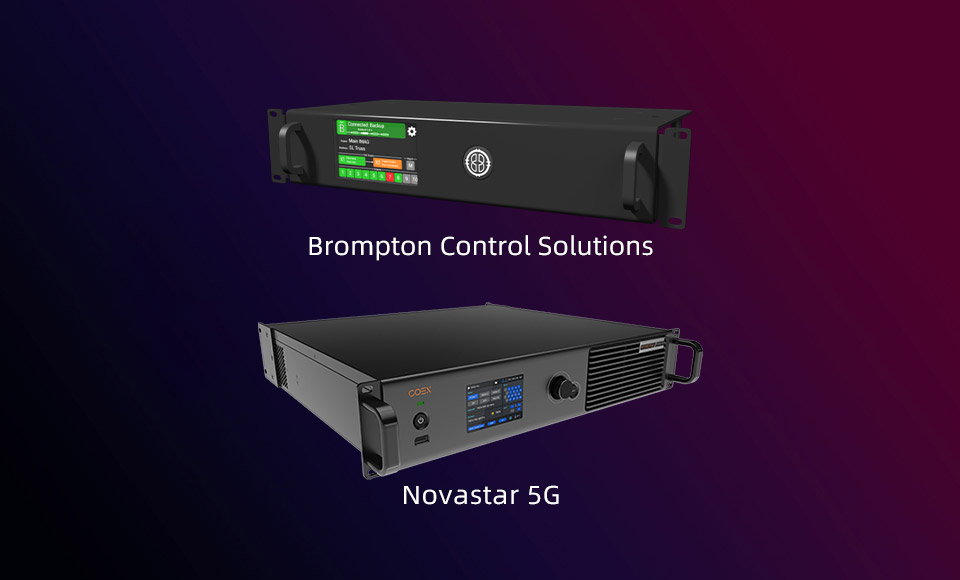

Novastar/Colorlight/Magnimage/Brompton
