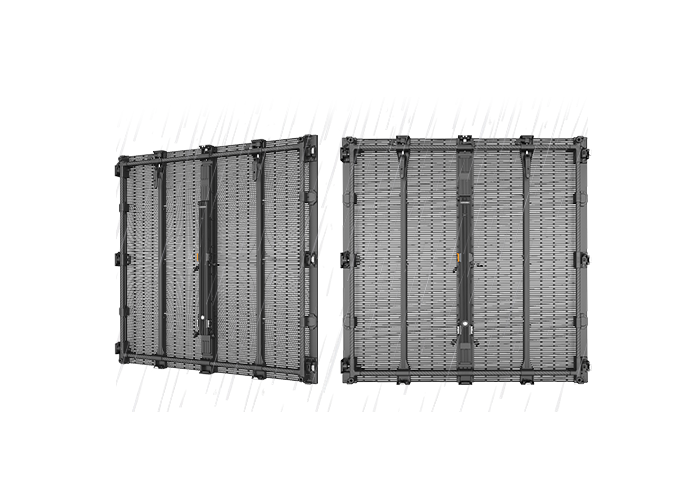

IP65
CB MAX features excellent IP65 waterproof performance.

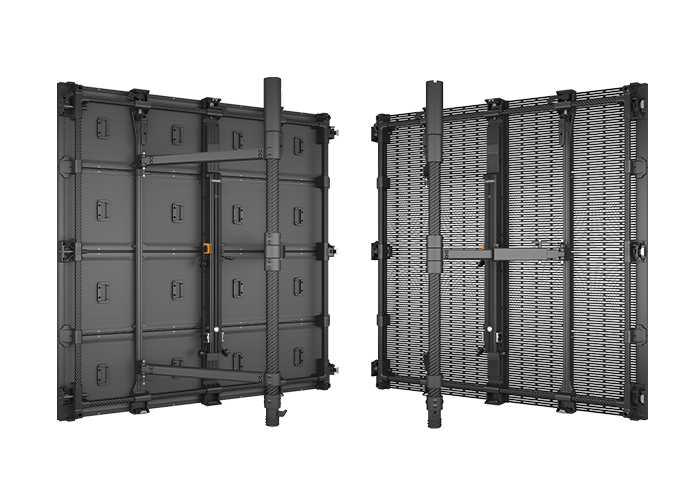

Integrated Wind-Bracing System
CB MAX equipped with integrated wind-bracing system, enhancing structural stability to resist strong winds and ensure safe outdoor operation.

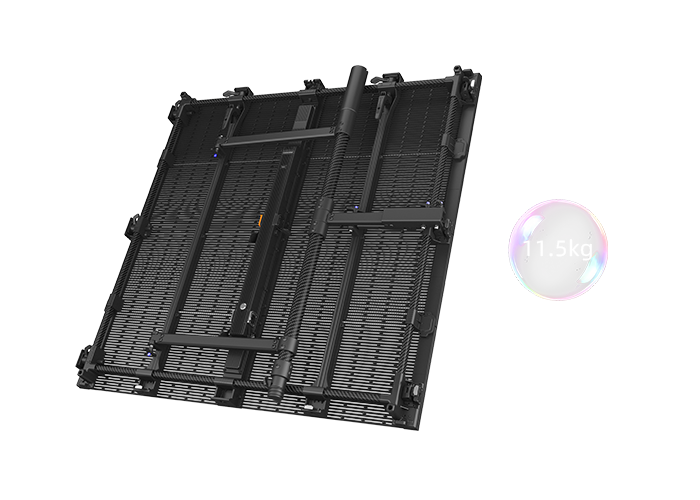

Lightweight Design
30% lighter than conventional products.

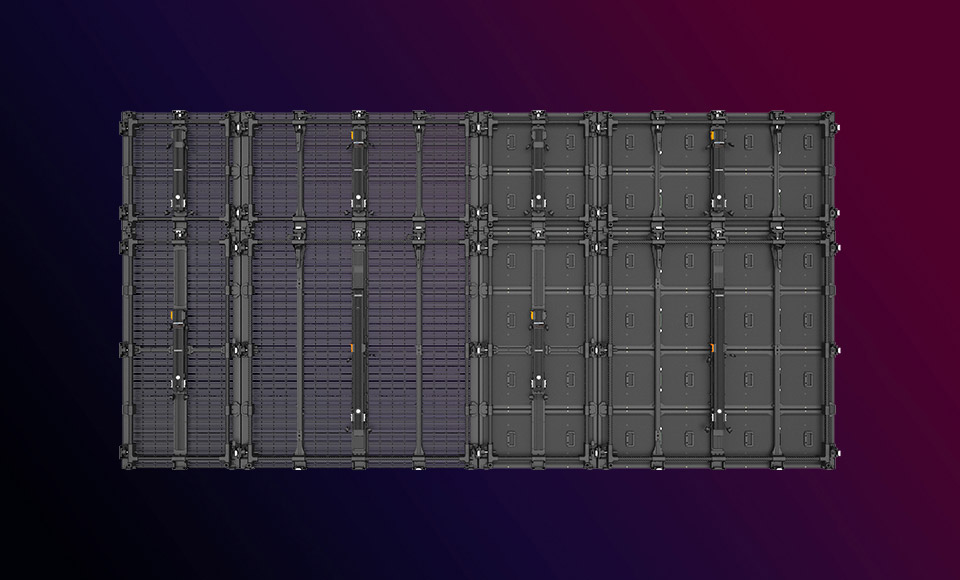

Supports mix splicing with CB II Series cabinets, enabling flexible combination and seamless integration for diverse installation needs.
Max hanging height up to 15 meters;
with wind-bracing frame up to 20 meters.
|
CB MAX (Outdoor) |
||||||
|
Model No. |
CB MAX3.9-7.8 |
CB MAX3.9 |
CB MAX4.8 |
CB MAX5.9 |
CB MAX6.9 |
CB MAX8.9 |
|
Pixel Pitch |
3.9-7.8 |
3.9 |
4.8 |
5.9 |
6.9 |
8.9 |
|
Panel Dimension |
1000mm*1000mm*74.5mm |
1000mm*1000mm*74.5mm |
1000mm*1000mm*74.5mm |
1000mm*1000mm*74.5mm |
1000mm*1000mm*74.5mm |
1000mm*1000mm*74.5mm |
|
Scan Rate |
1/16 or 1/8 |
1/16 |
1/13 |
1/7 |
1/6 |
1/4 |
|
Refresh Rate |
3840Hz/7680Hz |
|||||
|
Panel Weight |
11.5kg±10% |
15.5kg±10% |
15.5kg±10% |
14.5kg±10% |
14kg±10% |
13.5kg±10% |
|
Panel Material |
Die-Casting Magnesium+Carbon Fiber |
|||||
|
IP Rating |
Front IP65/Rear IP54 |
|||||
