ZS III Series

Model No.

ZS III 3.91（Outdoor）

ZM III 3.91（Outdoor）

ZS III 4.81（Outdoor）

ZM III 4.81（Outdoor）

ZS III 6.94（Outdoor）

ZM III 6.94（Outdoor）

Plxel Pitch

3.91mm

4.81mm

6.94mm

LED Type

SMD1921

Pixel Density

65536pixel/m²

43264pixel/m²

20736pixel/m²

Brightness

3500-4500nits

Color Temperature

6500-9500K

Scan Rate

1/16

1/13

1/6

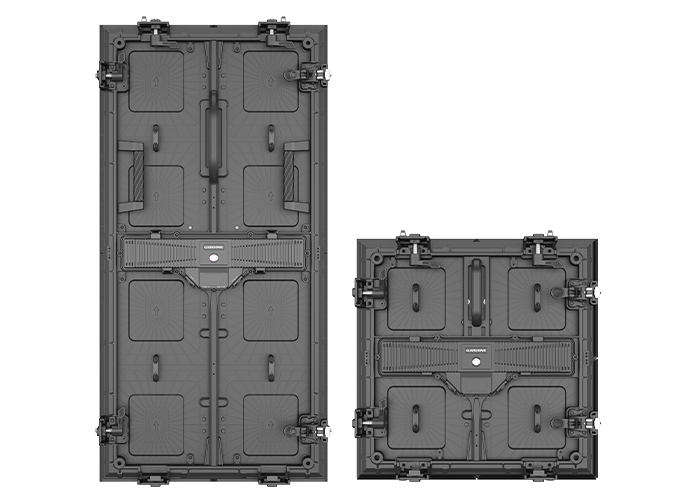

Panel Dimension(W*H*D)

500mm*1000mm*68mm/

19.7''X39.4''X2.67''

500mm*500mm*68mm/

19.7''X19.7''X2.67''

500mm*1000mm*68mm/

19.7''X39.4''X2.67''

500mm*500mm*68mm/

19.7''X19.7''X2.67''

500mm*1000mm*68mm/

19.7''X39.4''X2.67''

500mm*500mm*68mm/

19.7''X19.7''X2.67''

Panel Resolution

128*256pixel

128*128pixel

104*208pixel

104*104pixel

72*144pixel

72*72pixel

Panel Weight

10.5KG±10%

(Magnesiun alloy)

6.5KG±10%

(Magnesiun alloy)

9.4KG±10%

(Magnesiun alloy)

6.0KG±10%

(Magnesiun alloy)

8.6KG±10%

(Magnesiun alloy)

5.2KG±10%

(Magnesiun alloy)

Cabinet Material

Die-Casting Cabinet

Max Power Consumption

≤720w/m²

Ave Power Consumption

≤360w/m²

Viewing Angle

H：140° V：120°

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16bit

Working Voltage

（wide Voltage）

AC100-240V～  50-60Hz

Working Voltage

（narrow Voltage）

AC200-240V～  50-60Hz

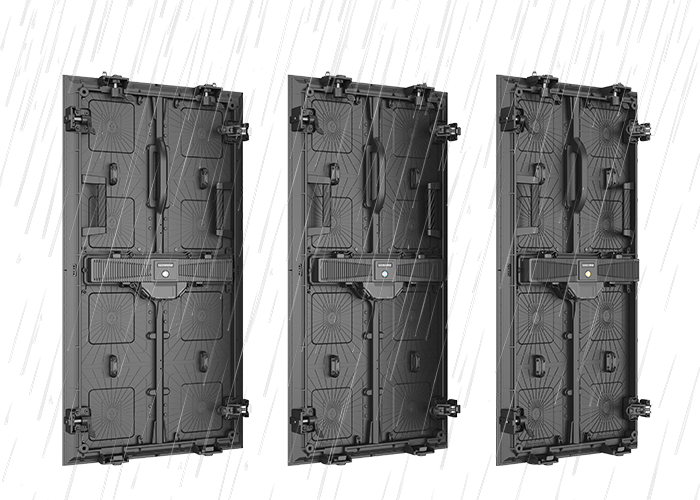

IP Rating

Front IP65,Rear IP54

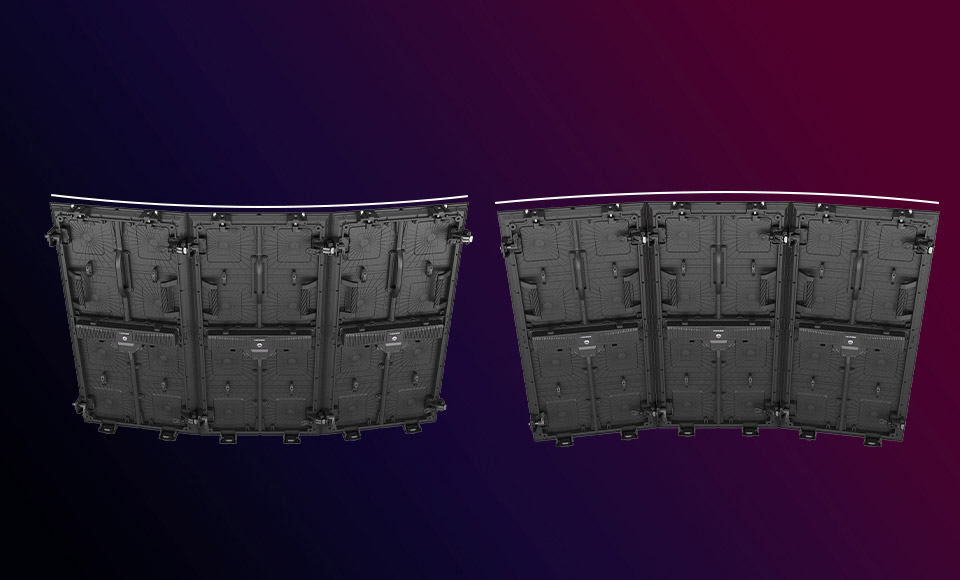

Curve

Optional

Max Stacking/Hanging

10M

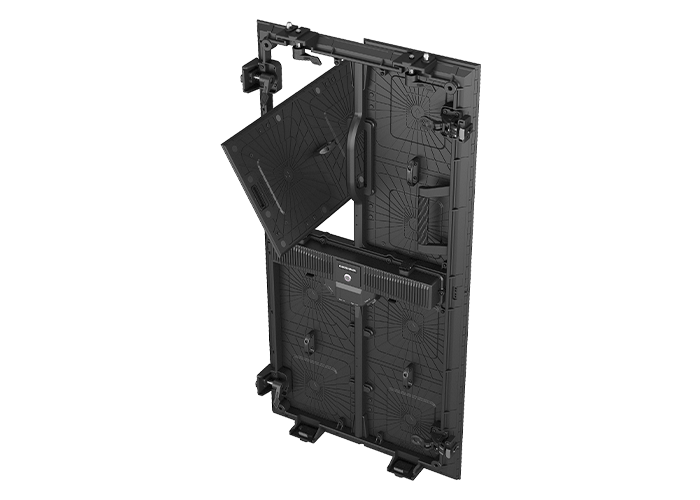

Serviceability

Front/Rear

Lifetime

50000h

Operating Temp/Humidity

-20℃～+45℃：10%-90%RH

Storage Temp/Humidity

-40℃～+60℃：10%-60%RH

Processing platform

Novastar/Colorlight /Magnimage

Model No.

ZS III 4.81（Outdoor）Hollow-out

ZM III 4.81（Outdoor）Hollow-out

ZS III 6.94（Outdoor）Hollow-out

ZM III 6.94（Outdoor）Hollow-out

Plxel Pitch

4.81mm

6.94mm

LED Type

SMD1921

Pixel Density

43264pixel/m²

20736pixel/m²

Brightness

3500-4500nits

Color Temperature

6500-9500K

Scan Rate

1/13

1/6

Panel Dimension(W*H*D)

500mm*1000mm*68mm/19.7''X39.4''X2.67''

500mm*500mm*68mm/19.7''X19.7''X2.67''

500mm*1000mm*68mm/19.7''X39.4''X2.67''

500mm*500mm*68mm/19.7''X19.7''X2.67''

Panel Resolution

104*208pixel

104*104pixel

72*144pixel

72*72pixel

Panel Weight

9.4KG±10%(Magnesiun alloy)

6.0KG±10%(Magnesiun alloy)

8.6KG±10%(Magnesiun alloy)

5.2KG±10%(Magnesiun alloy)

Cabinet Material

Die-Casting Cabinet

Max Power Consumption

≤720w/m²

Ave Power Consumption

≤360w/m²

Viewing Angle

H：140° V：120°

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16bit

Working Voltage

（wide Voltage）

AC100-240V～  50-60Hz

Working Voltage

（narrow Voltage）

AC200-240V～  50-60Hz

IP Rating

Front IP65,Rear IP54

Curve

Optional

Max Stacking/Hanging

10M

Serviceability

Front/Rear

Transparent rate

2.40%

2.00%

3.4%

2.8%

Lifetime

50000h

Operating Temp/Humidity

-20℃～+45℃：10%-90%RH

Storage Temp/Humidity

-40℃～+60℃：10%-60%RH

Processing platform

Novastar/Colorlight /Magnimage
