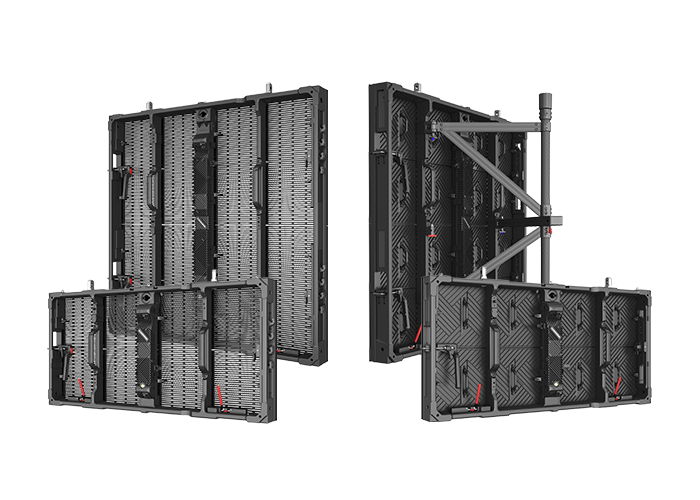

1000mm X 1000mm/1000mm X 500mm

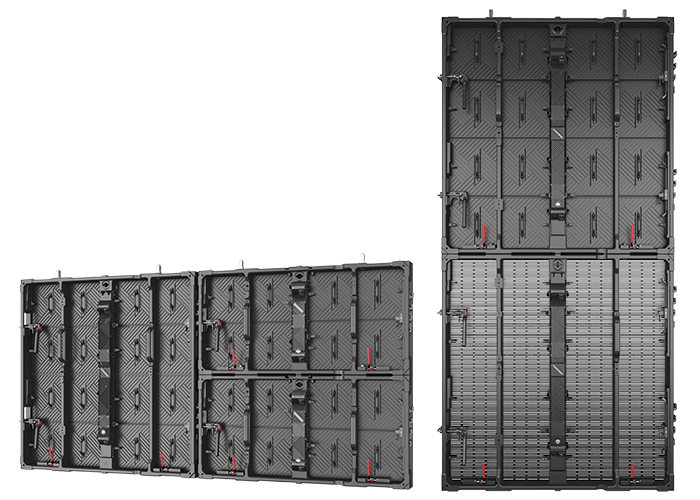

High Compatibility
Supports mix combinations of large and small, transparent and solid panels, maximizing rental inventory usage and avoiding resource waste.
Universal Modules
The cabinet frame is compatible with both solid and transparent modules, offering more options for users and improving efficiency, blending value and effectiveness.

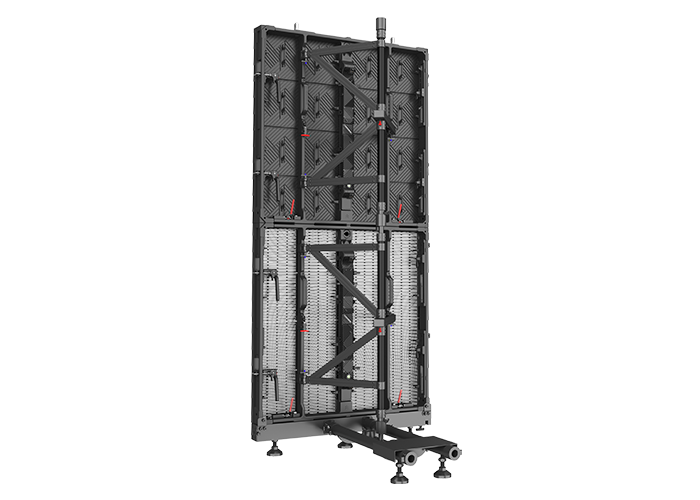

Integrated Wind-Bracing System
The foldable wind-bracing frame ensures stability and can withstand winds up to 20m/s, reducing risks of damage and extending the display's lifespan in different conditions.
The design of magnetic module allows front and rear maintenance and the modular design, simplifies repairs, reduces maintenance time, and increases equipment availability.
Max. hanging height: 20m
Stacking height 20 meters, Without Foldable Touring frame Stacking height 12 meters.
Equipped with professional transport dolly carts, each capable of carrying 12 panels. The carts are designed to be stackable, significantly enhancing mobility and convenience for outdoor use.
VA MAX: Ultra-High Transparency Outdoor Display
• Around 30% Transparency & 4000 nits for vibrant, see-through visuals.
• High Performance: 14-16 bit grayscale, 3840-7680Hz refresh rate.
• Ideal Application: Transforms large-scale outdoor events (e.g., concerts) with stunning clarity.
| Model No. | VA MAX3.91(Outdoor) | VA MAX3.91-7.81(Outdoor) | VA MAX5.95(Outdoor) |
| Pixel Pitch | 3.91mm | 3.91-7.81mm | 5.95mm |
| LED Type | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density | 65536pixel/㎡ | 32768pixel/㎡ | 28224pixel/㎡ |
| Brightness |
General Brightness for Black LEDs:2300～2500nits High Brightness for Black LEDs:3500～3800nits General Brightness for White LEDs:3500～4000nits |
General Brightness for Black LEDs:1200～1500nits High Brightness for Black LEDs:2500～2800nits General Brightness for White LEDs:2000～2500nits |
General Brightness for Black LEDs:2300～2500nits High Brightness for Black LEDs:3500～3800nits General Brightness for White LEDs:3500～4000nits |
| Transparent Rate | / | Around30% | / |
| Color Temperature | 6500～9500K | 6500～9500K | 6500～9500K |
| Scan Rate | 1/16 | 1/16 | 1/7 |
| Panel Dimension |
Large Panel:1000mm*1000mm*100mm (39.4"*39.4"*3.94") Small Panel:1000mm*500mm*100mm（39.4"*19.7"*3.94") |
||
| Panel Resolution | 256*256pixel | 256*128pixel | 168*168pixel |
| Panel Weight | Large Panel:26kg±10%
Small Panel:15kg±10% |
Large Panel:22kg±10% Small Panel:14kg±10% | Large Panel:26kg±10% Small Panel:15kg±10% |
| Cabinet Material | Die-casting Cabinet | Die-casting Cabinet | Die-casting Cabinet |
| Max. Power Consumption | ≦720w/㎡ | ≦720w/㎡ | ≦720w/㎡ |
| Ave. Power Consumption | ≦360w/㎡ | ≦360w/㎡ | ≦360w/㎡ |
| Viewing Angle | H:160º V:140º | H:160º V:140º | H:160º V:140º |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Gray Scale | 14-16bit | 14-16bit | 14-16bit |
| Working Voltage | AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) | AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) | AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) |
| IP Rating | Front IP65,Rear IP54 | Front IP65,Rear IP54 | Front IP65,Rear IP54 |
| Max. Stacking | 20m | 20m | 20m |
| Max.Hanging |
20m (With Foldable Touring frame ) 12m(Without Foldable Touring frame ) |
20m (With Foldable Touring frame ) 12m(Without Foldable Touring frame ) |
20m (With Foldable Touring frame ) 12m(Without Foldable Touring frame ) |
| Curve | -3°/0°/3°/6° | -3°/0°/3°/6° | -3°/0°/3°/6° |
| Lifetime | 50,000 h | 50,000 h | 50,000 h |
| Operating Temp/Humidity | -20℃～+45℃；10%～90%RH | -20℃～+45℃；10%～90%RH | -20℃～+45℃；10%～90%RH |
| Storage Temp/Humidity | -40℃～+60℃；10%～60%RH | -40℃～+60℃；10%～60%RH | -40℃～+60℃；10%～60%RH |
