Triangle Screen and Sector Screen
High IP-Rated Protection
CS II Series Outdoor Version Front IP65, Rear IP54 Rainproof & Fog-resistant Defying Water Erosion.
Integrated Design
Integrated design of power supply, receiving card, HUB card and back cover makes maintenance more efficient and convenient.

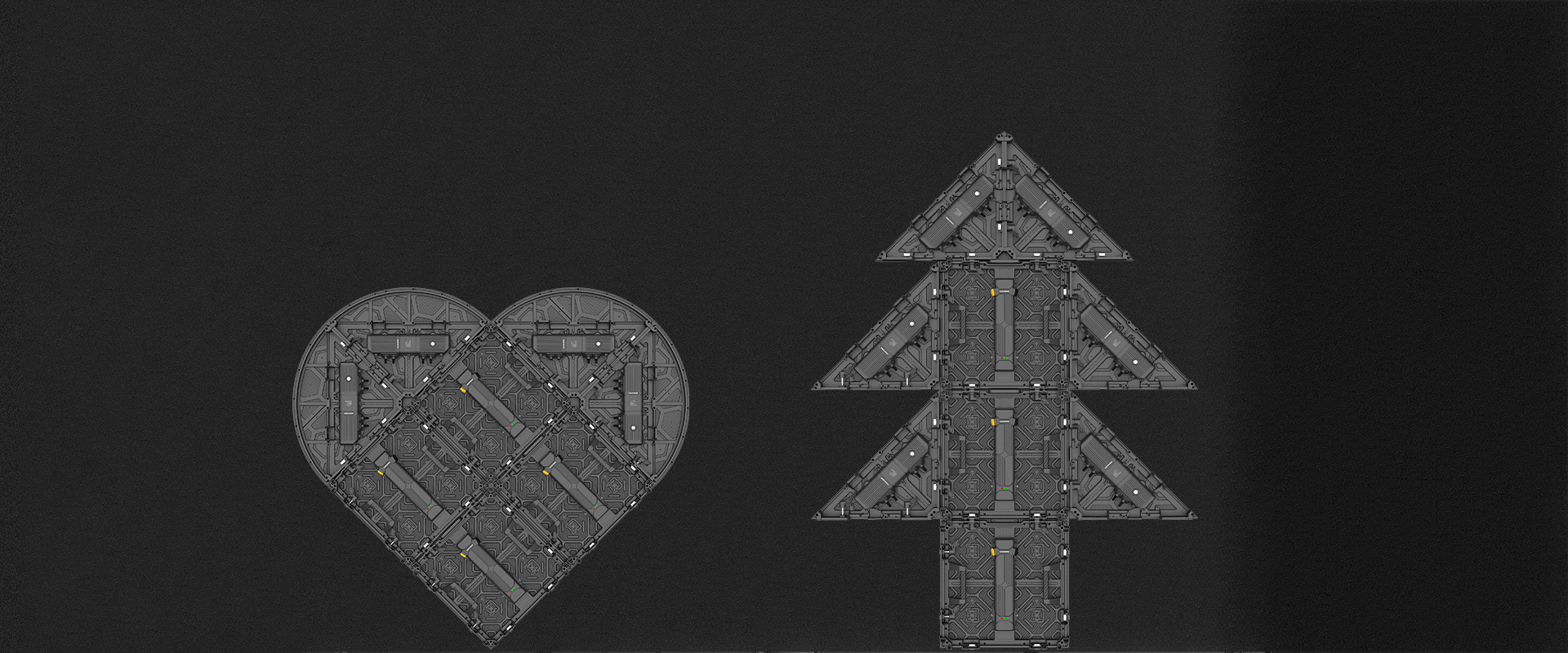

Triangle panels can be assembled into shapes like boats, Christmas trees, pinwheels, etc.
Sector panels can be assembled into heart, semi-circular and circular shapes.
CS II Series has excellent compatibility and supports seamless splicing with Gloshine multiple series LED screens, creating diverse and versatile shapes while enhancing product utilization.
| Triangle Screen | |||||
|
Model No. |
CS II2.6(Indoor) |
CS II2.9(Indoor) |
CS II3.91(Indoor) |
CS II3.91(outdoor) |
CS II4.81(outdoor) |
|
Pixel Pitch |
2.6mm |
2.97mm |
3.91mm |
3.91mm |
4.81mm |
|
LED Type |
SMD1515 |
SMD2020 |
SMD2020 |
SMD1921 |
SMD1921 |
|
Pixel Density |
147456 pixel/m² |
112896 pixel/m² |
65536 pixel/m² |
65536 pixel/m² |
43264 pixel/m² |
|
Brightness |
500～1000 nits |
700～1200 nits |
800～1200 nits |
General Brightness for Black LEDs: 2300～2500nits High Brightness for Black LEDs:3500～3800nits General Brightness for White LEDs: 3500～4000nits |
|
|
Color Temperature |
6500～9500k |
||||
|
Scan Rate |
1/24 |
1/21 |
1/16 |
1/16 |
1/13 |
|
Panel Dimension |
500*500 |
||||
|
Panel Resolution |
3.14*192²/4 pixel |
3.14*168²/4 pixel |
3.14*128²/4 pixel |
3.14*128²/4 pixel |
3.14*104²/4 pixel |
|
Panel Weight |
6kg±10% |
6kg±10% |
6kg±10% |
6kg±10% |
6kg±10% |
|
Panel Material |
Die-casting Cabinet |
||||
|
Max. Power Consumption |
≦580w/㎡ |
||||
|
Ave. Power Consumption |
≦290w/㎡ |
||||
|
Viewing Angle |
H:160º V:140º |
||||
|
Refresh Rate |
3840Hz/7680Hz |
||||
|
Gray Scale |
13～16bit |
||||
|
Working Voltage |
AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) |
||||
|
IP Rating |
IP30 |
IP65 |
|||
|
Max Stacking/Hanging Height |
10m |
||||
|
Curve |
Optional |
||||
|
Lifetime |
50,000 h |
||||
|
Operating Temp/Humidity |
-20℃～+45℃；10%～60%RH |
-20℃～+45℃；10%～90%RH |
|||
|
Storage Temp/Humidity |
-40℃～+60℃；10%～60%RH |
||||
| Sector Screen | |||||
|
Model No. |
CS II2.6(Indoor) |
CS II2.9(Indoor) |
CS II3.91(Indoor) |
CS II3.91(outdoor) |
CS II4.81(outdoor) |
|
Pixel Pitch |
2.6mm |
2.97mm |
3.91mm |
3.91mm |
4.81mm |
|
LED Type |
SMD1515 |
SMD2020 |
SMD2020 |
SMD1921 |
SMD1921 |
|
Pixel Density |
147456 pixel/m² |
112896 pixel/m² |
65536 pixel/m² |
65536 pixel/m² |
43264 pixel/m² |
|
Brightness |
500～1000 nits |
700～1200 nits |
800～1200 nits |
General Brightness for Black LEDs: 2300～2500nits High Brightness for Black LEDs:3500～3800nits General Brightness for White LEDs: 3500～4000nits |
|
|
Color Temperature |
6500～9500k |
||||
|
Scan Rate |
1/24 |
1/21 |
1/16or1/8 |
1/16or1/8 |
1/13or1/7 |
|
Panel Dimension |
500*500 |
||||
|
Panel Resolution |
192²/2 pixel |
168²/2 pixel |
128²/2 pixel |
128²/2 pixel |
104²/2 pixel |
|
Panel Weight |
7.5kg±10% |
7.5kg±10% |
7.5kg±10% |
7.5kg±10% |
7.5kg±10% |
|
Panel Material |
Die-casting Cabinet |
||||
|
Max. Power Consumption |
≦580w/㎡ |
||||
|
Ave. Power Consumption |
≦290w/㎡ |
||||
|
Viewing Angle |
H:160º V:140º |
||||
|
Refresh Rate |
3840Hz/7680Hz |
||||
|
Gray Scale |
13～16bit |
||||
|
Working Voltage |
AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) |
||||
|
IP Rating |
IP30 |
IP65 |
|||
|
Max Stacking/Hanging Height |
10m |
||||
|
Curve |
Optional |
||||
|
Lifetime |
50,000 h |
||||
|
Operating Temp/Humidity |
-20℃～+45℃；10%～60%RH |
-20℃～+45℃；10%～90%RH |
|||
|
Storage Temp/Humidity |
-40℃～+60℃；10%～60%RH |
||||
