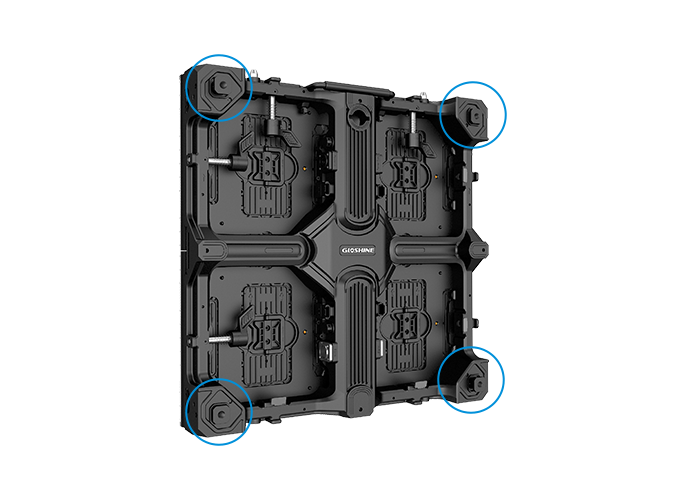

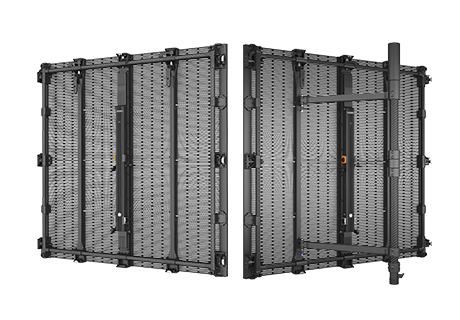

Adjustable Feet on Four Corners of the Cabinet
Enhancing the flexibility of leveling adjustments, and easily addressing issues caused by uneven floors.

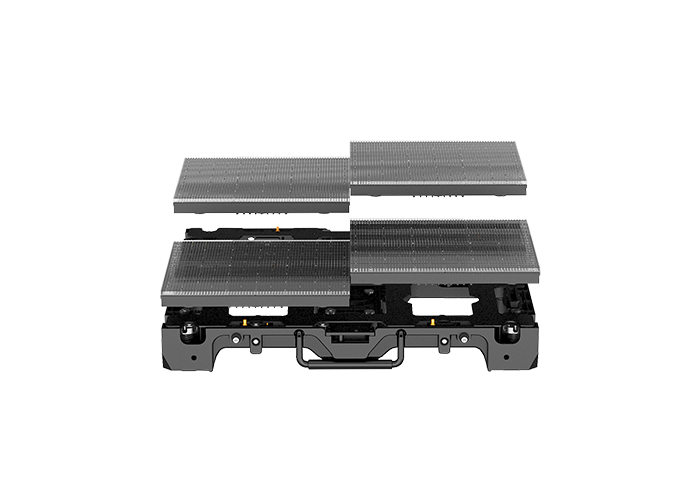

Easy Maintenance
Features magnetic modules, enabling convenient and efficient front maintenance.
Specification

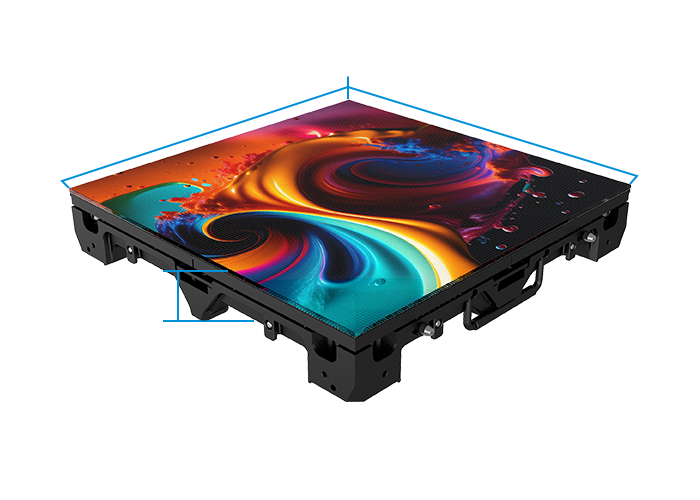

Panel Dimension(W*H*D):500m×500mm×83mm/85mm
Panel Weight:8.5kg±10%(Indoor),11.6kg±10%(Outdoor)

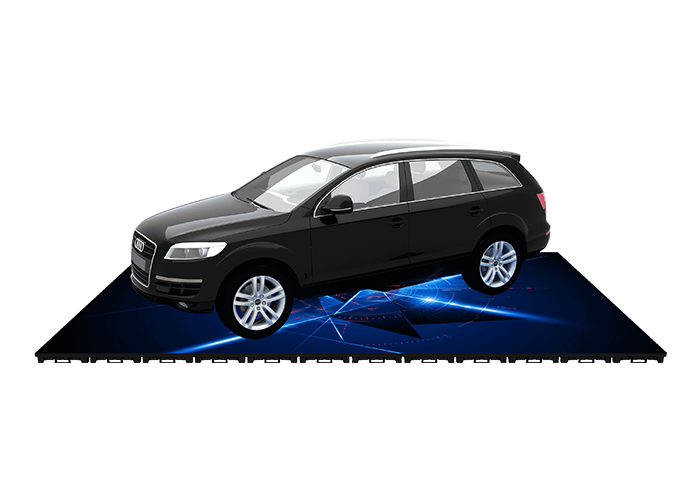

Strong Load Capacity
AR PRO features a robust structure and a load-bearing capacity of up to 1.5 tons. It can withstand intensive use, including car driving and high-traffic pedestrian use.

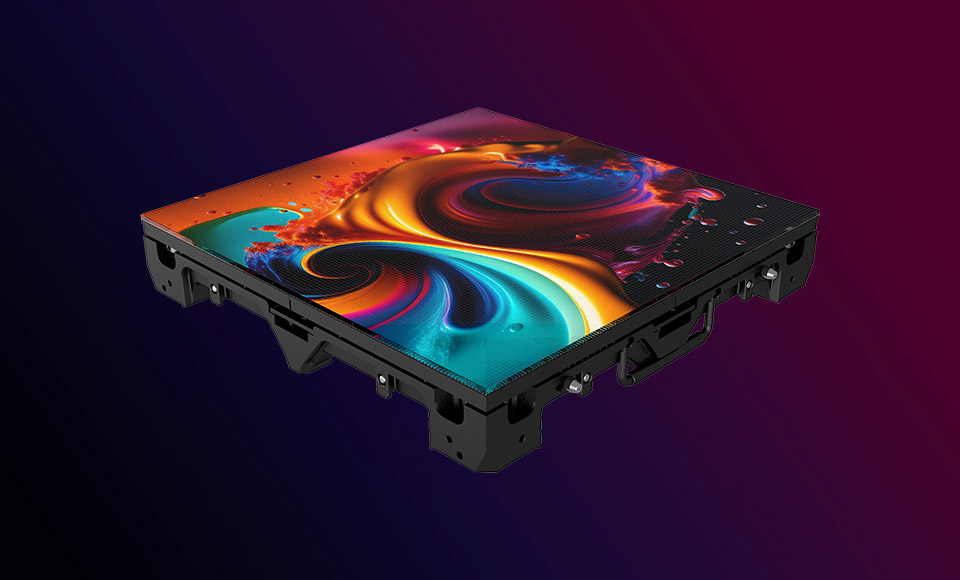

Achieves a minimum pixel pitch of indoor 1.9mm, delivering sharper and more detailed images. Combined with the GOB process, it further enhances resistance to impact, moisture, dust, and pressure, effectively extending the LED display's service life.

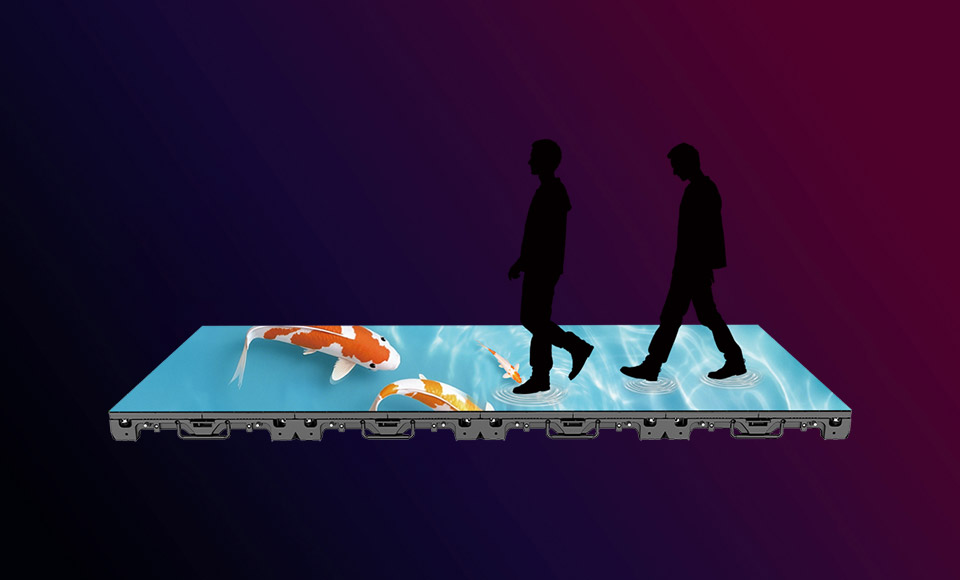

Each module is equipped with four sensor points, supporting human-screen interaction. It is widely used in scenarios such as creative exhibitions and commercial tours.

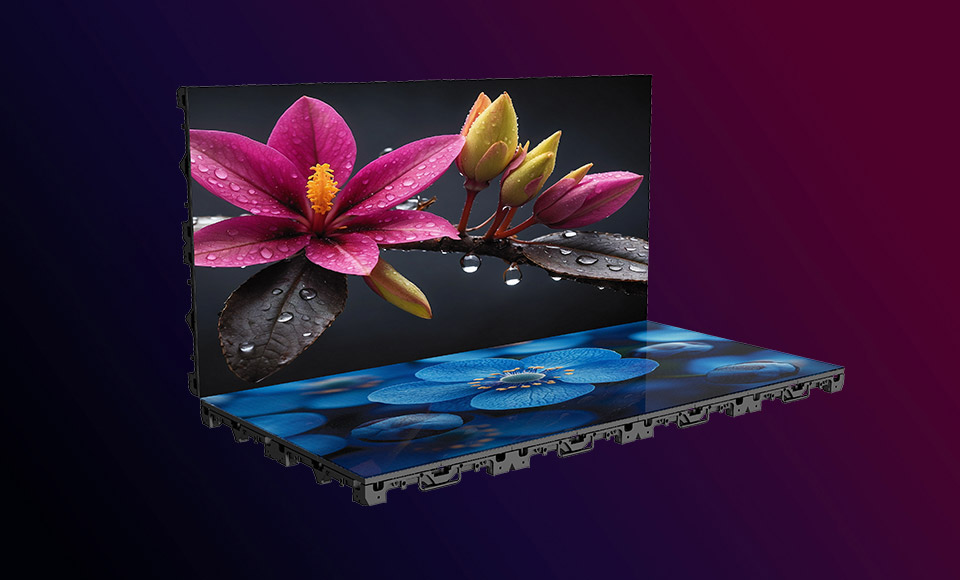

Can be used as a floor screen or a conventional background screen. Paired with the integrated installation system, setup is completed effortlessly without complex modifications.

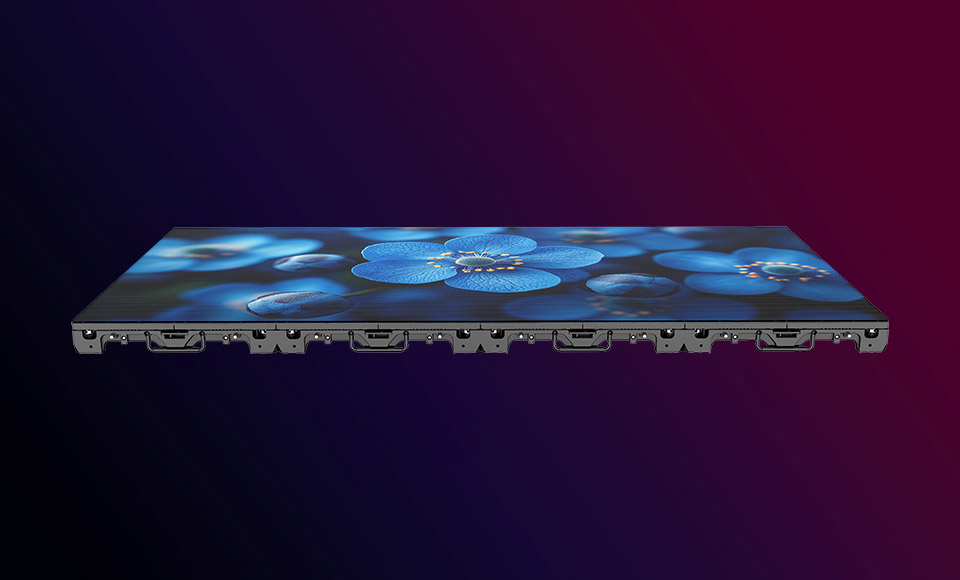

Outdoor IP Rating: Front IP65 / Rear IP65. Provides water and dust resistance, ensuring reliable performance in humid environments without fear of water mist erosion.

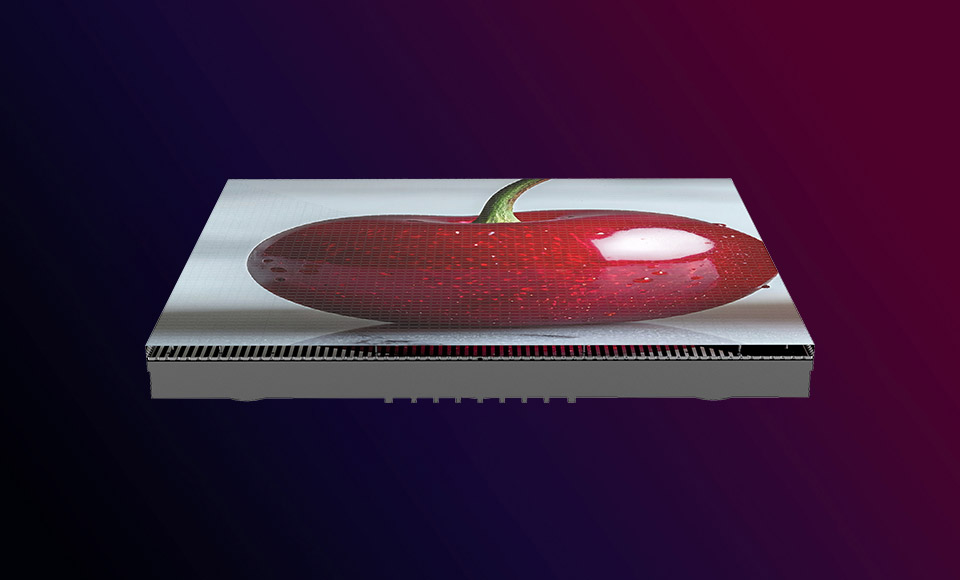

Features consistent LED performance with low-gray-scale processing, ensuring uniform color without color blocks. Supports a 7680Hz refresh rate for smooth dynamic images without motion blur, making it suitable for use as an XR virtual production screen.
|
Application Scenario |
Indoor |
Outdoor |
||||
|
Model No. |
AR Pro1.9 |
AR Pro2.6 |
AR Pro2.9 |
AR Pro3.9 |
AR Pro2.9 |
AR Pro3.9 |
|
Pixel Pitch |
1.9 |
2.6 |
2.9 |
3.9 |
2.9 |
3.9 |
|
Packaging techinque |
GOB |
GOB |
GOB |
GOB |
SMD+PC |
SMD+PC |
|
Panel Dimension |
500mm*500mm*83mm |
500mm*500mm*83mm |
500mm*500mm*85mm |
500mm*500mm*85mm |
500mm*500mm*85mm |
500mm*500mm*85mm |
|
Panel Resolution |
256*256pixel |
192*192pixel |
168*168pixel |
128*128pixel |
168*168pixel |
128*128pixel |
|
Scan Rate |
1/32 |
1/24 |
1/21 |
1/16 |
1/21 |
1/16 |
|
Refresh Rate |
3840Hz/7680Hz |
|||||
|
Panel Weight |
8.5kg±10% |
11.6kg±10% |
||||
|
Cabinet Material |
Die-Casting Aluminum |
|||||
|
Viewing Angle |
H:160°/V:160° |
|||||
|
IP Rating |
Front IP31 |
IP65 |
||||
|
Serviceability |
Front Maintenance |
|||||
|
Max Stacking/Hanging |
7.5m(Vertical Screen) |
|||||
| Please contact our sales for detailed product information or leave messages for us, we will respond soon. | ||||||
