RB-B Series Cost-Effective LED Display

Utral-Light weight
Easy Maintenance
IP65
Curving Options
"L" Shape

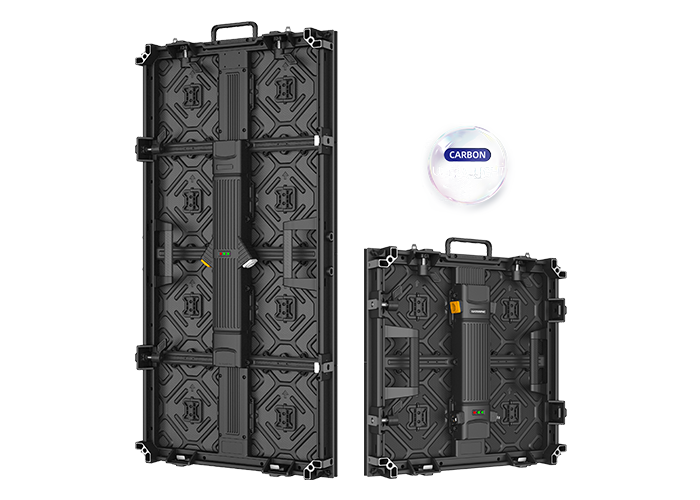

Ultra Thin & Lightweight Cabinet

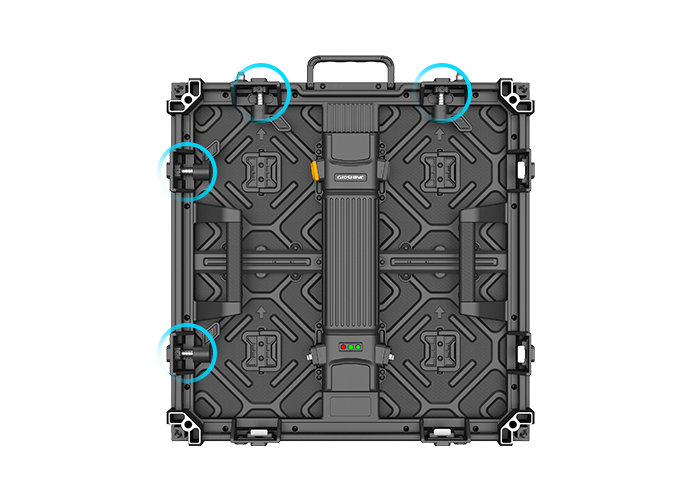

Dual Top/Side Locks Design

Dual top/side locks for each cabinet.

Steel core with spring locking system.

•Efficient and quick installation

•Seamless splicing

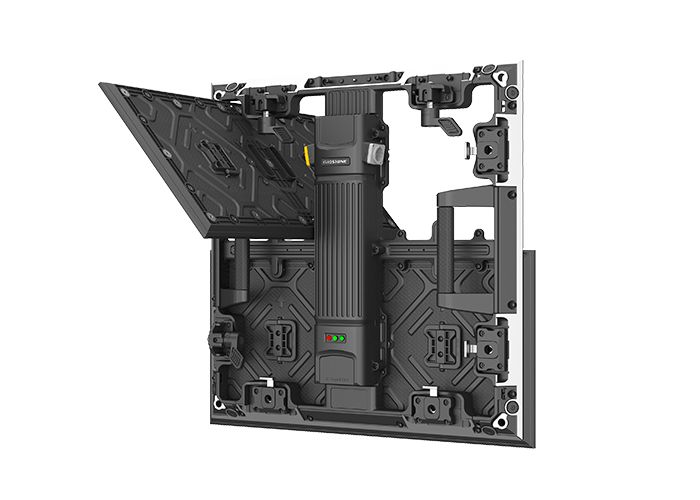

Magnetic Modules

The Module fixed by magnets and screws

•Quick and convenient front maintenance.

•Prevent misalignment during transportation.

•Avoid the risk of falling from heights.

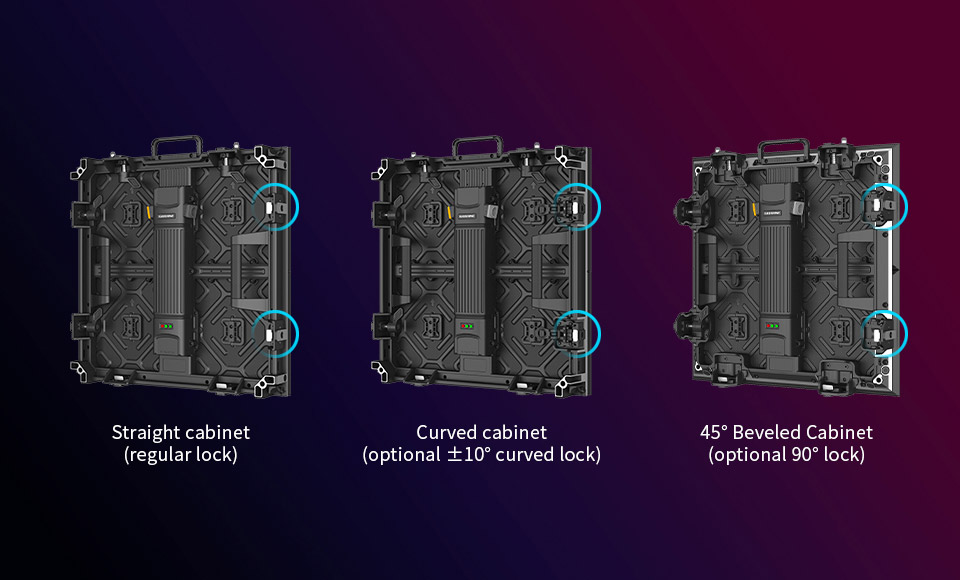

45° Beveled Cabinet (Optional)

Available for 45° beveled cabinet, supports cubic column/cube/vertical splicing etc.

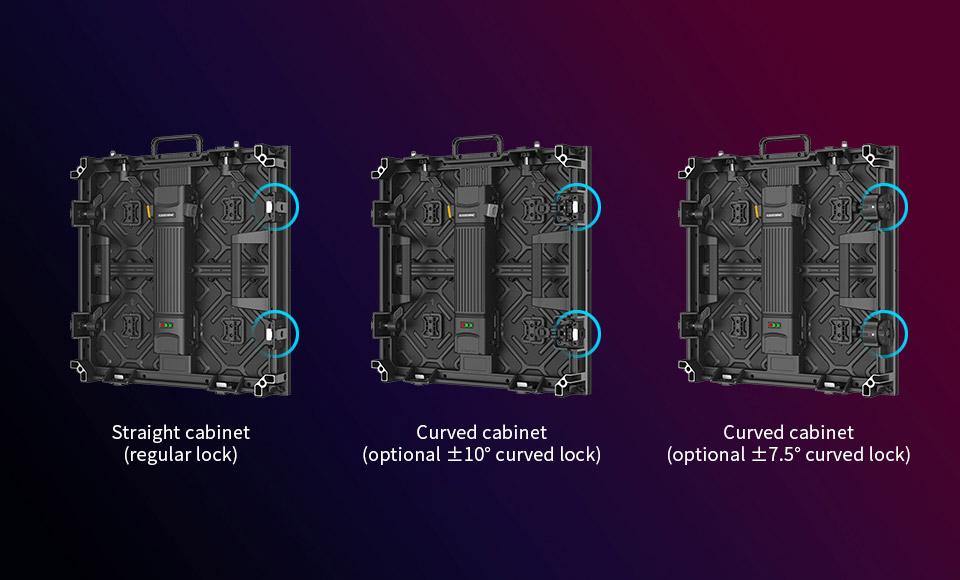

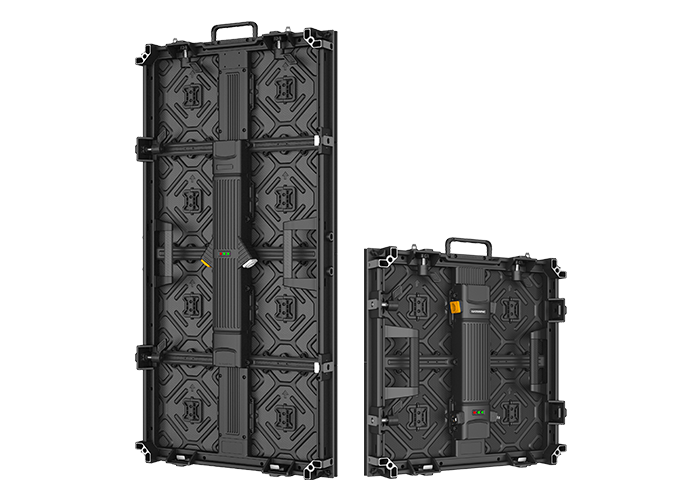

Multiple Cabinets for Option

RB-B series offers multiple cabinet options to meet complex creative shapes and enhance scene adaptation flexibility.

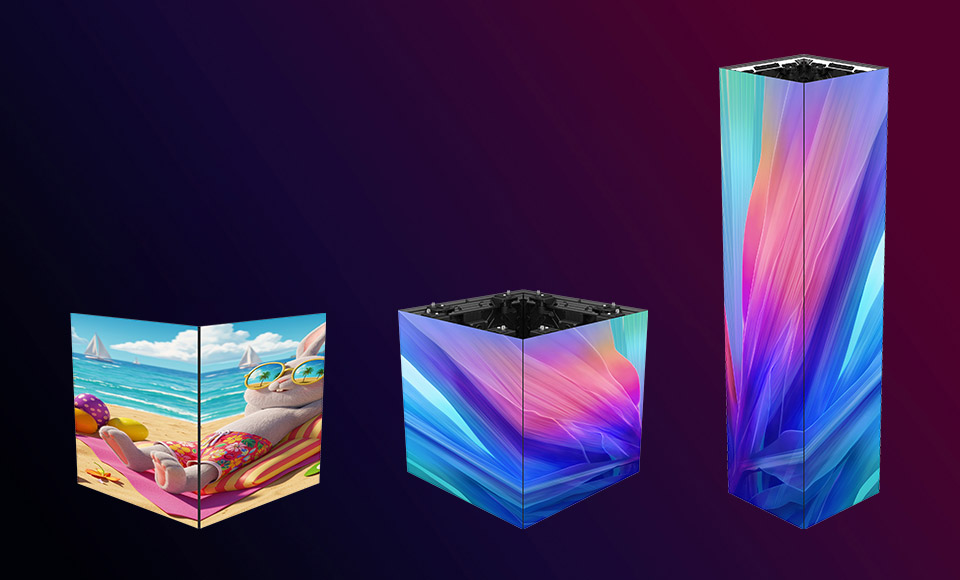

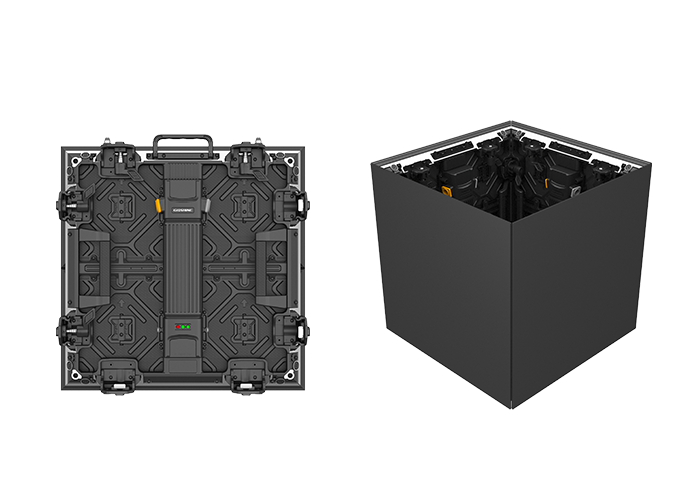

Cubic Column/Cube/Vertical Splicing

•RB-B supports four-sided cutting edge.

•RB PLUS-B supports two-side cutting edge (left and right).

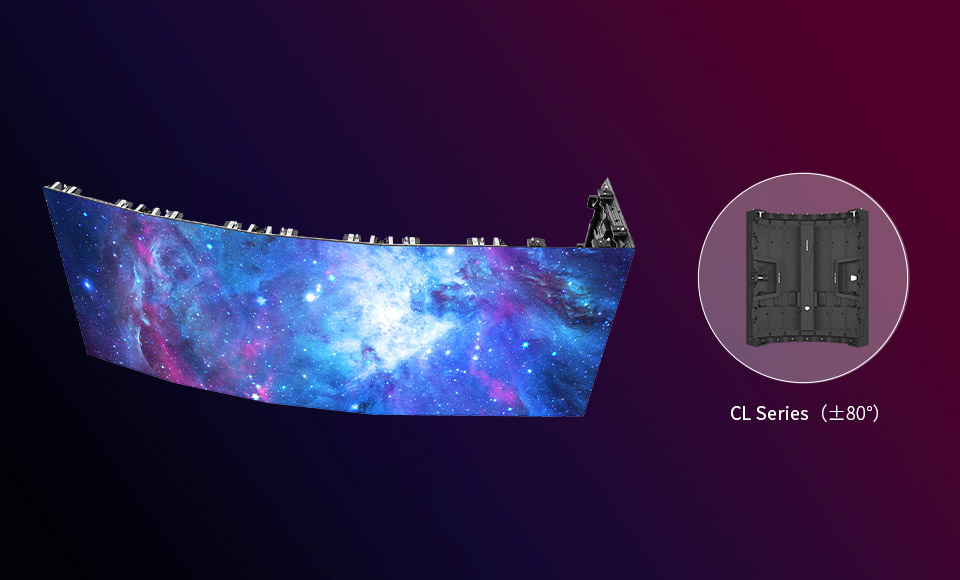

Curved Screen

RB-B Series available splicing for curved shape, easily radian adjustment, efficiently installation.

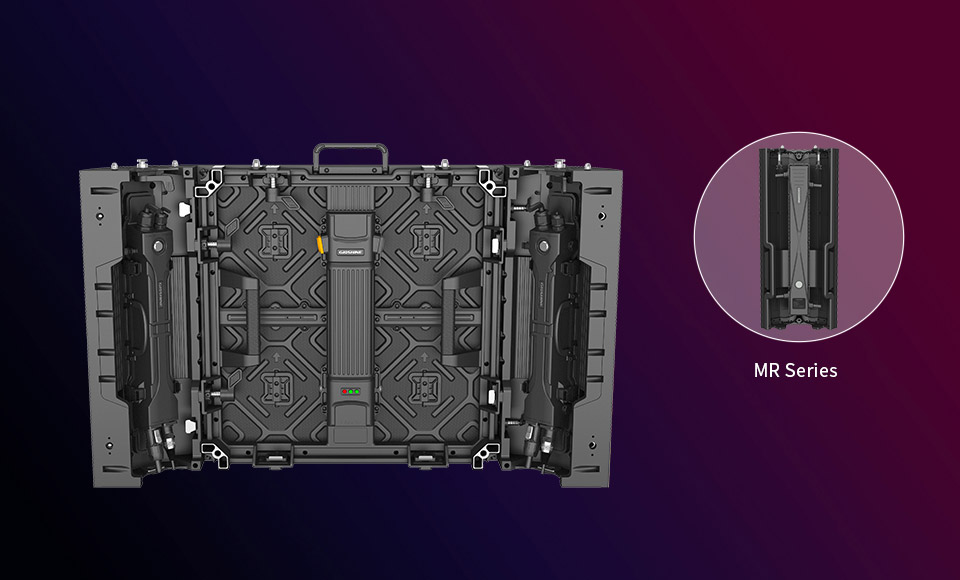

Splice with 90° Corner Fillet

RB-B Series can splice with 90° corner fillet screen MR Series, creating a seamless and smooth round corner visual experience.
Splice with Flexible Screen

RB-B Series indoor available for splicing with flexible screen, offering versatile designs to meet various creative needs.

Technical parameter

Model No.	RB-B/RB PLUS-B2.9	RB-B/RB PLUS-B3.9	RB-B/RB PLUS-B3.9
Pixel Pitch	2.9mm	3.9mm	3.9mm
LED Type	SMD1415	SMD1415	SMD1415
Packaging techinque	SMD	SMD	SMD
Pixel Density	112896 pixel/㎡	65536 pixel/㎡	65536 pixel/㎡
Panel Dimension	RB Plus-B:500mm1000mm76mm RB-B:500mm500mm76mm	RB Plus-B:500mm1000mm76mm RB-B:500mm500mm76mm	RB Plus-B:500mm1000mm76mm RB-B:500mm500mm76mm
Panel Resolution	RB Plus-B:168336 pixel RB-B:168168 pixel	RB Plus-B:128256 pixel RB-B:128128 pixel	RB Plus-B:128256 pixel RB-B:128128 pixel
Scan Rate	1/21	1/8	1/16
Brightness	Black LED:2000-2500nits White LED:3000-3500nits	General Brightness for Black LEDs: 2800-3000nits High Brightness for Black LEDs: 4000-4500nits General Brightness for White LEDs: 4000-4500nits High Brightness for White LEDs: 5000-5500nits	General Brightness for Black LEDs: 2300-2500nits High Brightness for Black LEDs: 3500-3800nits General Brightness for White LEDs: 3500-4000nits High Brightness for White LEDs: 4500-5000nits
Refresh Rate	3840Hz/7680Hz
Gray Scale	14-16Bit
Color Temperature	6500-9500K
Panel Weight	RB-B:7.2kg±10% RB Plus-B:12.5kg±10%
Cabinet Material	Die-Casting Cabinet
Max Power Consumption	White LED:≤580w/㎡；Black LED:≤720w/㎡
Ave Power Consumption	White LED:≤290w/㎡；Black LED:≤360w/㎡
Viewing Angle	H:160°/V:140°
Working Voltage	AC200-240V~50/60Hz or AC100-240V~50/60Hz
IP Rating	Front IP65，Rear IP54
Serviceability	Rear
Curve	Curved Cabinet/45° Beveled Cabinet (±10° curved lock): -10°/-7.5°/-5/-2.5°/0°/2.5°/5°/7.5/10° 90°lock/connecting plate: 90°
Max Stacking/Hanging	10m
Operating Temp/Humidity	-20℃~+45℃；10%~90%RH
Storage Temp/Humidity	-40℃~+60℃；10%~90%RH
Processing platform	Novastar/Magnimage/Colorlight
Product Certification	MET/CE/EMC
