Product AS series

AS series

  • Outdoor / waterproof

  • Fast installation

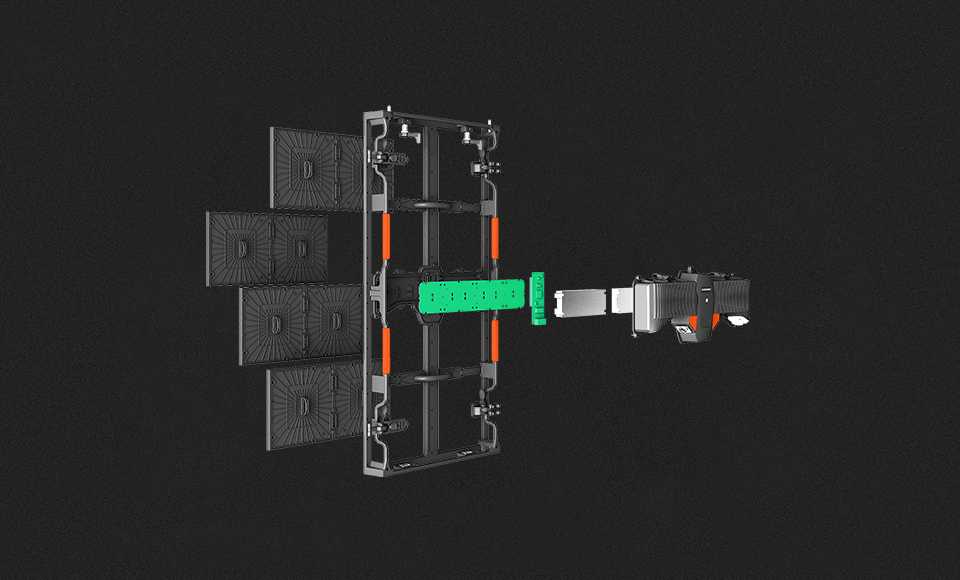

  • Easy Maintenance

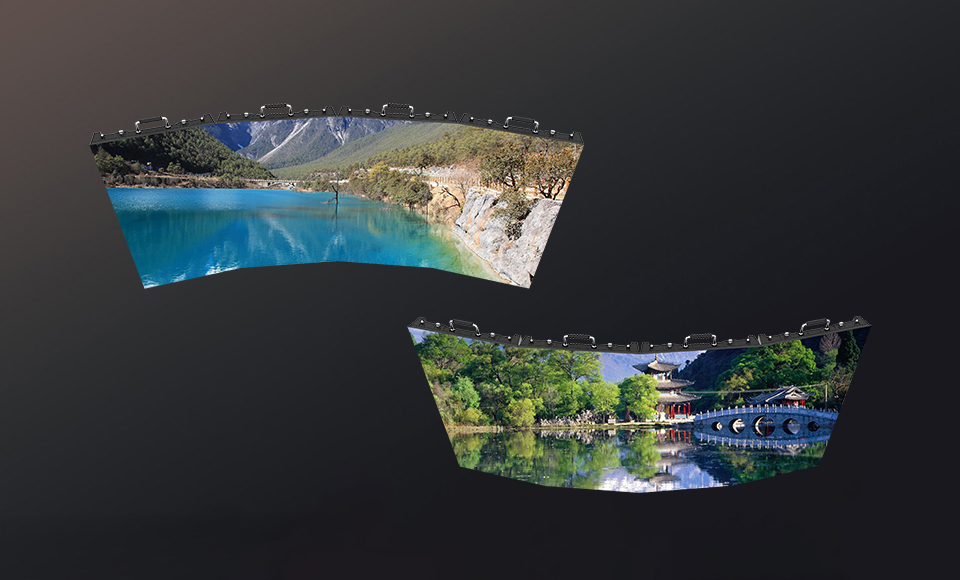

  • Curved

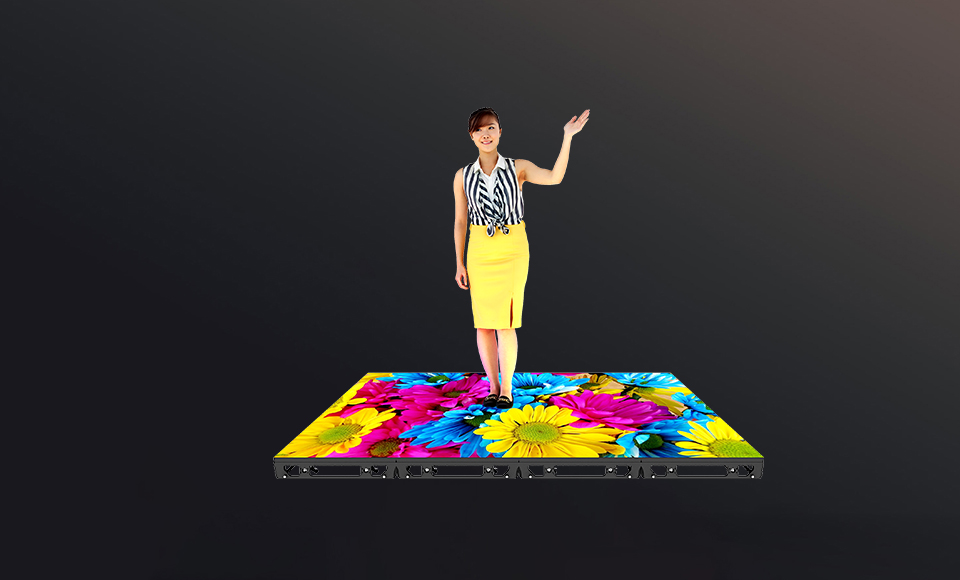

  • Dancing Floor

Classical, Reliable

Technical parameter

Model No. AS3.91(Outdoor) AS4.81(Outdoor/Dance floor) AS5.95(Outdoor/Dance floor)
Pixel Pitch 3.91mm 4.81mm 5.95mm
LED   SMD1921(High frame)
Pixel Density 65536pixel/㎡ 43264pixel/㎡ 28224pixel/㎡
Brightness 2000-2500nits
4000-5000nits
2000-2500nits
4000-4500nits
2200-2500nits
4000-5000nits
Color Temperature   6500-9500k
Scan 1/16 1/13 1/7
Panel Dimension(W*H*D)   500mm×1000mm×85mm / 19.7"×39.4"×3.3"
Panel Resolution 128*256pixel 104*208pixel 84*168pixel
Panel Weight    13.50kg/29.76lb
Cabinet Material   Die casting aluminum
Max Power Consumption   ≤700w/㎡
Average Power Consumption   ≤350w/㎡
Viewing Angle   H:140º  V:120º
Refresh Rate   1920Hz
Gray Scale   14-16bit
IP Rating   Front IP65,Rear IP54
Operating Humidity   10%-90%RH
Operating Temperature   -20℃~+45℃
Max. Stacking   15pcs
Max. Hanging   15pcs
Curve(Optional)    -7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°
Lifetime   50,000 hrs
Storage Temp/Humidity   -40℃~+60℃;10%-60%RH
