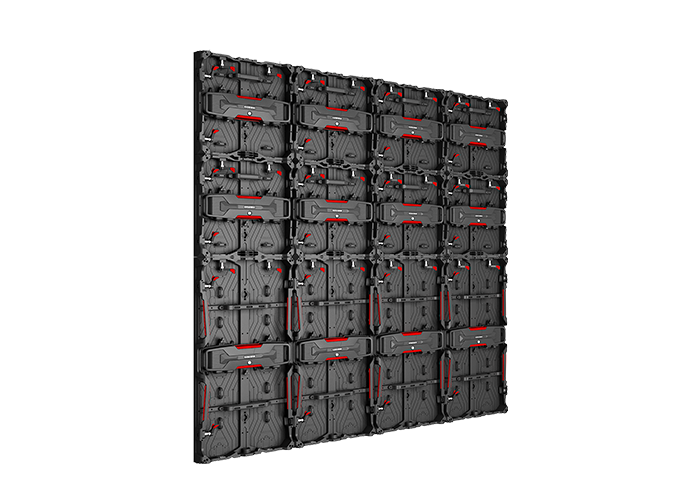

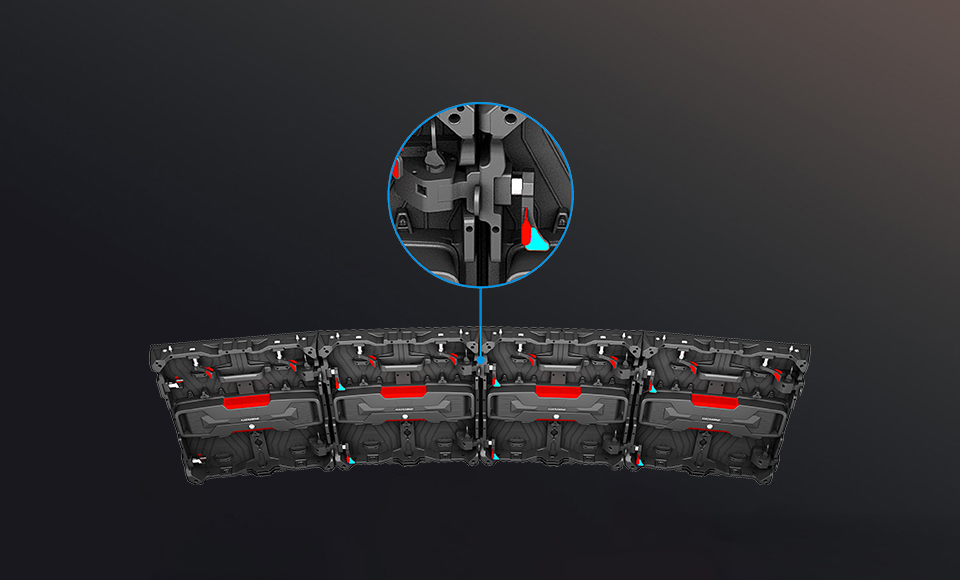

Flexible and easy to install in either concave or canvex configuration. LEGEND series is preferred for both outdoor stage design or fixed installation.

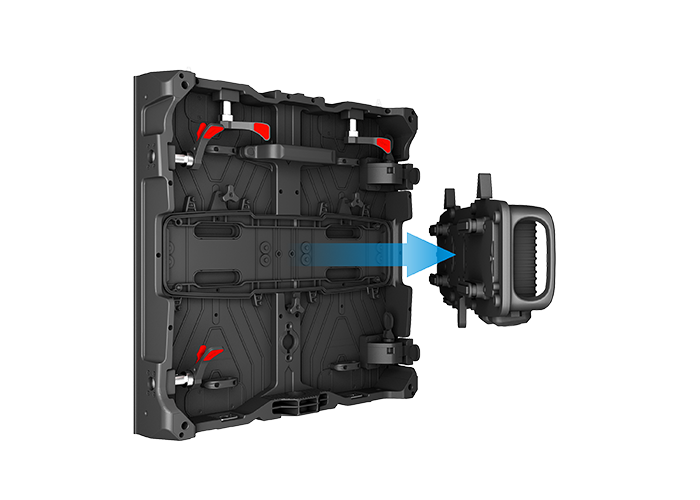

LEGEND MINI series has a compact structure, stable performance and easy to maintenance.

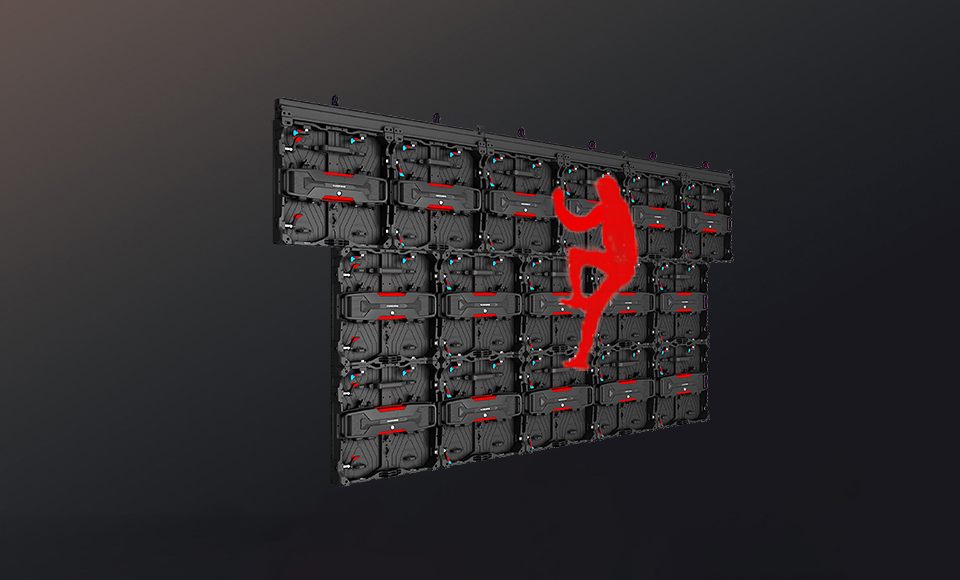

LEGEND MINI series supports climbing after installation.(caution:with safety belt when climbing)

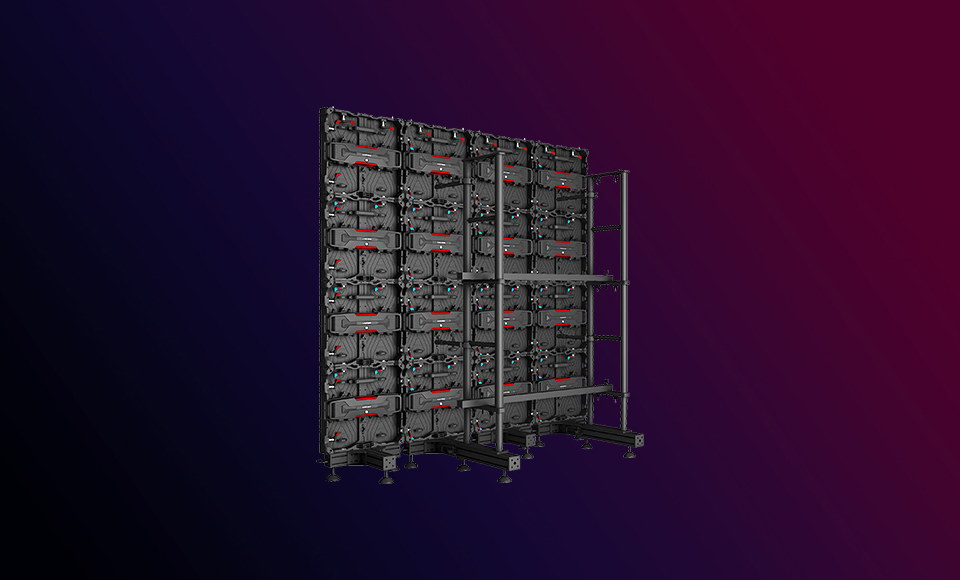

Stacking installation 20pcs maximum in height.
Hanging installation 20pcs maximum in height.
| Model No. | Legend mini 2.97(Outdoor) | Legend mini 3.91(Outdoor) | Legend mini 4.81(Outdoor) | Legend mini 5.95(Outdoor) |
| Pixel Pitch | 2.97mm | 3.91mm | 4.81mm | 5.95mm |
| LED | SMD1515 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density | 112896pixel/㎡ | 65536pixel/㎡ | 43264pixel/㎡ | 28224pixel/㎡ |
| Brightness | 3500-4500nits | 4000-5000nits | 4000-5000nits | 4000-5000nits |
| Color Temperature | 6500-9500k | |||
| Scan | 1/21 | 1/16 | 1/13 | 1/7 |
| Panel Dimension(W*H*D) | 500×500×86mm / 19.7"×19.7"×3.4" | |||
| Panel Resolution | 168*168pixel | 128*128pixel | 104*104pixel | 84*84pixel |
| Panel Weight | 8.80kg/19.40lb | |||
| Cabinet Material | Magnesium alloy | |||
| Max Power Consumption | ≤650w/㎡ | ≤700w/㎡ | ≤700w/㎡ | ≤700w/㎡ |
| Average Power Consumption | ≤325w/㎡ | ≤350w/㎡ | ≤350w/㎡ | ≤350w/㎡ |
| Viewing Angle | H:160º V:140º | |||
| Refresh Rate | 1920Hz/3840Hz | |||
| Gray Scale | 14-16bit | |||
| IP Rating | Front IP65,Rear IP54 | |||
| Operating Humidity | 10%-90%RH | |||
| Operating Temperature | -20℃～+45℃ | |||
| Max. Stacking | 20pcs | |||
| Max. Hanging | 20pcs | |||
| Curve(Optional) | -10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10° | |||
| Lifetime | 50,000 hrs | |||
| Storage Temp/Humidity | -40℃～+60℃；10%-60%RH |
