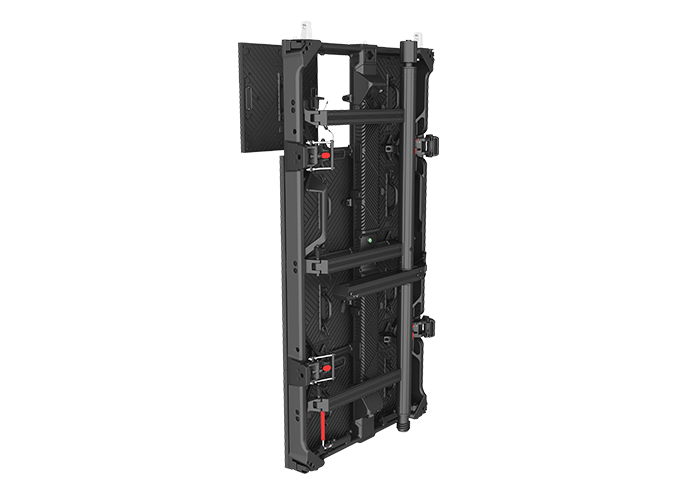

Large Cabinet
Dimension(W*H*D): 600*1200*95mm
Quick Installation, High Efficiency
Time and Labor Saving
Clever Design, Smooth Use
Fast installation, Time Efficiency

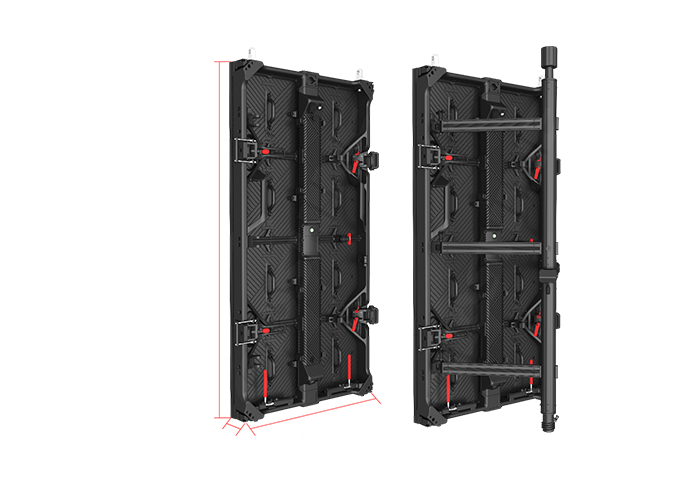

With integrated foldable wind-bracing fame, it’s perfect to quickly build a giant LED screen, both for hanging installation and stacking installation.
Quick & Convenient Maintenance
Modular Design
Universal Magnetic Modules
Fast Front Maintenance
Born for Outdoor Touring Stage
•Professional large-scale stage solution
•Integrated wind-bracing system and dolly system
•Innovative curving capabilities
•Fast and easy maintenance
•Large cabinet, effortless installation efficiency
The UT series features high brightness, high contrast ratio, high gray scale, and high refresh rate.
With superior components and ICs, creating an unrivalled visual performance for outdoor large-scale touring stage, including curved installation needs.
UT 3.75 / 5.77 / 8.33 stands out with 1921 Black LED.
High contrast ratio and exceptional color performance make it ideal for outdoor LED Screen needs, even in demanding lighting conditions.
Innovative dual steel locks simplify installation, strengthen structural integrity, and ensure smooth panel alignment — making them especially suitable for curved outdoor waterproof LED wall setups.
|
Model No. |
UT3(Outdoor) |
UT5(Outdoor) |
UT8(Outdoor) |
|
Pixel Pitch |
3.75mm |
5.77mm |
8.33mm |
|
LED Type |
SMD1921(black) |
SMD1921(black) |
SMD1921(white) |
|
Pixel Density |
71111 pixel/m² |
30044 pixel/m² |
14400 pixel/m² |
|
Brightness |
3500～4000 nits |
3500～4000 nits |
3500～4000 nits |
|
Color Temperature |
6500～9500K |
||
|
Scan Rate |
1/10or 1/16 |
1/4 |
1/3 |
|
Panel Dimension |
600mm*1200mm*95mm(23.6"*47.2"*3.74") |
||
|
Panel Resolution |
160*320pixel |
104*208pixel |
72*144pixel |
|
Panel Weight |
20kg(44.09lb)±10% |
||
|
Cabinet Material |
Die-casting Cabinet |
||
|
Max Power Consumption |
≦850w/㎡ |
||
|
Ave Power Consumption |
≦425w/㎡ |
||
|
Viewing Angle |
H:160º V:140º |
||
|
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
|
Gray Scale |
14-16bit |
14-16bit |
14-16bit |
|
Working Voltage |
AC100-240V~ 50/60Hz or AC200-240V~ 50/60Hz (two choose one) |
||
|
IP Rating |
IP65 |
||
|
Max Stacking/Hanging |
20m |
||
|
Curve |
-10⁰~+10⁰ |
||
|
Lifetime |
50,000 h |
||
|
Operating Temp/Humidity |
-20℃～+45℃；10%～90%RH |
||
|
Storage Temp/Humidity |
-40℃～+60℃；10%～60%RH |
||
