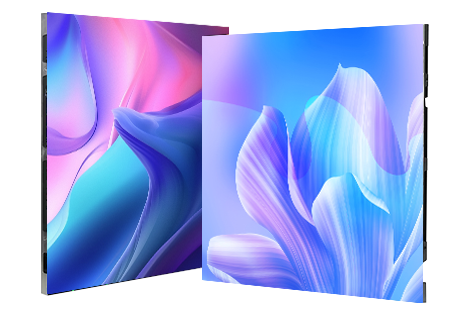

High strength cast magnesium alloy module is integrated the megnet, receiving card into modular block, displaying the crystal clear images.
Panel size ratio 16:9, perfect for 2K,4K, 8K display solution.
HDR, 4K and more than 4K.
LED mini 4in1 solution,more reliable LEDs, delivers more clear and vivid visual experiences.
Modular design, easy-to-use and fast replacement maintenance.
Anti-collision design, can protect the panel body effectively during installation.
Pro-fast installation (Special design make the panel to meet requirements of various fast installation occasions)
| Model No. | X Pro 0.95 (Indoor) | X Pro 1.26 (Indoor) | X Pro 1.58 (Indoor) |
| Pixel Pitch | 0.95mm | 1.26mm | 1.58mm |
| Led Type | Four in one | Four in one | Four in one |
| Pixel Density | 1108034pixel/㎡ | 623275pixel/㎡ | 398892pixel/㎡ |
| Brightness | 500-800nits | ||
| Color Temperature | 6500-9500k | ||
| Scan | 1/30 | 1/30 | 1/27 |
| Panel Dimension(W*H*D) | 608mm×342mm×84mm / 23.93"×13.46"×3.3" | ||
| Panel Resolution | 360*640pixel | 268*480pixel | 216*384pixel |
| Panel Weight | 8.80kg/19.4lb | ||
| Cabinet Material | Die casting aluminum | ||
| Max Power Consumption | ≤650w/㎡ | ||
| Average Power Consumption | ≤325w/㎡ | ||
| Viewing Angle | H≥160º V≥160º | ||
| Refresh Rate | 3840Hz | ||
| Gray Scale | 14-16bit | ||
| IP Rating | IP30 | ||
| Operating Humidity | 10%-60%RH | ||
| Operating Temperature | -10℃～+40℃ | ||
| Max. Stacking | 25pcs | ||
| Max. Hanging | 25pcs | ||
| Lifetime | 50,000hrs | ||
| Storage Temp/Humidity | -40℃～+60℃；10%-60%RH |
