Product Zebra pro series

Zebra pro series

  • Outdoor / waterproof

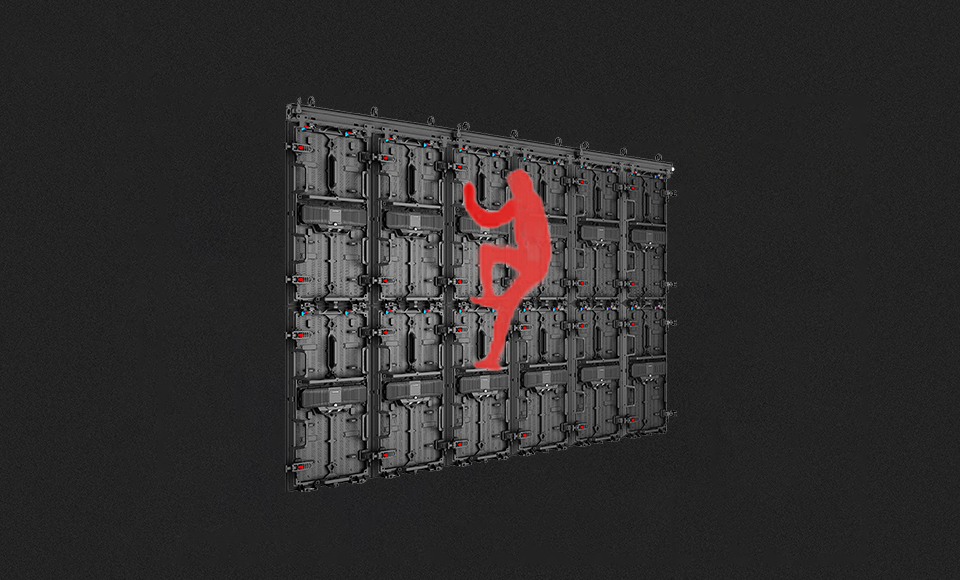

  • Fast installation

  • Easy Maintenance

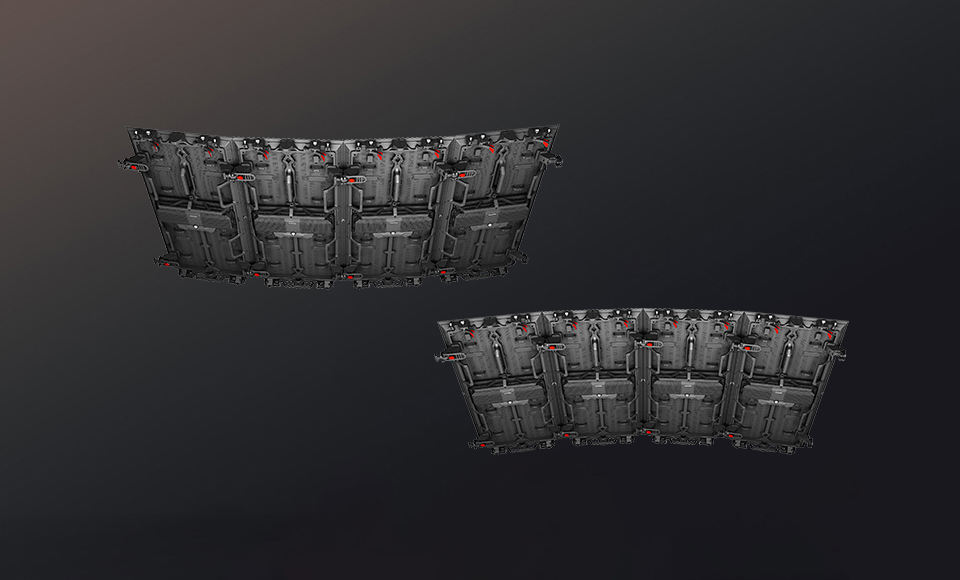

  • Curved

  • 90° stitching

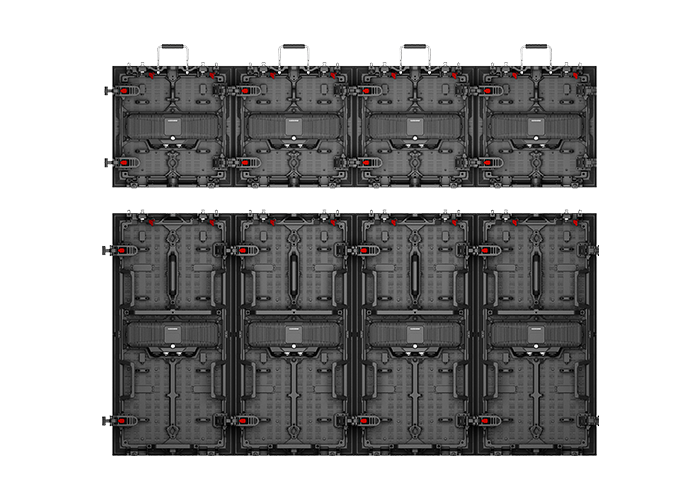

Zebra pro and Zebra mini pro support irregular installation and mixed installation.

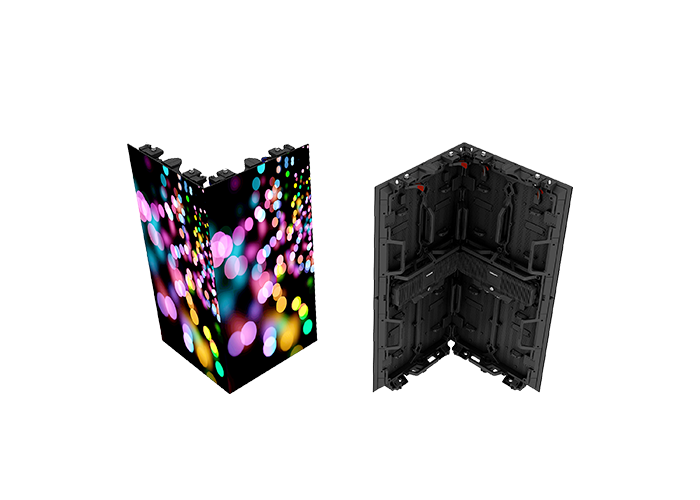

90°corner installation available. Identical 45° side frame cabinet quite east to install collumn.

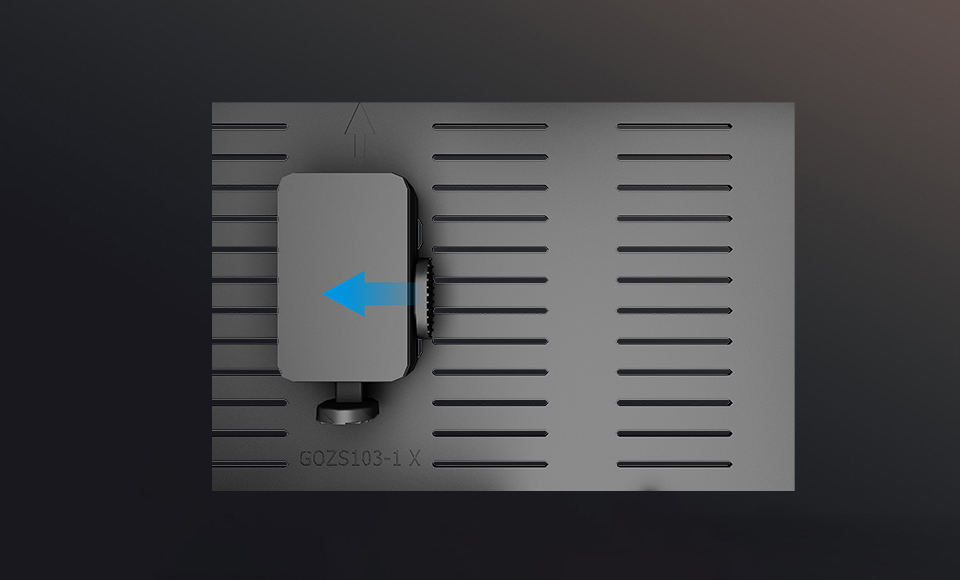

Intergrated control unit. easy for maintenance.

Technical parameter

Model No. ZS Pro 4.81
(Outdoor)
ZS Pro 5.95
(Outdoor)
ZS Pro 6.94
(Outdoor)
ZS Pro 10.42
(Outdoor)
Pixel Pitch 4.81mm 5.95mm 6.94mm 10.42mm
LED SMD1921 SMD1921 SMD1921 SMD3535
Pixel Density 43264pixel/㎡ 28224pixel/㎡ 20736pixel/㎡ 9216pixel/㎡
Brightness   4000-5000nits
Color Temperature   6500-9500k
Scan 1/13 1/7 1/6 1/3
Panel Dimension(W*H*D)   500mm×1000mm×92mm / 19.7"×39.4"×3.6"
Panel Resolution 104×208pixel 84×168pixel 72×144pixel 48×96pixel
Panel Weight    14.4kg/31.75lb
Cabinet Material   Die casting aluminum
Max Power Consumption ≤680w/㎡ ≤680w/㎡ ≤680w/㎡ ≤680w/㎡
Average Power Consumption ≤340w/㎡ ≤340w/㎡ ≤340w/㎡ ≤340w/㎡
Viewing Angle   H:160º     V:120º
Refresh Rate   1920Hz/3840Hz
Gray Scale   14-16bit
IP Rating   Front IP65,Rear IP54
Operating Humidity   10%-90%RH
Operating Temperature   -20℃~+45℃
Max. Stacking   10pcs
Max. Hanging   10pcs
Curve(Optional)   -15°/-12.5°/-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°/12.5°/15°&90°
Lifespan   50,000 hrs
Storage Temp/Humidity   -40℃~+60℃;10%-60%RH
