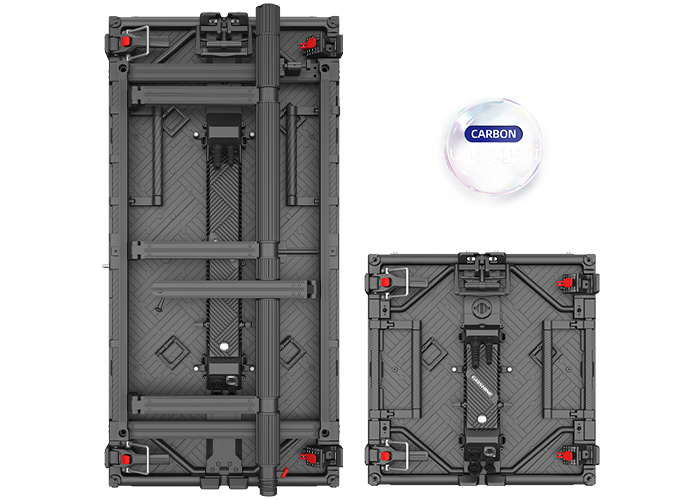

Carbon Fiber
•Ultra light carbon fiber outdoor cabinets

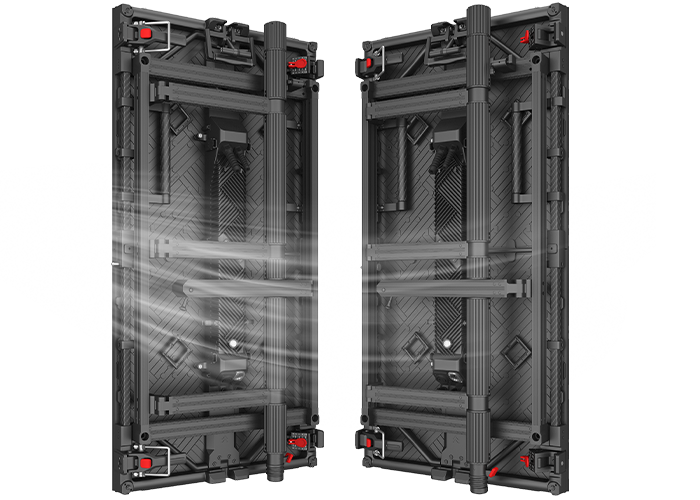

Air Frame
•with air frame, making stacking installation easy and convenient.
•Making the screen be strong for air resisting.

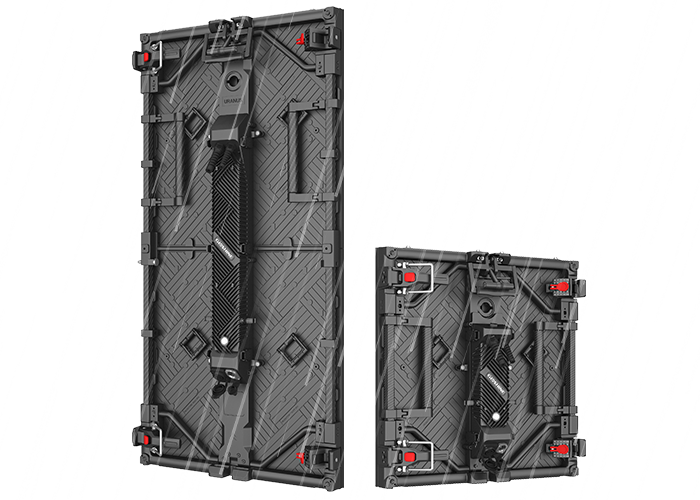

High Protection
•Outdoor Waterproof Front & Rear IP65
Anti-collision design
•UR Stands out with 1921 Black LED，
High Contrast Ratio, Superior color performance.

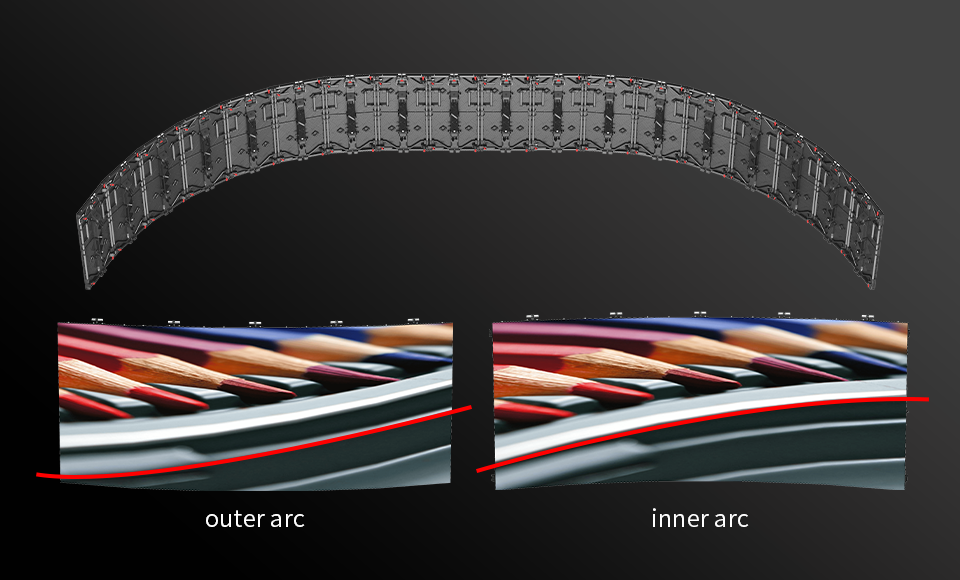

Various Possibility: Support concave and convex splicing,covering from 0° to ±10°, offering flexible and versatile design options.
Horizontal 160°, Vertical 140° View Angle, Shadowless Full-frame.
•Maximum hanging height:
20m(With touring frame)
10m(normal)
|
Model No. |
UR2(indoor) |
UR3(indoor) |
UR3(outdoor) |
|
Plxel pitch |
2.6mm |
3.9mm |
3.9mm |
|
LED type |
SMD1515(black) |
SMD2020(black) |
SMD1921(black) |
|
Packaging method |
/ |
||
|
Pixel density |
147456 pixel/㎡ |
65536 pixel/㎡ |
65536 pixel/㎡ |
|
Panel resolution |
192*384 pixel |
128*256 pixel |
128*256 pixel |
|
Scan rate |
1/16或1/24 |
1/16 |
1/16 |
|
Brightness |
1000-1500nits |
1000-1500nits |
3500-4500nits/4500-5000nits |
|
Color temperature |
6500-9500K |
||
|
Panel dimension |
500mm*1000mm*85.5mm((19.7"*39.4"*3.36) |
||
|
Panel weight |
10.5kg±10% |
11.5kg±10% |
|
|
Frame material |
Die-casting Cabinet |
||
|
Power consumption |
≦720w/㎡ ,≦360w/㎡ |
||
|
Viewing angle |
H:160°/V:140° |
||
|
Refresh rate |
1920Hz/3840Hz/7680Hz |
||
|
Gray scale |
14-16bit |
||
|
IP rating |
IP30 |
IP65/IP54 |
|
|
Curve |
|
||
|
Max. stacking/hanging |
20m(With Touring Frame)/10m(normal) |
||
|
Serviceability |
Front/Rear |
||
|
Operating voltage |
AC100-240V~50/60Hz |
||
|
Operating temp/humidity |
-20℃~+45℃；10%~60%RH |
-20℃~+45℃；10%~90%RH |
|
|
Storage Temp/Humidity |
-40℃~+60℃；10%~60%RH |
-40℃~+60℃；10%~60%RH |
|
