Product Blade Series

Blade Series

  • HD

  • Lightweight

  • Easy Repair

  • Fixed

  • GOB

Dimension

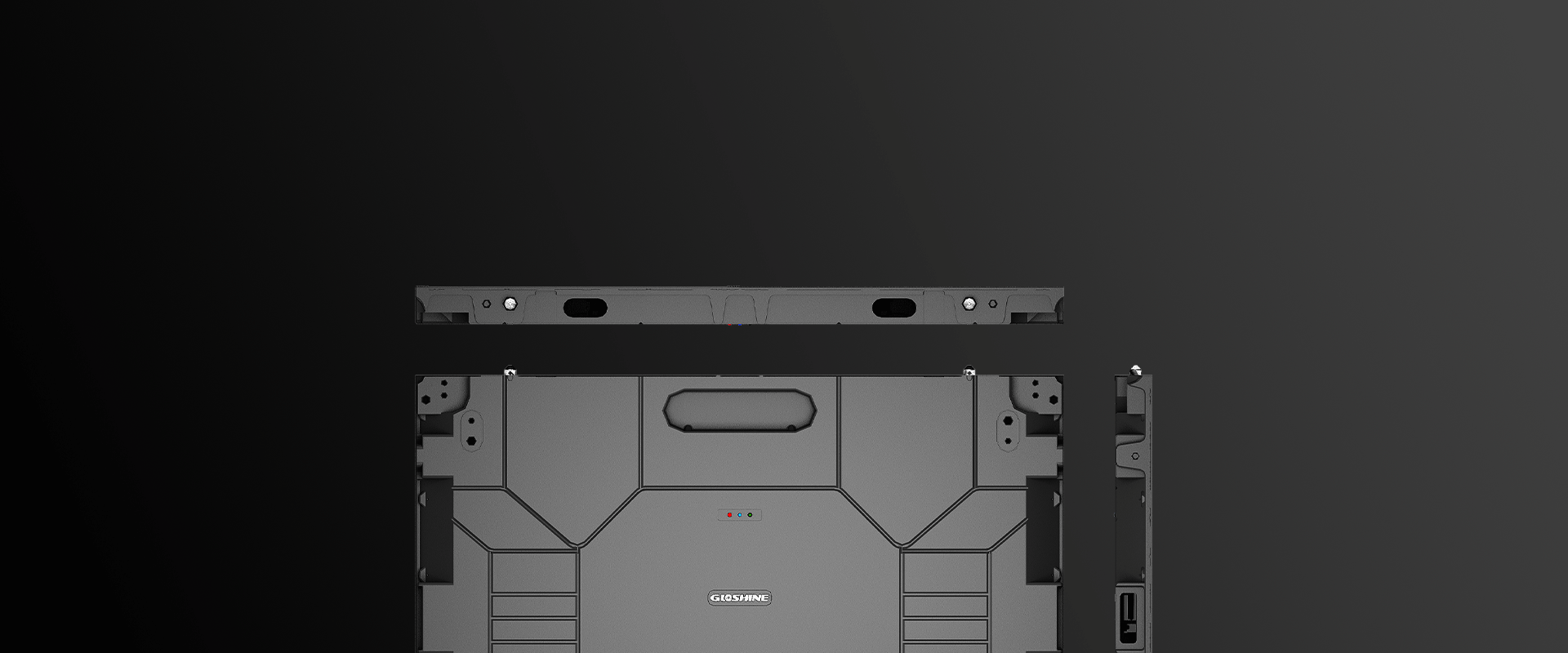

Structure

Extremely thin and light

Energy-saving power supply

Low consumption and environmental protection.

90° splicing

hanging

vertical installation

Technical parameter

Model No. BD 1.25 BD 1.53 BD 1.86 BD 2.0 BD 2.50
Plxel Pitch 1.25mm 1.53mm 1.86mm 2.0mm 2.50mm
LED Type SMD1010 SMD1212 SMD1515 SMD1515 SMD2020
GOB Optional
Pixel Density 640000 pixel/m² 422500 pixel/m² 288906 pixel/m² 250000 pixel/m² 160000 pixel/m²
Brightness 300~500 nits 400~600 nits 500~800 nits 500~800 nits 600~900 nits
Color Temperature 6500~9500k
Panel Dimension(W*H*D) 640mm*480mm*38mm/25.2"*18.9"*1.5"
Panel Resolution 512*384 pixel 416*312 pixel 344*258 pixel 320*240 pixel 256*192 pixel
Panel Weight ≦7.5kg/16.53lb
Cabinet Material Die-casting Cabinet
Max Power Consumption ≦600w/m²
Ave Power Consumption ≦300w/m²
Viewing Angle H:160° V:140°
Refresh Rate 1920Hz/3840Hz
Gray Scale 13~16bit
IP Rating IP30
Curve Optional
Lifetime 50,000h
Operating Temp/Humidity -20℃~+45℃;10%~60%RH
Storage Temp/Humidity -40℃~+60℃;10%~60%RH
