•Power supply, receiving card and back cover are integrated in one unit for fast maintenance and high efficiency.
Power supply and receiving card redendancy are optional.
AR X series is consisted with floor panel and ground support frame.
•Born for XR studio
•High Weight loading Capacity
•Strong Scratch and abrasion resintance
Refresh rate 7680Hz is reachable, high quality image output with high speed carema is guaranteed.
Vertical and horizontal viewing angle 160°meets all shooting angle requirement.
•Panel cross section shaped as “H”enhances the weight-bearing and toughness.
Floor PC cover with special artwork treatment. The surface of the screen is anti-skidding and anti-friction.

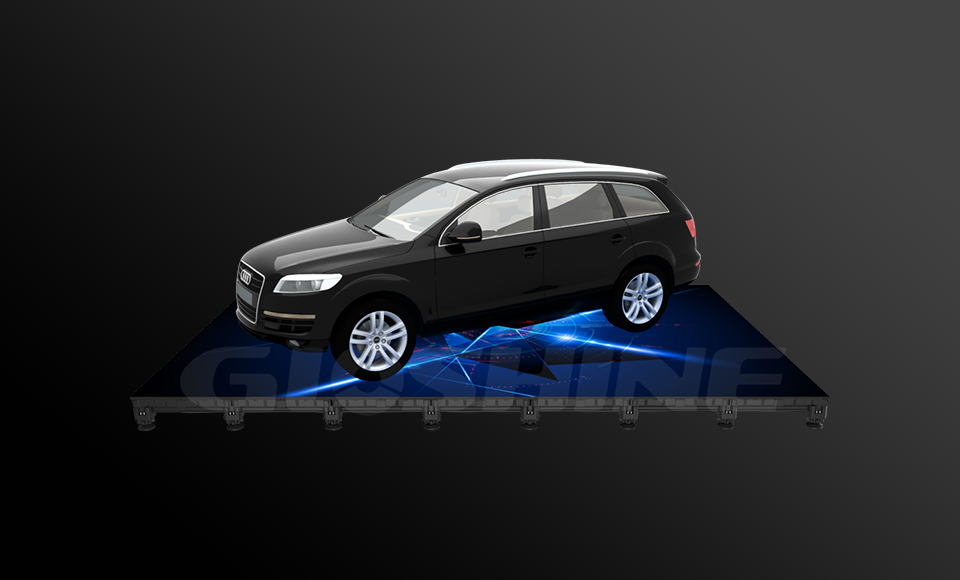

Panel with super high quality PC cover which can sustain the weight up to 2 tons.
No.1 Choice for virtual photegraph AR X3.91
Creat the virtual vision the fastest way possible
1.Ground structure setup
Set the floor base and connecting bar at the same level with gauge in order to assemble quickly. The total number of ground structure can be set based on the total sqm of the floor.
2.Floor panel setup
Position the floor assembly hole with ball-shape pins on the ground structure properly,push down to lock the system.
|Model No.||AR X3.91(Indoor/Dance floor)|
|LED Type||SMD1415(High frame)|
|Panel Dimension(W×H×D)||500mm×500mm×117mm /19.7”*19.7”*4.6”|
|Panel Resolution||128*128 pixel|
|Cabinet Material||Cabinet：Die-casting aluminium Mask：PC|
|Max Power Consumption||≦620w/㎡|
|Ave Power Consumption||≦310w/㎡|
|Viewing Angle||H:160º V:160º|
|Operating Temp/Humidity||-20℃～+45℃ 10%-90%RH|
|Storage Temp/Humidity||-40℃～+60℃ 10%-60%RH|
