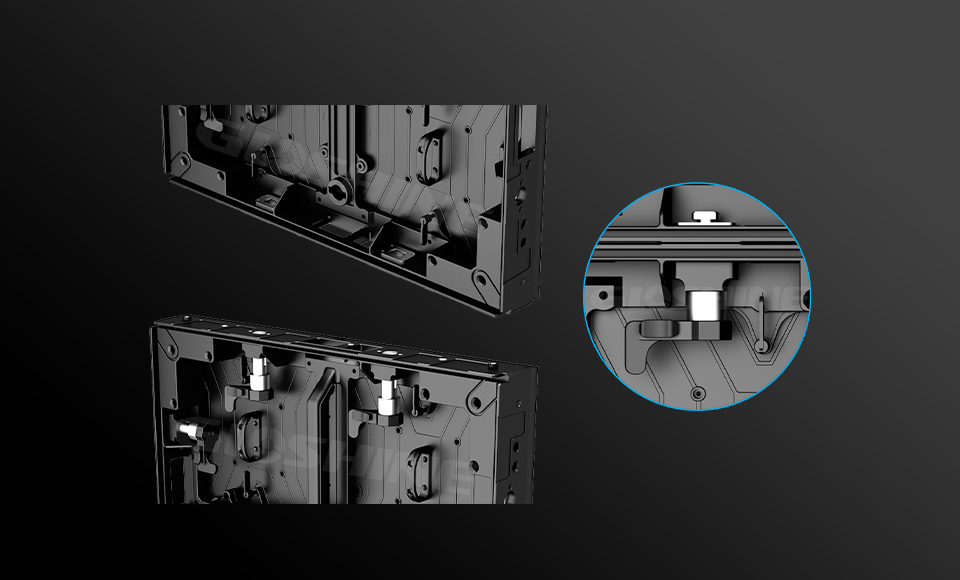

Two fast latchs on the top. Make sure installation easily and quickly.

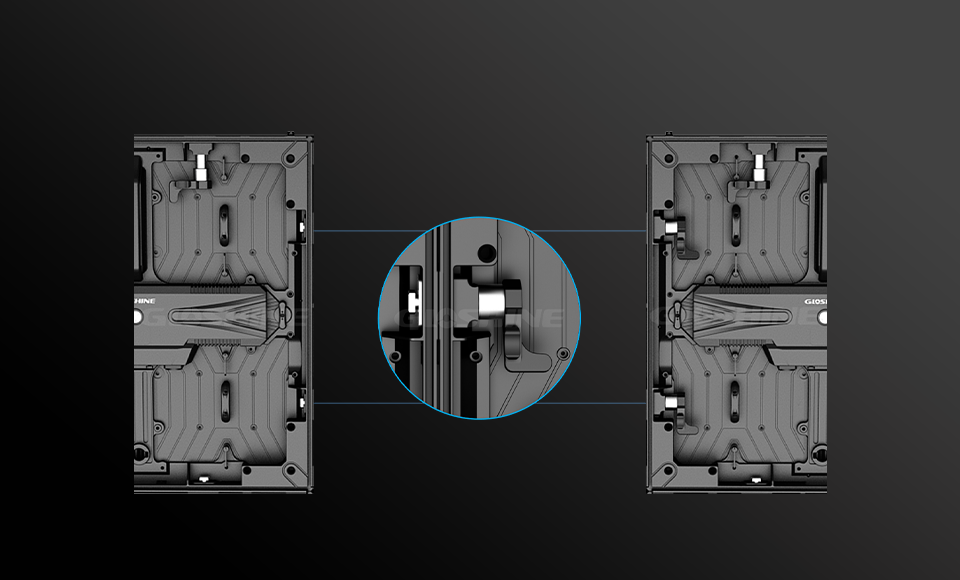

Two fast latchs on panel side, easy and fast installation.

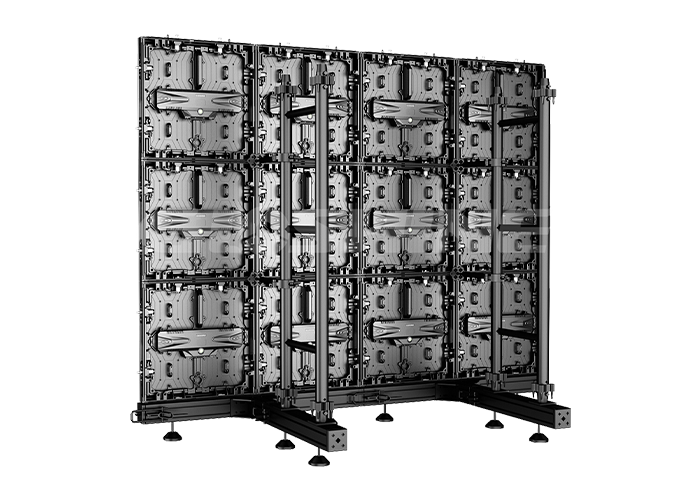

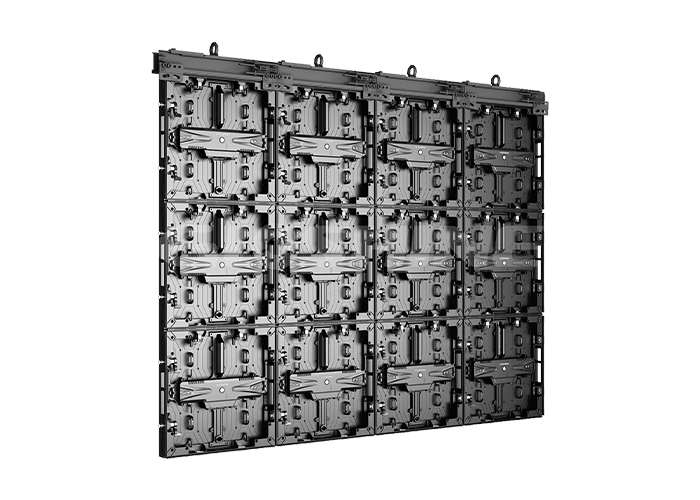

Support standard display rack.

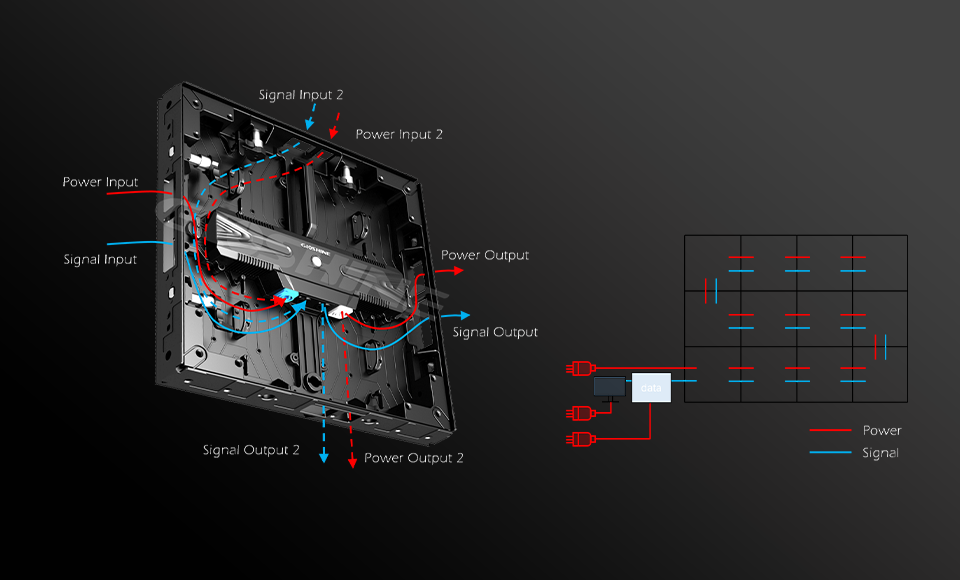

Wiring inside through rack & multiple ways.
.png)

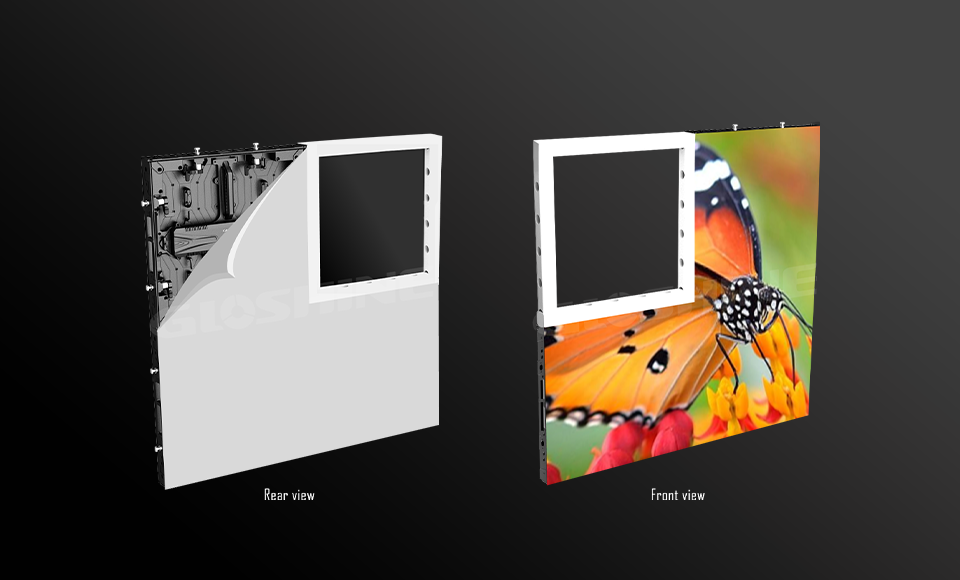

Rear side can be perfect covered by SEG fabric.
I. 45° tiles is optional

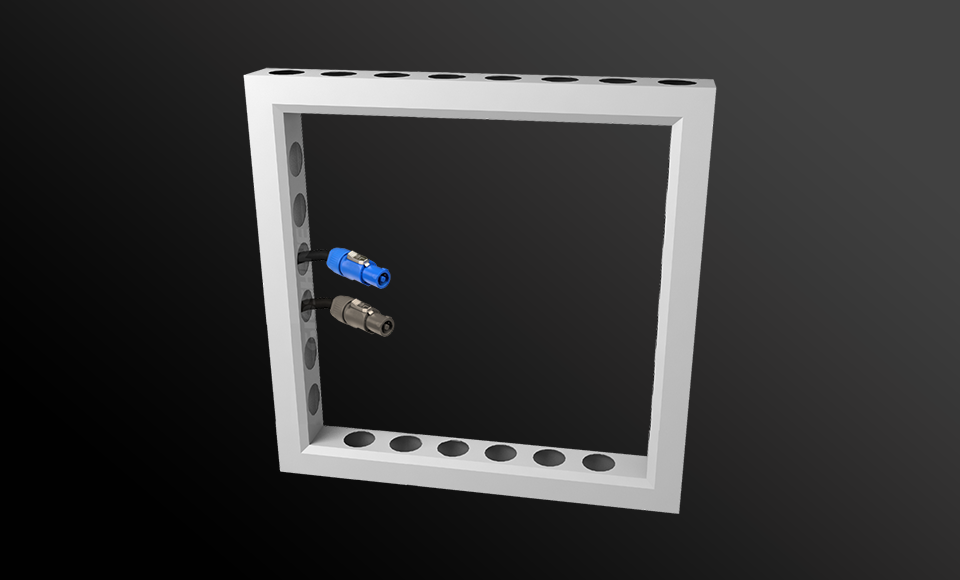

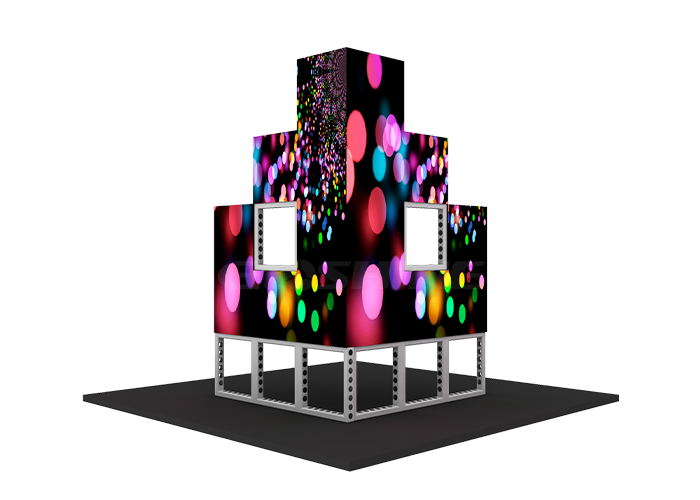

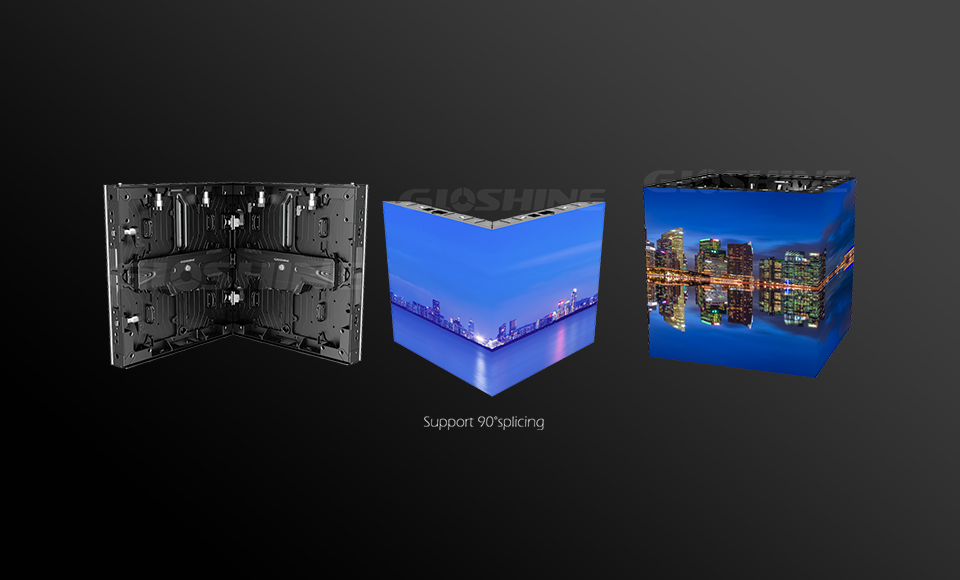

Can be used for right-angle splicing and cubic column splicing.

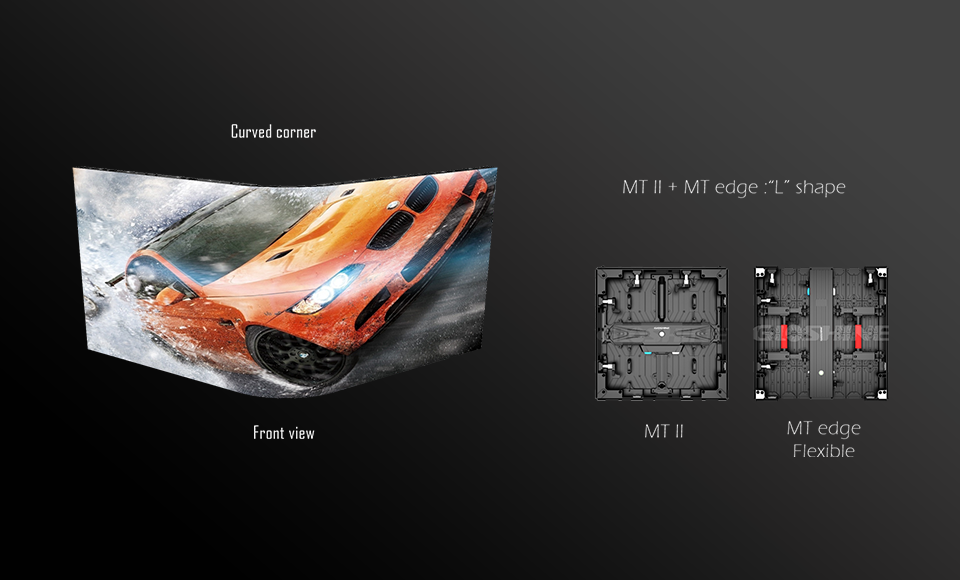

MT II + MT edge :“L” shape

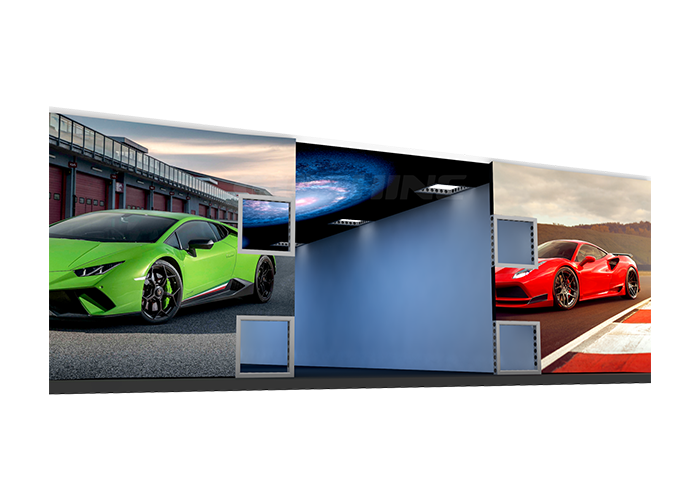

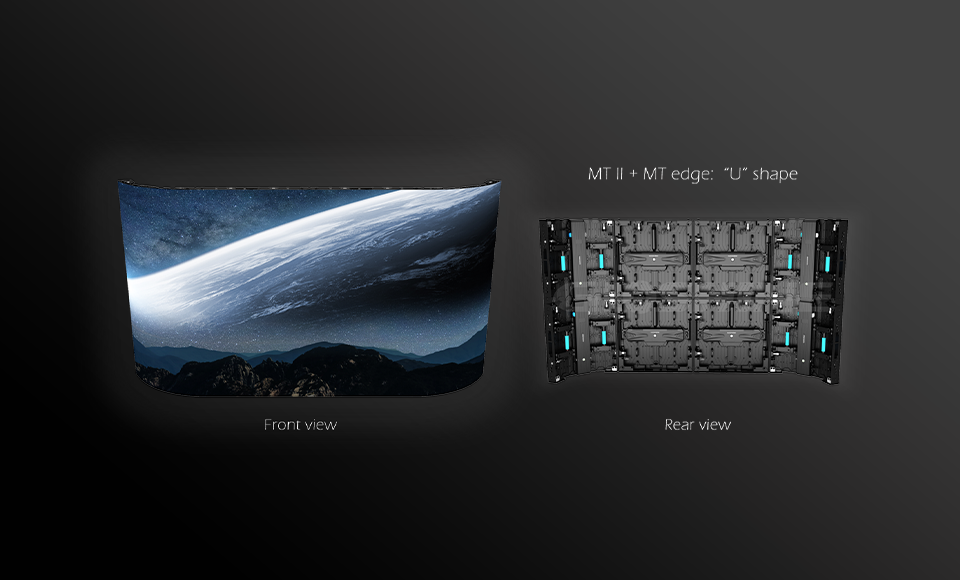

MT II + MT edge: “U” shape
| Model No. | MTⅡ2.3(Indoor) | MTⅡ2.8(Indoor) |
| Pixel Pitch | 2.3mm | 2.8mm |
| LED Type | SMD1515 | SMD2020 |
| Pixel Density | 175858pixel/m² | 125910pixel/m² |
| Brightness | 500-800nits | 800-1000nits |
| Color Temperature | 6500-9500K | |

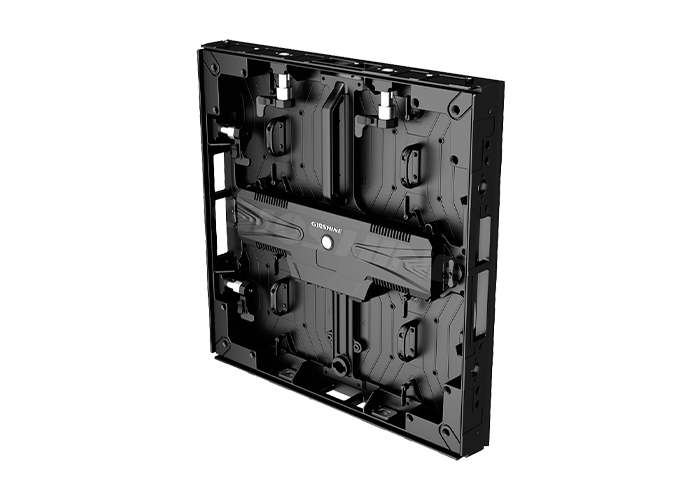

| Panel Dimension(W*H*D) | 496*496*62mm/19.5"x19.5"x2.4" | |
| Panel Resolution | 208*208pixel | 176*176pixel |
| Panel Weight | 9.0kg(±10%)/19.84lb(±10%) | |
| Cabinet Material | Die-Casting Cabinet | |
| Max Power Consumption | ≤650w/m² | |
| Ave Power Consumption | ≤325w/m² | |
| Viewing Angle | H:160° V:140° | |
| Refresh Rate | 3840Hz | |
| Gray Scale | 14-16bit | |
| IP Rating | IP30 | |
| Max Stacking/Hanging | 10m | |
| Lifetime | 50000h | |
| Operating Temp/Humidity | -20℃-+45℃；10%-60%RH | |
| Storage Temp/Humidity | -40℃-+60℃；10%-60%RH | |
