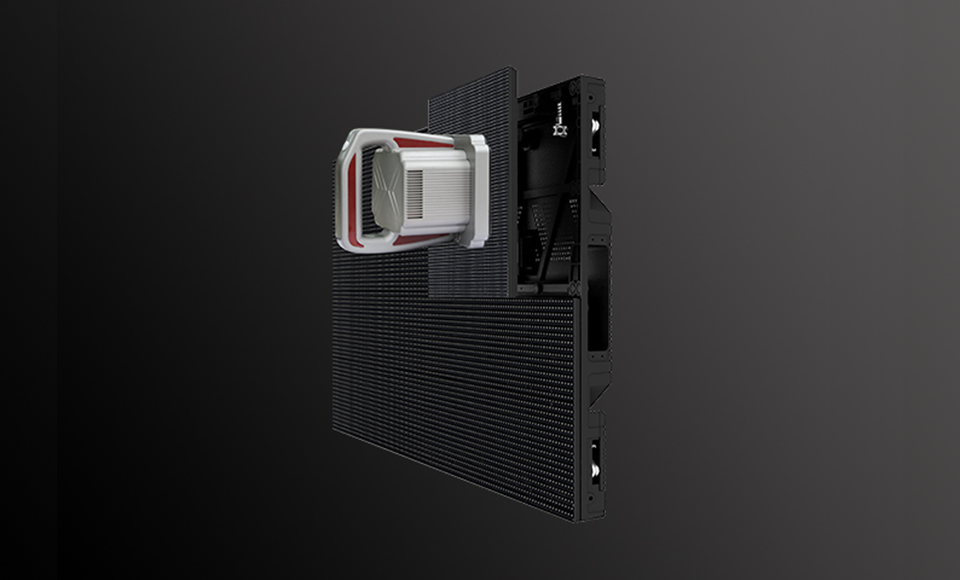

To achieve the target of fast maintenance of LED panel,the SR is endowed with the front access,time saving and user-friendly.
| Model No. | SR1.95(Indoor) | SR2.5(Indoor) | SR2.97(Indoor) | SR3.91(Indoor) | SR5.95(Indoor) |
| Plxel Pitch | 1.95mm | 2.50mm | 2.97mm | 3.91mm | 5.95mm |
| LED | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Density | 262144pixel/㎡ | 160000pixel/㎡ | 112896pixel/㎡ | 65536pixel/㎡ | 28224pixel/㎡ |
| Brightness | 800-1000nit | 800-1000nit | 1000-1200nit | 1000-1200nit | 1000-1200nit |
| Color Temperature | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k |
| Panel Dimension(W*H*D) | 1000mm×500mm×50mm | 1000mm×500mm×50mm | 1000mm×500mm×50mm | 1000mm×500mm×50mm | 1000mm×500mm×50mm |
| Panel Resolution | 512*256pixel | 400*200pixel | 336*168pixel | 256*128pixel | 256*128pixel |
| Panel Weight | 15kg/30.07lb | 15kg/30.07lb | 15kg/30.07lb | 15kg/30.07lb | 15kg/30.07lb |
| Max Power Consumption | ≦700w/㎡ | ≦700w/㎡ | ≦650w/㎡ | ≦650w/㎡ | ≦650w/㎡ |
| Ave Power Consumption | ≦350w/㎡ | ≦350w/㎡ | ≦325w/㎡ | ≦325w/㎡ | ≦325w/㎡ |
| Viewing Angle | H:160º V:140º | H:160º V:140º | H:160º V:140º | H:160º V:140º | H:160º V:140º |
| Refresh Rate | 1920HZ/3840HZ | 1920HZ/3840HZ | 1920HZ/3840HZ | 1920HZ/3840HZ | 1920HZ/3840HZ |
| Gray Scale | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 |
| Panel Material | Die-Casting Aluminum+Extrusion Aluminum | Die-Casting Aluminum+Extrusion Aluminum | Die-Casting Aluminum+Extrusion Aluminum | Die-Casting Aluminum+Extrusion Aluminum | Die-Casting Aluminum+Extrusion Aluminum |
| Max. Stacking | 20pcs | 20pcs | 20pcs | 20pcs | 20pcs |
| Max. Hanging | 20pcs | 20pcs | 20pcs | 20pcs | 20pcs |

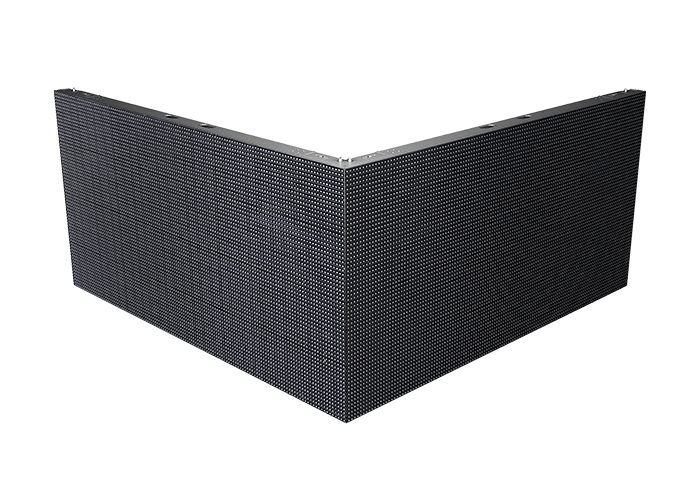

| Curve(Optional) | 0° 90° | 0° 90° | 0° 90° | 0° 90° | 0° 90° |
| Lifetime | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
| Operating Temp/Humidity | -20℃～+45℃；10%-60%RH | -20℃～+45℃；10%-60%RH | -20℃～+45℃；10%-60%RH | -20℃～+45℃；10%-60%RH | -20℃～+45℃；10%-60%RH |
| Storage Temp/Humidity | -40℃～+60℃；10%-60%RH | -40℃～+60℃；10%-60%RH | -40℃～+60℃；10%-60%RH | -40℃～+60℃；10%-60%RH | -40℃～+60℃；10%-60%RH |
